2 x OXY0535-AL
Tail Servo Mout
(Box 1/Bag 9)
Note: don't install any screw
Chapter 6: Tail Assembly
Tail Assembly Step 4
B A

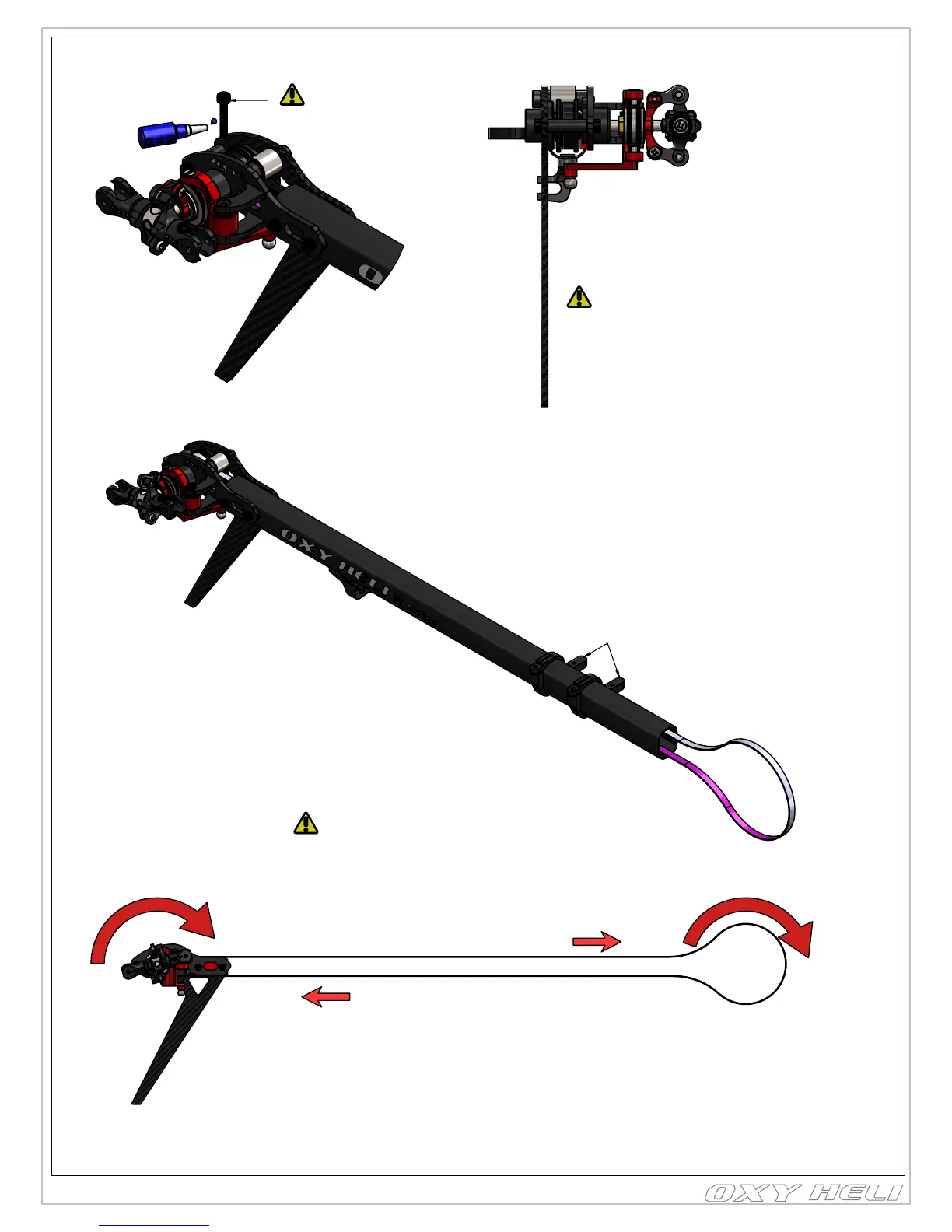

TAIL BELT ASSEMBLY AND DIRECTION CHEK:
In order to check correct belt install,
move belt position A CW and
the position B must rotate CW.
Before go forward on Tail Assembly check carefully
if Belt is installed per need.
Belt MUST move without any friction.
page 12
M1.6x10 Hex Cap Screw,
do not over tighten the Screw
Important Note:
Once assembly finish, check if the system can slide
and move without friction.
If tail system is assembled correctly, it should move
smoothly. In case of friction or extra play,
recheck each single component and re-assembly as
required.
To Next Page
