Oxy Heli oxy2 - Tcem1.6 X5

5
7
6
8
3
13
15
4
16
9
2
17
12
14
11
1
10

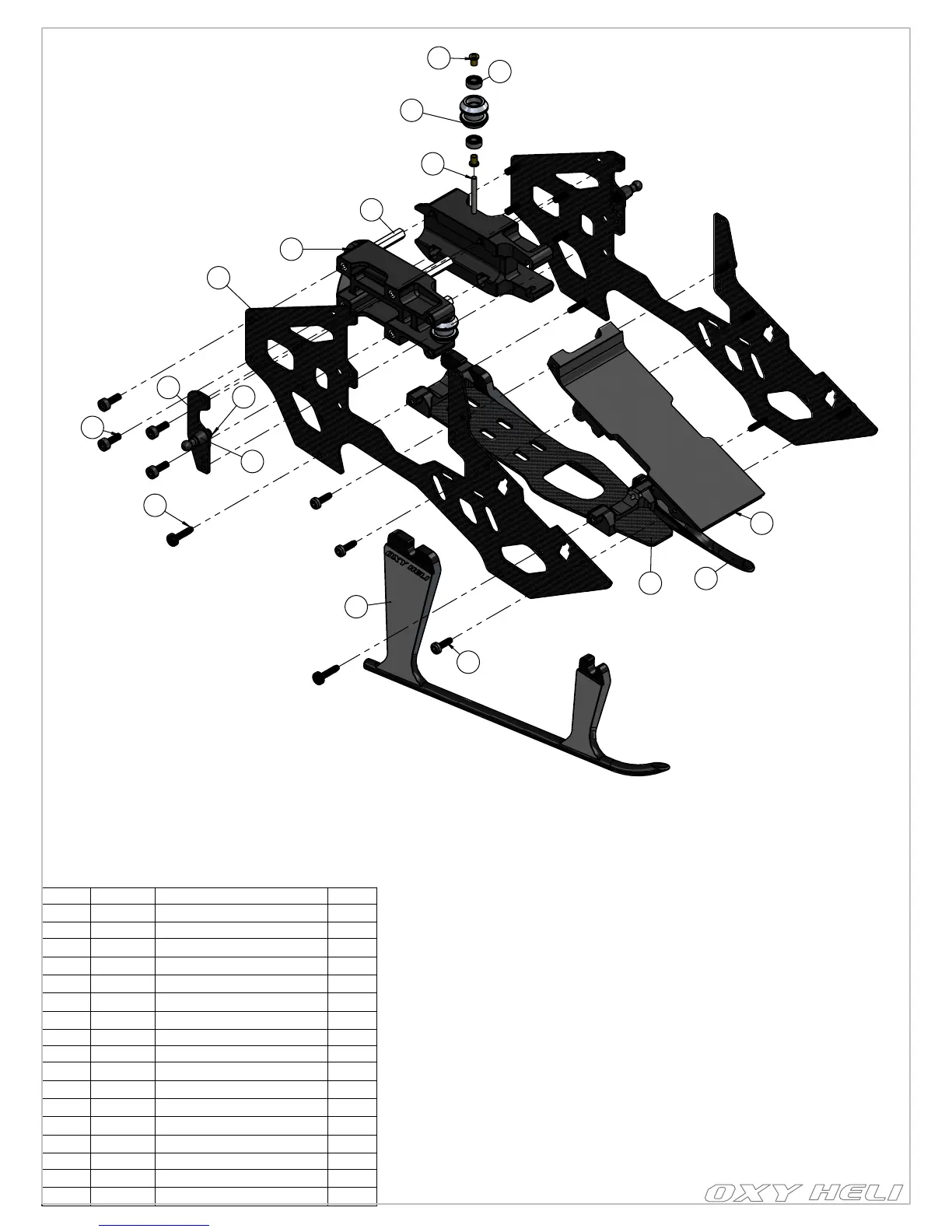

Chapter20: Exploded View, Main Frame
page 36
Pos. Code Name QTY.
1 OXY0461 Break Away Canopy 2
2 OXY0263 OXY2-Main Frame 2
3 OXY0300 OXY2- Battery Tray 1
4 OXY0452 OXY2-Boom Clamp 2
5 OXY0242 OXY2-Pulley Guide Belt 2
6 MR52-W2 2X5X2 Radial Bearing 4
7 OXY0460 OXY2 Bell Crank Bushing 4
8 OXY0532 1.6x13.8mm Pin 2
9 OXY0453 Boom Lock Rod 4
10 OXY0237 OXY2-Bottom Landing Gear 1
11 OXY0240 OXY2-Right Landing Gear 1
12 OXY241 OXY2-Left Landing Gear 1
13 TBES2X8 M2X8 Self Tapping Screw 4
14 TBES2X6 M2X6 Self Tapping Screw 6
15 TCEM2X6 M2X6HEX CAP SCREW 8
16 OXY0260 Canopy Mount 2
17 TCEM1.6X5 M1.6X5 Hex Cap Screw 2
