Oxy Heli oxy2 - Oxy0454 23 Oxy0521; Smr682 Z-Zz

10
28
26
17
16
32
21
20
11
30
24
22
23
25
18
14
2
9
27
34
3
6
5
31
29
1
3
4
19
38
42
43
41
40
45
45
44
39
page 37

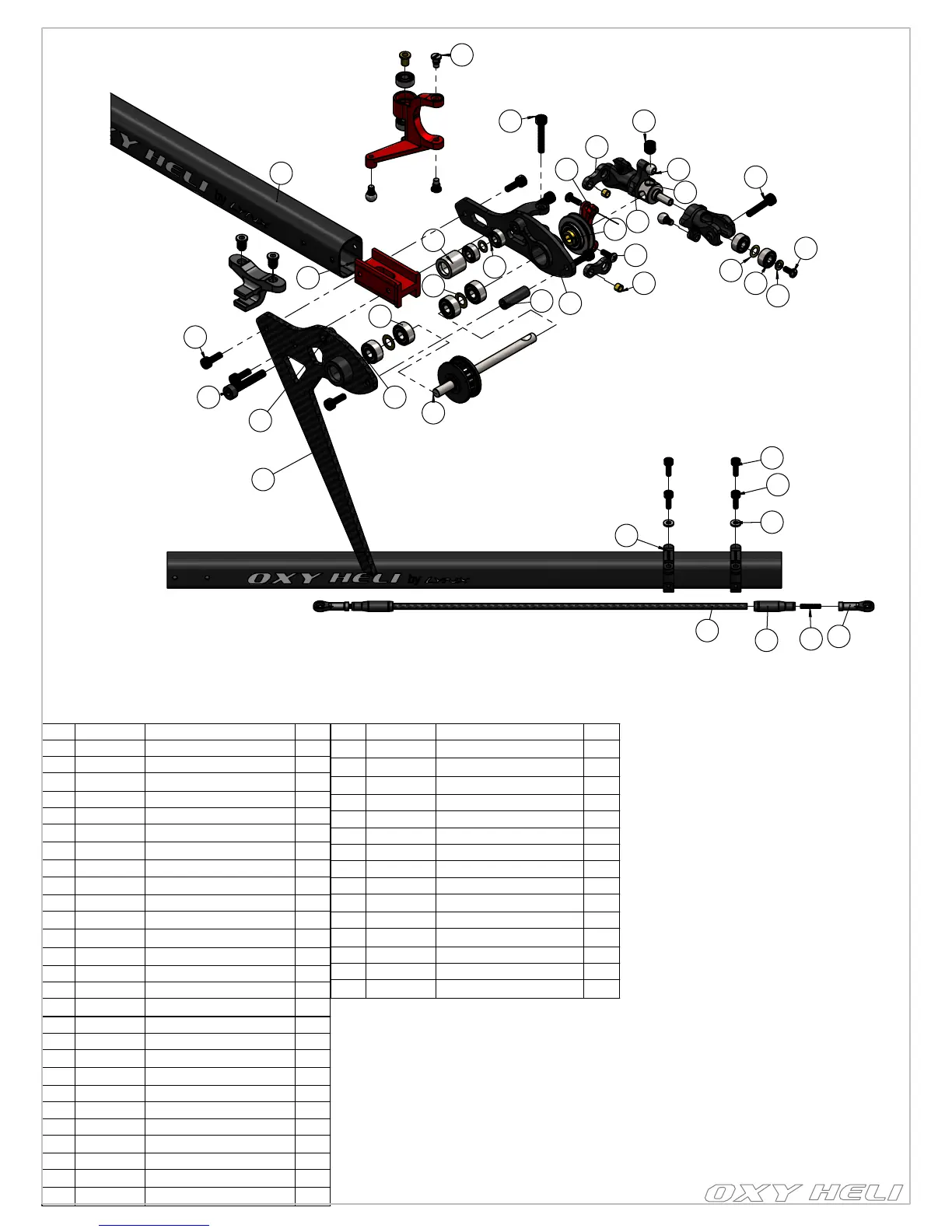

Chapter20: Exploded View, Tail System
POS Code Name QTY.
1 OXY0578 OXY2 Tail Boom STD ( Black ) 1
2 OXY0543 OXY2-Al Tail Case 1
3 SMR682Z-ZZ 2.5X6X2.6 Radial Bearing 4
4 OXY0524 2.55x4.5x0.1 Shim 2
5 OXY0258 OXY2-Tail Case Center 1
6 OXY0516 2x3.5x2.2 Bushing 1
7 OXY0279 OXY2-Vertical Fin Bushing 1
8 OXY0252 OXY2-AL Tail Bell Crank 1
9 MR52-W2 2X5X2 Radial Bearing 4
10 OXY0448 OXY2-Bell Crank Pin Screw 2
11 OXY0521 Linkage ball 3x1.5mm - DR1265 3
12 OXY0460 OXY2 Bell Crank Bushing 2
13 OXY0457 OXY2-Tail Pitch Slider Bushing 1
16 OXY0255 OXY2-Tail Pitch Slider 1
17 OXY0522 OXY2-Link Control 2
18 OXY0523 OXY2-Link Control Buhing 2
19 PanM1.4x4 M1.4x4 Pan Head Screw 2
20 OXY0253 OXY2-Tail Hub 1
21 OXY0537 OXY2-AL Tail Grip 2
22 SMR682-ZZ 2X5X2.3 Radial Bearing 4
23 PanM1.4x3 M1.4x3 Pan Head Screw 2
24 OXY0527 2x3.5x0.1 Shim 3
25 OXY0551 1.5x2.8H0.4 Washer 2
26 TCEM1.6X10 M1.6X10 Hex Cap Screw 1
27 OXY0540 OXY2-Tail Case Rod 1
28 OXY0515 OXY2-Tensioner Bushing 1
29 TCEM1.6X5 M1.6X5 Hex Cap Screw 6
POS
Code
Name QTY.
29 TCEM1.6X5 M1.6X5 Hex Cap Screw 6
30 TCEM1.6x8 M1.6x8 Hex Cap Screw 2
31 TCEM2X12 M2X12 Hex Cap Screw 1
32 SCM3x3 Set Screw M3x3 1
33
OXY0256
Tail Shaft 15T 1
34 OXY0067 Guide Push Rod 1
35 OXY0539 M2.5 Pin Screw 2
36 OXY0257 OXY2-Vertical Fin 1
39
OXY0535
Tail Servo Mount 2
40
OXY0584
std tail push Carbon Rod 1
41
OXY0536
OXY2-Al Tail Push Rod Terminal 2
42
OXY0526
Plastic Linkage Ball 3mm 2
43
OXY0519
Threaded Rod M1.4X7mm 2
44
OXY0525
1.6x3.5x0.5 Washer 2
45
TCEM1.6X5
M1.6X5 Hex Cap Screw 4
