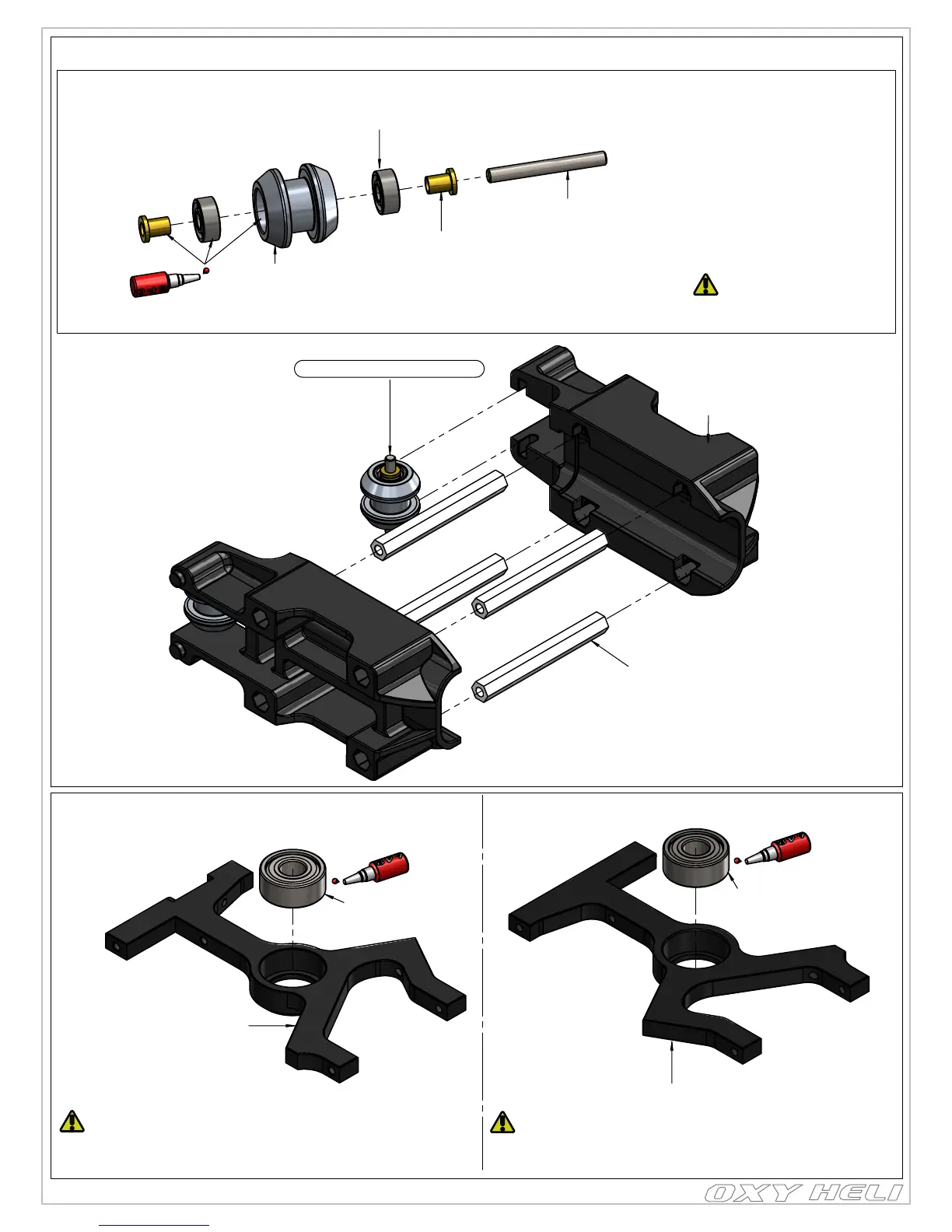

Oxy Heli oxy2 - Main Frame Assembly

Pulley Guide Belt Assembly
2 x OXY0460 - Bell
Crank Bushing
OXY0532-
1.6X13.8 Pin
2 x MR52-W2-2X5X2
Radial Bearing
OXY0242-Pulley
Guide Belt
2 x Pulley Guide Belt Assembly
2 x OXY0452-
Boom Clamp
4 x OXY0453 - Boom
Lock Rod
Important Note:
The Radials Bearing come
factory pre assembled with
Loctite. It is ready to use.
MR6700 ZZC-10X15W4
Radial Bearing
MR6700 ZZC-10X15W4
Radial Bearing
OXY0235-Upper Main
Shaft Breaing Block
OXY0236-Lower Main
Shaft Breaing Block
Important Note:
this part, for tuning reasons,
comes factory pre assembled,
it ready to use
Boom Clamp Assembly
(Box 2/Bag 1)
Important Note:
The Radials Bearing come
factory pre assembled with
Loctite. It is ready to use.
Upper Main Shaft
Bearing Block Assembly
(Box 1-1/Bag 1)
Lower Main Shaft
Bearing Block Assembly
(Box 1-1/Bag 2)
Install the Pins into the Pulley
Guides and press completely into
the Tail Boom Clamp Socket Lips.
Chapter 7: Main Frame Assembly
page 14
