Oxy Heli oxy2 - Important Notes

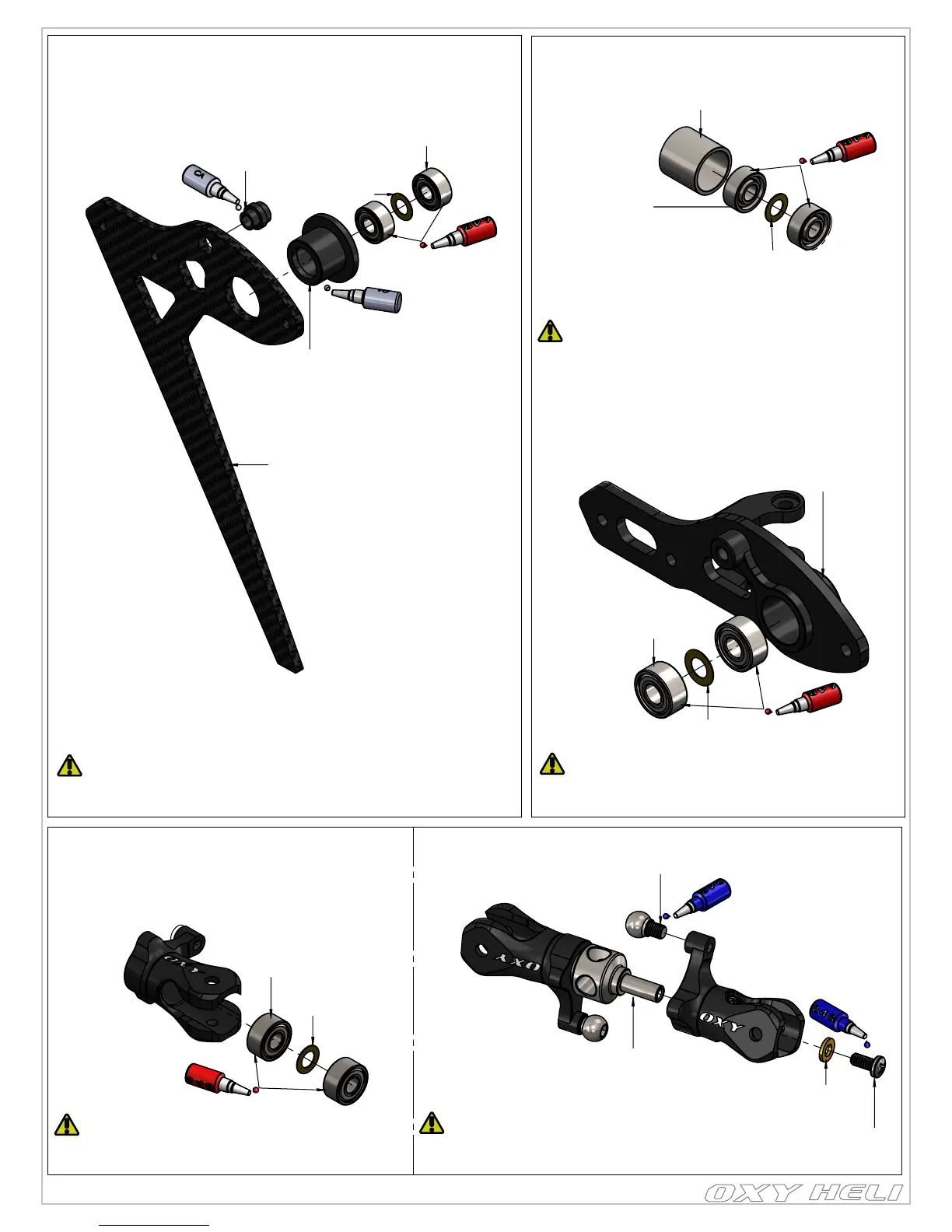

Chapter 6: Tail Assembly
OXY0516 - Tensioner Spacer
OXY0279-Vertical Fin
Bearing Bushing
2 x SMR682Z-ZZ-
2.5X6X2.6 Radial Bearing
OXY0524-
2.55x4.5x0.1 Shim
OXY0515-
Tensioner Bushing
2 x MR52-W2
2X5X2 Radial Bearing
2 x SMR682Z-ZZ-
2.5X6X2.6 Radial Bearing
OXY0524-2.55x4.5x0.1 Shim
OXY0543-Al Tail Case
OXY0527-
2x3.5x0.1 Shim
Tail Case Assembly
(Box 1/Bag 2)
2 x SMR682-ZZ-
2X5X2.3 Radial Bearing
OXY0524-
2.55x4.5x0.1 Shim
OXY0253-Tail Hub
2 x OXY0551-1.5x2.8 H0.4 Washer
2 x M1.4x3 Pan Head Screw
OXY0521-Linkage Ball
Vertical Fin Assembly
(Box 1/Bag 1)
Important Note:
This part comes pre assembled
WITHOUT thread lock. It MUST be
re-assembled with thread lock as shown.
Tail Rotor Assembly
(Box 1/Bag 3)
OXY0257-Vertical Fin
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it ready to use
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it ready to use
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it ready to use
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it ready to use
page 8
