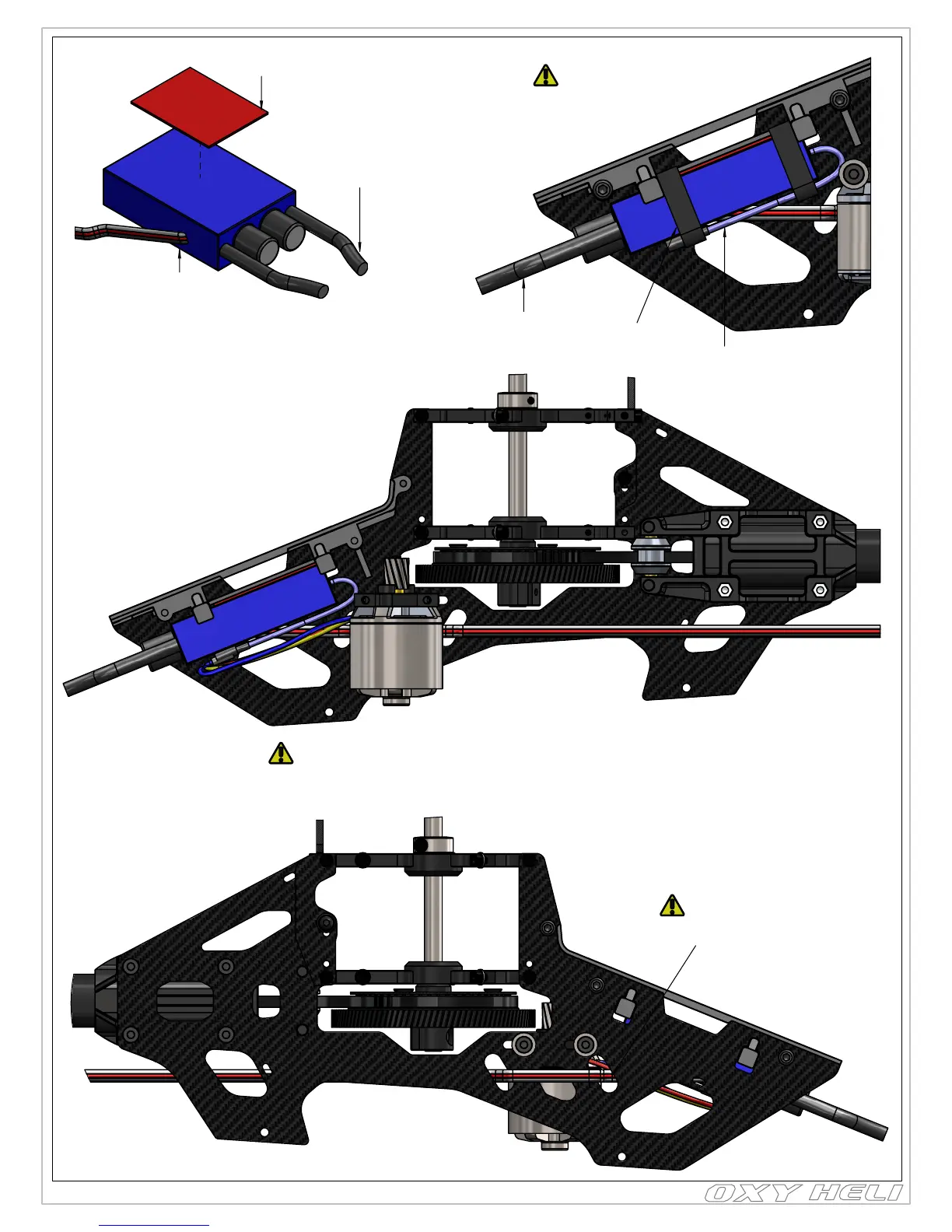

Battery wires
Motor wires
Double - side Tape
(Box 2/Bag 4)
ESC
Use 3 x cable ties, to secure the Throttle ESC wire to the main frame. Use the Frame
built-in socket for best holding. In this Step connect the Motor and ESC Wires but don't
secure yet. Wait till the final motor rotation check, once the FBL system is set up.
NOTE: To reverse Motor rotation direction , just switch 2 of the 3 wires.
page 26
Be carefully Motor wire
and ESC will not touch
Motor/Pinion.
2 x Cable Tie
CF may have sharp edges:
file accurately where wiring
pass by, and/or protect
wiring adequately.
use your choice of
connector rated
Chapter 12: ESC Installation
