4
1
2
17
19
6
12
13
14
3
10
7
9
16
18
20
28
8
page 35

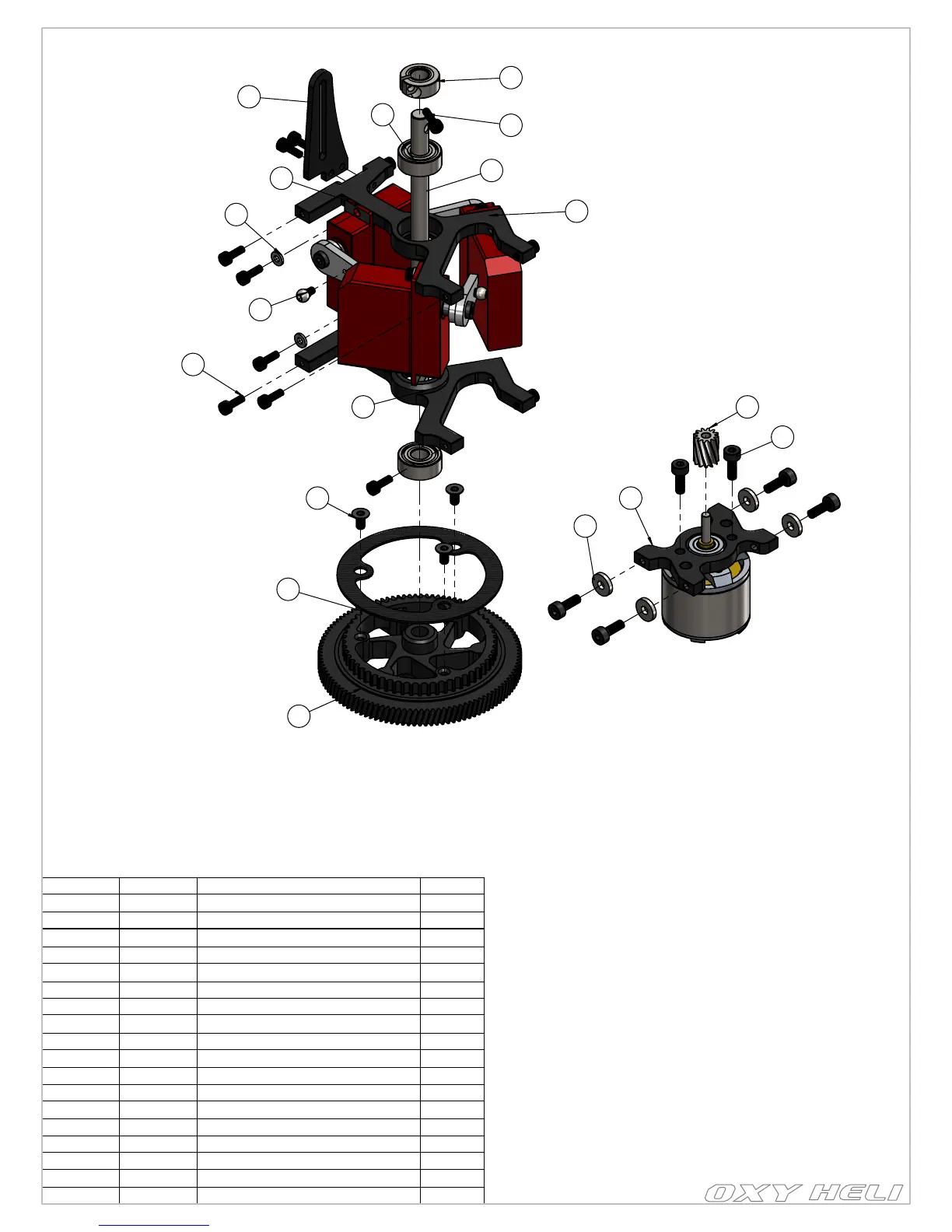

Chapter20: Exploded View, Main Frame
POS
Code
Name
QTY.
1
OXY0235
Upper Main Shaft Bearing Block
1
2
MR104_ZZC
4X10X4 RADIAL BEARING
2
3
OXY0236
Lower Main Shaft Bearing Block
1
4
OXY0251
OXY2-Anti Rotaion Guide
1
7
OXY0521
Linkage ball 3x1.5mm - DR1265
3
8
TCEM2X6
M2X6HEX CAP SCREW
9
9
OXY0525
1.6x3.5x0.5 Washer
6
10
TCEM1.6X5 M1.6X5 Hex Cap Screw
16
11
OXY0263
OXY2-Main Frame
1
12
OXY0533
OXY2-Main Gear 55t Pulley
1
13
OXY0538
CF Main Gear Cover
1
14
FHSM2X4
M2x4 Flat Head Screw
3
15
OXY0247
OXY2-Main Gear Bushing
1
16
OXY0459
OXY2-Main Shaft
1
17
OXY0451
OXY2-Main Shaft Collar
1
18
OXY0081
2.1X5.5X1 WASHER
4
19
TCEM1.6X6
M1.6x6 Hex Cap Screw
1
28
OXY0547
Pinion 12T - 2mm Motor Shaft
1
