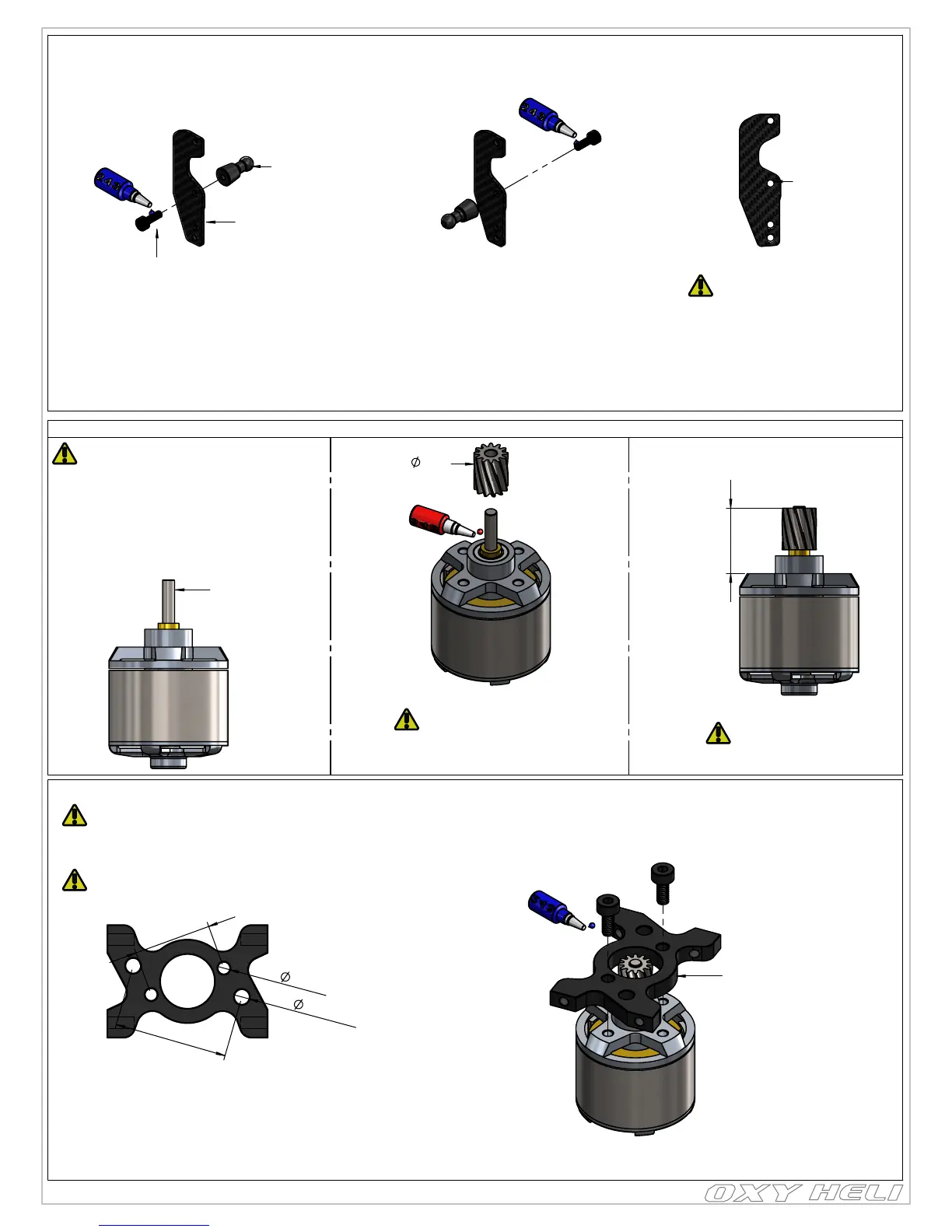

Oxy Heli oxy2 - Page 15

REF 11mm
2.50mm
2mm
19mm
13mm
OXY0260-
Canopy Mount
Right Canopy
Mount Assembly
Left Canopy
Mount Assembly
OXY0461 - Break
Away Canopy support
mount
M1.6x4 Hex
Cap Screw
Kit Pionion
11T ID
2mm
(Box 1-1/Bag 4)
OXY0238-
Motor Mount
(Box 1-1/Bag 4)
OXY2 support two size of motor fitting
(13mm/M2 and 19mm/M2.5),
choose the correct holes
dependig on the used Motor.
Canopy Mount Assembly
(Box 1-1/Bag 3)
Motor Pinion Installaion
Motor Installation
Use Hex Cap Screw M2x5 for 13mm holes
Use Button Head Screw M2.5x5 for 19mm holes
Chapter 7: Main Frame Assembly
Position A
Important Note:
Install Canopy Pin into
Position A as shown
Note: Output Motor Shaft
prepareration:
because OXY2 pinion have bonding
assembly follow below step for best results.
1- Sand Paper output shaft.
2- Use bonding compound
(Loctite 648 or Lynx LX5648).
Don't use STD lock thread.
3- After Install wait at least 10h before fly.
after install wait
until 10h before fly
Use bonding compound
loctite 648 or LX5648,
don't use standard loctite
page 15
Output Shaft
to prepare
