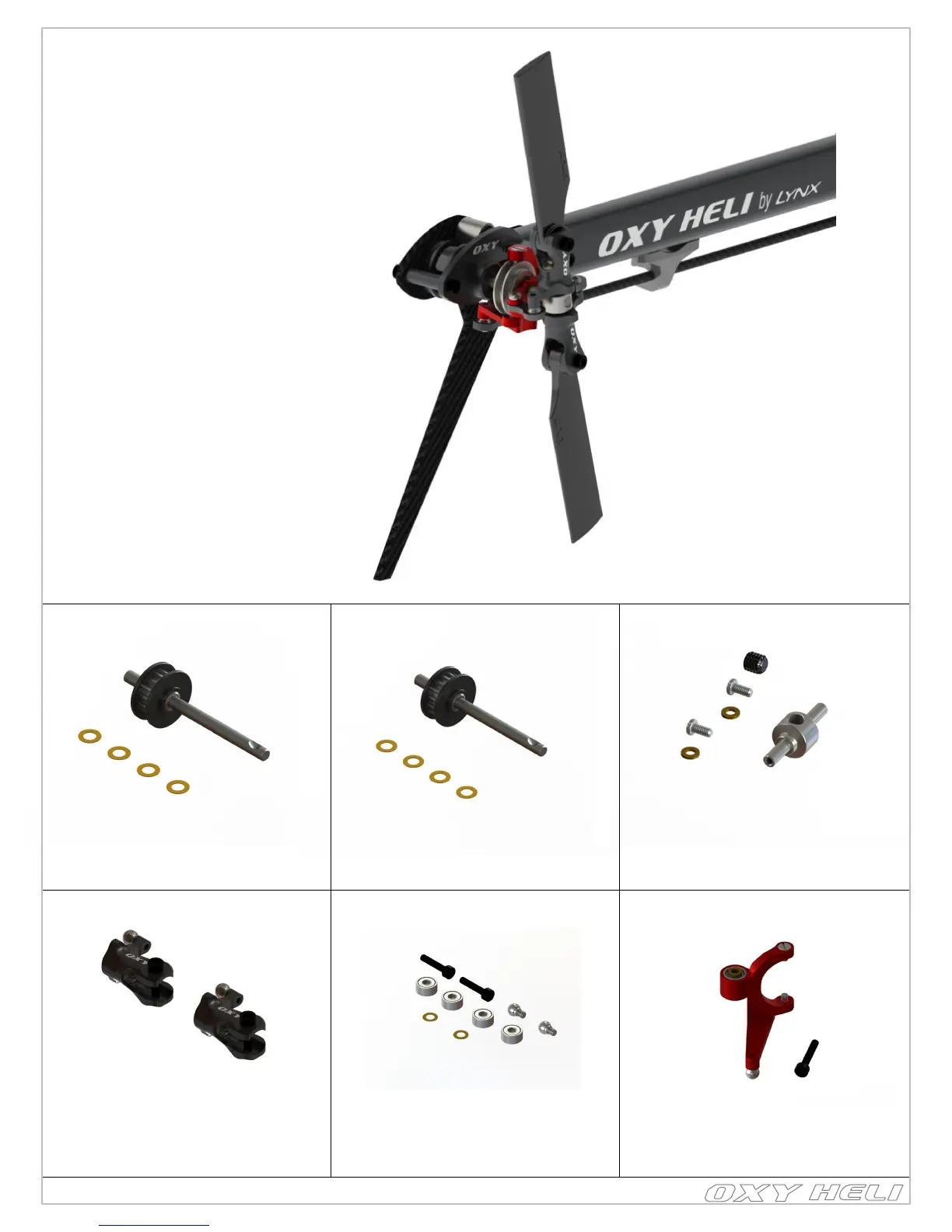

SP-OXY2-029 - OXY2 -
Tail Shaft 15T
1 x OXY2-Tail Shaft
1 x 15T Tail Pulley
2 x OXY2-Tail Flange Pulley
4 x 2.55x4.5x0.1 Shim
SP-OXY2-030 - OXY2 -
Tail Shaft 16T
1 x OXY2-Tail Shaft
1 x 16T Tail Pulley
2 x OXY2-Tail Flange Pulley
4 x 2.55x4.5x0.1 Shim
SP-OXY2-031 - OXY2 -
Tail Rotor Hub, Spare
1 x OXY2-Tail Hub
2 x M1.4x3 Pan Head Screw
2 x 1.5x2.8H0.4 Washer
1 x Set Screw M3x3
SP-OXY2-032 - OXY2 -
CNC Aluminum Tail Grip, Set
2 x OXY2-AL Tail Grip
4 x 2X5X2.3 Radial Bearing
2 x 2x3.5x0.1 Shim
2 x Linkage ball 3x1.5mm
2 x M1.6x8 Hex Cap Screw
SP-OXY2-033 - OXY2 -
Tail Rotor - Service Bag
4 x 2X5X2.3 Radial Bearing
2 x 2x3.5x0.1 Shim
2 x Linkage ball 3x1.5mm
2 x M1.6x8 Hex Cap Screw
SP-OXY2-034 - OXY2 -
CNC Aluminum Tail Bell Crank
1 x OXY2-AL Tail Bell Crank
2 x 2X5X2 Radial Bearing
2 x OXY2-Bell Crank Pin Screw
1 x Linkage ball 3x1.5mm
2 x OXY2 Bell Crank Bushing
1 x M1.6X10 Hex Cap Screw
