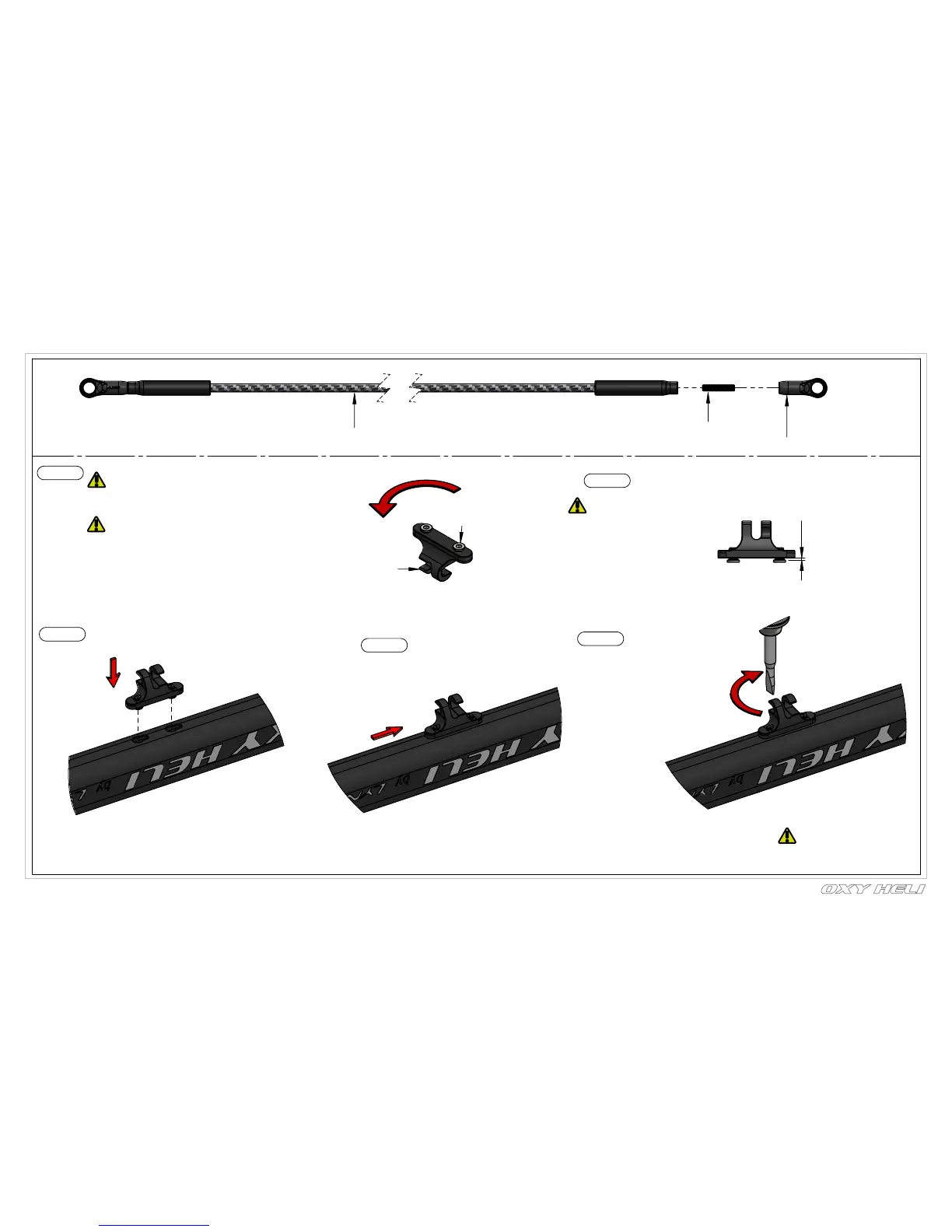

Chapter 6: Tail Assembly
OXY0357-STD Carbon Rod
OXY0666-OXY4 SST Threaded Rod M2X10
OXY0716-linkage Ball M2 thread
Note: to install this
pin screw rotate
counter clock wire
OXY0620-Guide
Push Rod
2 x OXY0539-
Pin Screw
Note Pin Screw Thread:
Oxy designed the Pin Screw with
a counter clockwise thread. This
will help on the final locking
operation. Be careful to follow our
instructions to get a perfect assembly
Note: Install the Pin Screw
and leavea gap as shown.
Step 2:
Step 1:
page 10
Important Note:
This part, for tuning reasons,
comes factory pre assembly,
it ready to use
Push the part inside the
boom sockets as shown
Step 3:
Step 4:
Slide the parts as shown
In order to lock the tail push rod
support, use a Flat Screw Driver
and turn clockwise. Do not
over tighten.
Step 5:
To Next Page
