oxycom IntrCooll Std. - Step 4. Flow Regulator Cap

Install the IntrCooll®
Version 1.3, 2021-12-14 45
1
2
3
4
5

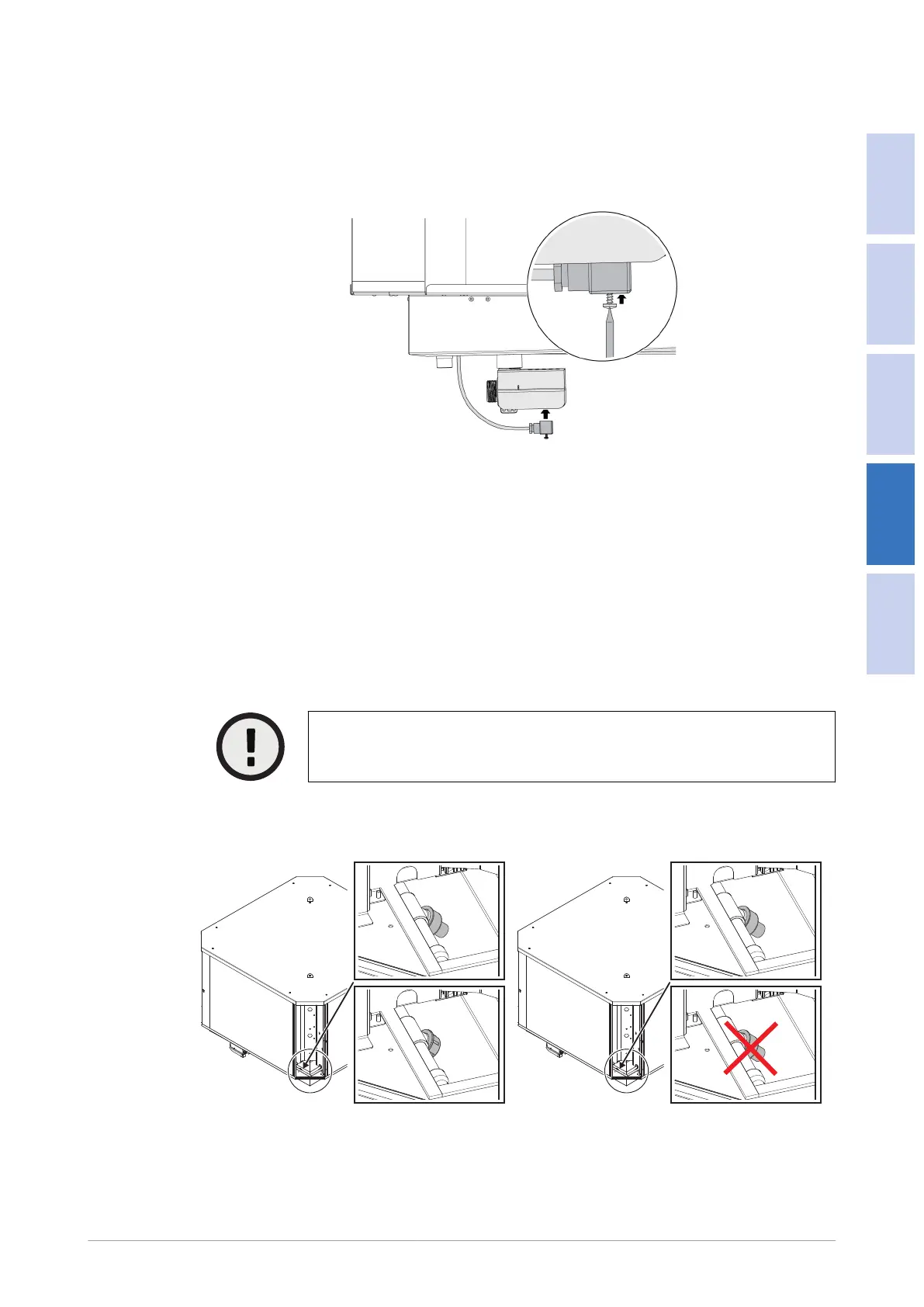

5. Connect the power supply connector for the drain valve to the drain valve.
6. Lock the connector in place with the pre-mounted screw.
4.5 Step 4. Flow regulator cap
The ring tube assembly is linked to the pump. There is a dierence between the
amount of water the pump delivers at 50 Hz or 60 Hz.
Because of this it is necessary to mount the correct ow regulator cap. Standard
the 50 Hz version is mounted. The 60 Hz version is strapped near the mounting
position.
Exchange the regulator cap if necessary.
Caution
On the IntrCooll® Plus 60 Hz version, the ow regulator cap must be completely
removed / not mounted.
Flow regulator cap positioning and types
IntrCooll® Plus
IntrCooll® Std.
50 Hz
60 Hz
50 Hz
60 Hz
