GENERAL INFORMATION
39. SCROLL DOWN KEY - Decreases the Set Tip Temperature (in TIP SET Mode) and Tip
Temperature Offset Constant (in TIP OFFSET Mode) in one, then ten degree increments. Also used
in “CAL” (Calibration) Mode.
40. EARTH GROUND RECEPTACLE - Provides positive earth ground to which a ground cable can be
connected from the workpiece or work surface as part of a static control program.

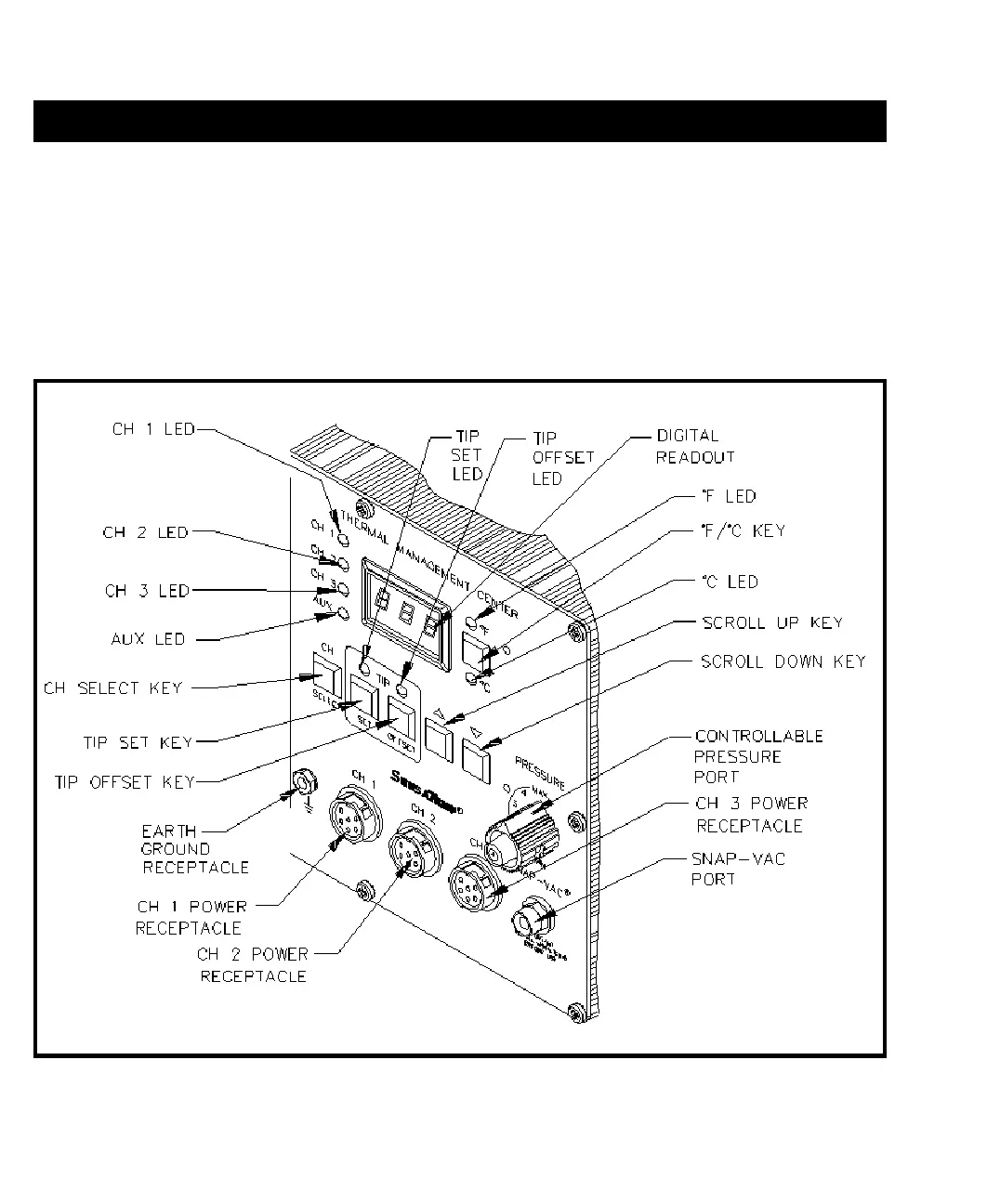

Figure 6. Thermal Management Center Parts I.D.
