12
CONNECTING THE EQUIPMENT (cont.)
S-VIDEO
ETHERNET
VIDEO OUT
Pr
Pb
Y
COMPONENT VIDEO
TV PASS MODULE
TO TV
CABLE IN
AUDIO
OUT
DIGIT A L
AUDIO OUT
OPTICAL
AUDIO OUT
IR RECEIVE
IR TRANSMIT
POWER OUTLET FOR TV ONLY
120V AC 60Hz 4.2A MAX.
POWER INPUT
120V AC 60Hz
DOUBLE INSULATED
L
R
+5V DC
500mA max.
SATA
ANTENNA/
RF IN
TV / RF
OUT
ANTENNA/
RF IN
LEFT
AUDIO IN
RIGHT
AUDIO IN
VIDEO IN
LEFT
AUDIO IN
RIGHT
AUDIO IN
VIDEO IN
POWER
LEFT
AUDIO OUT
RIGHT
AUDIO OUT
VIDEO OUT
CABLE INPUT
HDTV
VC R
DVD
LEFT
AUDIO IN
VCR IN
RIGHT
AUDIO IN
VIDEO IN
PB/CB
PR/CR
Y
COMPONENT
VIDEO OUT
HOME THEATER RECEIVER
OPTICAL
AUDIO IN
COAXIAL
AUDIO IN
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
OPTICAL COAXIAL
PB/CB IN
PR/CR IN
Y IN
COMPONENT
VIDEO IN
POWER
POWER
POWER
HDMI
WA LL AC OUTLET
WA LL AC
OUTLETS

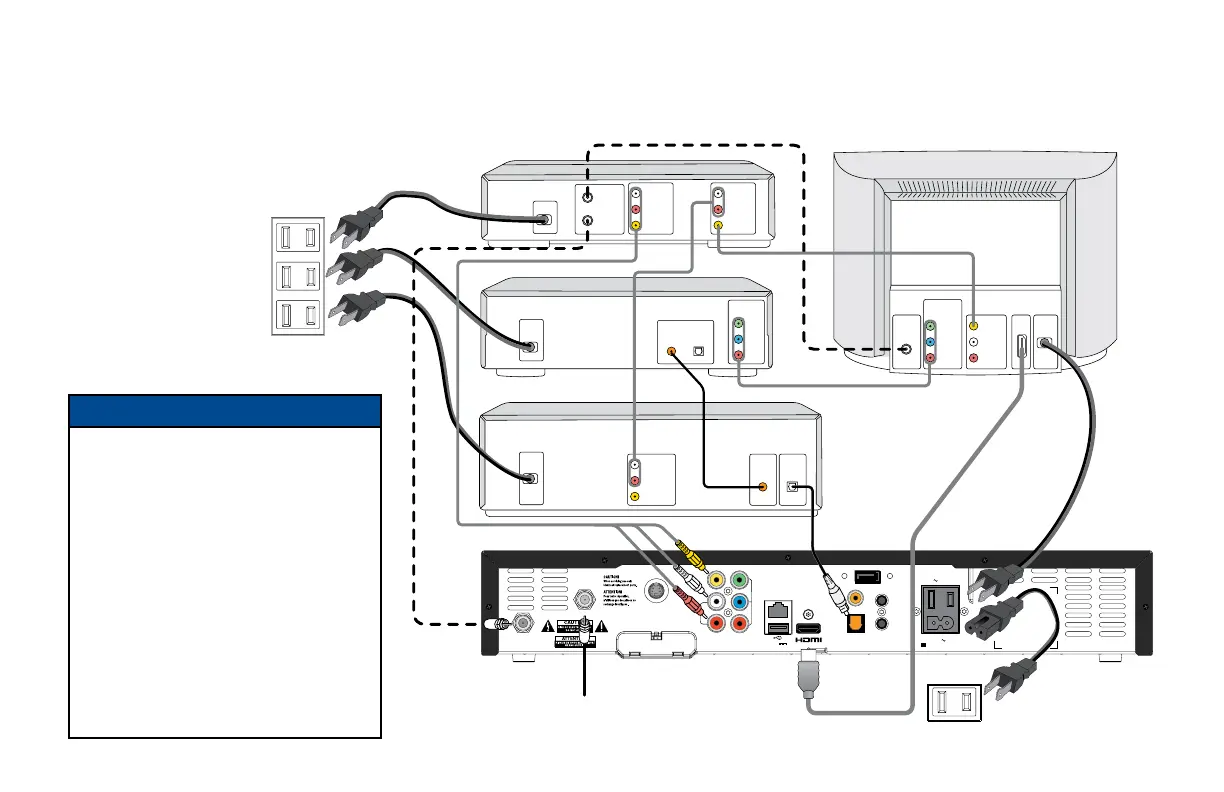

Setup A: (HDMI)
NOTE
This diagram shows a video path from
the set-top to a VCR to allow recording
by the VCR. It shows a video path from
the VCR to the TV to allow playback of
videos. Video signals fed through a VCR
may be affected by copyright protection
systems, which can cause picture
distortion on your TV.
Do not, therefore, use a path through a
VCR to watch your set-top programs.
Use the HDMI path or an alternate direct
video path from your set-top to your TV.
Remember to select the correct input on
your TV.
