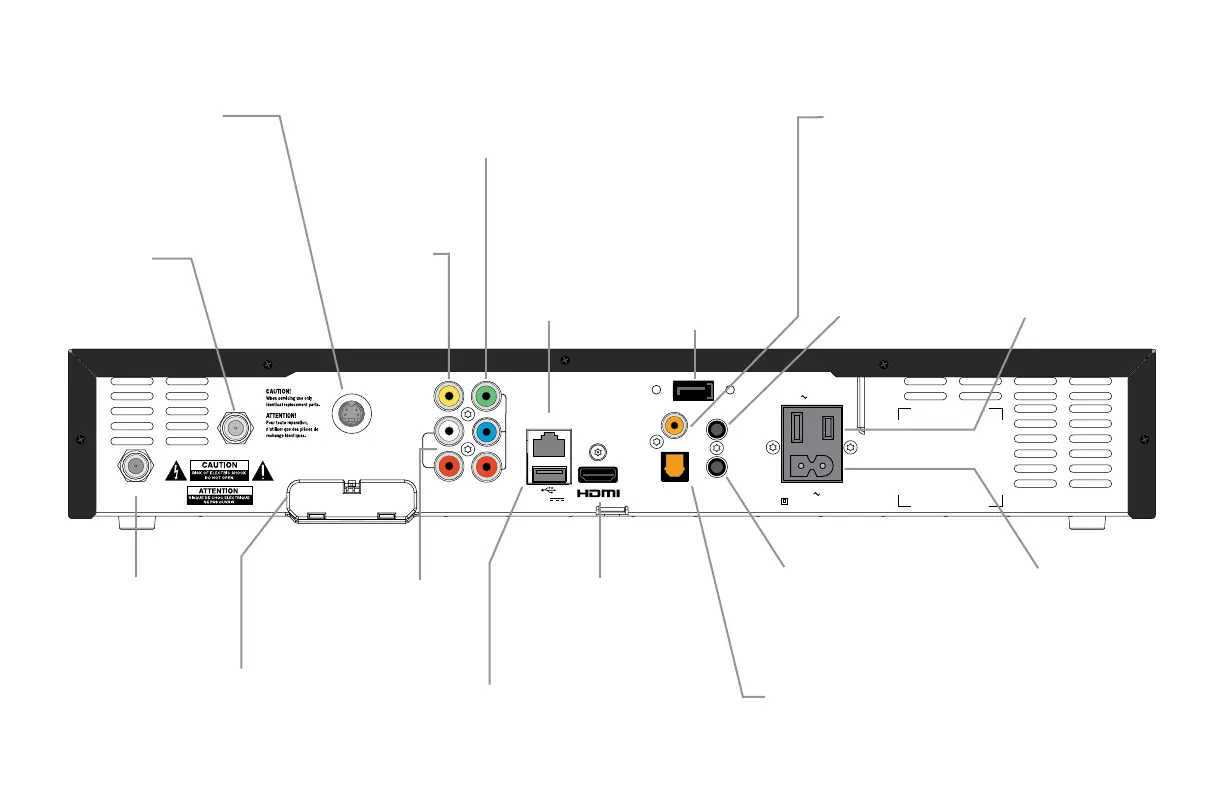

Pace TDC770D - Rear Panel

8
S-VIDEO
ETHERNET
VIDEO OUT
Pr
Pb
Y
COMPONENT VIDEO
TV PASS MODULE
TO TV
CABLE IN
AUDIO
OUT
DIGIT A L
AUDIO OUT
OPTICAL
AUDIO OUT
IR RECEIVE
IR TRANSMIT
POWER OUTLET FOR TV ONLY
120V AC 60Hz 4.2A MAX.
POWER INPUT
120V AC 60Hz
DOUBLE INSULATED
L
R
+5V DC
500mA max.
SAT A
REAR PANEL
COMPONENT VIDEO
Component video output for analog HDTV
AUDIO OUT
Audio outputs
(stereo, L and R)
CABLE IN
From cable
service-provider
TO TV
RF output to the
TV or VCR
S-VIDEO
S-video output
VIDEO OUT
Composite
video output
SATA
For connection
to an optional
external hard
disk
POWER OUTLET
For TV only
(500 W max.)
POWER INPUT
(Make this
connection
last of all)
OPTICAL AUDIO OUT
Optical S/PDIF audio output
ETHERNET
For service
use only
HDMI
Video and audio
output for digital HDTV
USB (Universal Serial Bus)
For future use
IR TRANSMIT
Infra-red output to control a
VCR (for future use)
IR RECEIVE
Infra-red input from
a remote “eye”
DIGITAL AUDIO OUT
Electrical S/PDIF audio output
TV PASS MODULE
Connector for a TV pass
®
module (for installers’ use only)
