3.4 Connecting to the Opto22 Mounting Rack

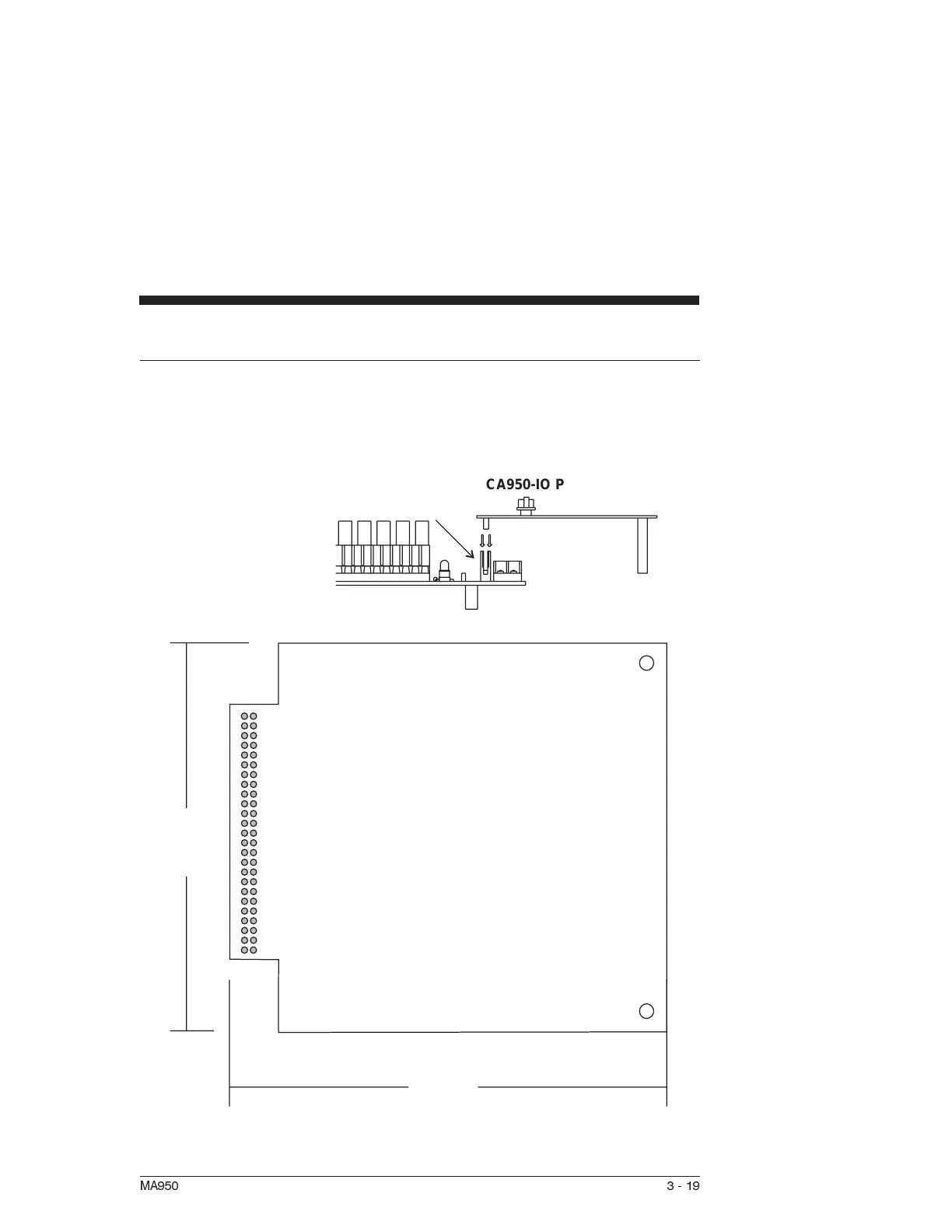

The CA950-IO PC Board allows for easy connections between
the OC950 and optically isolated industrial I/O. The CA950-IO
plugs directly into the 50 pin header of Opto 22’s Generation 4
family of I/O Mounting Racks and other compatible products as
shown below:
MA950 3-19
CA950-IO PC BOARD
TERMINAL STRIP
FOR EXTERNAL
5 VDC SUPPLY
25 PIN D
50 PIN
HEADER
SIDE VIEW
OPTO 22
I/O MOUNTING RACK
4.00"
4.50"
