3.5 PacLAN Cabling & Hardware Connections - J53
Note: PacLAN is only available on the following models:
•
OC950-503-01, OC950-603-01
•
OC950-504-01, OC950-604-01
PacLAN
connections

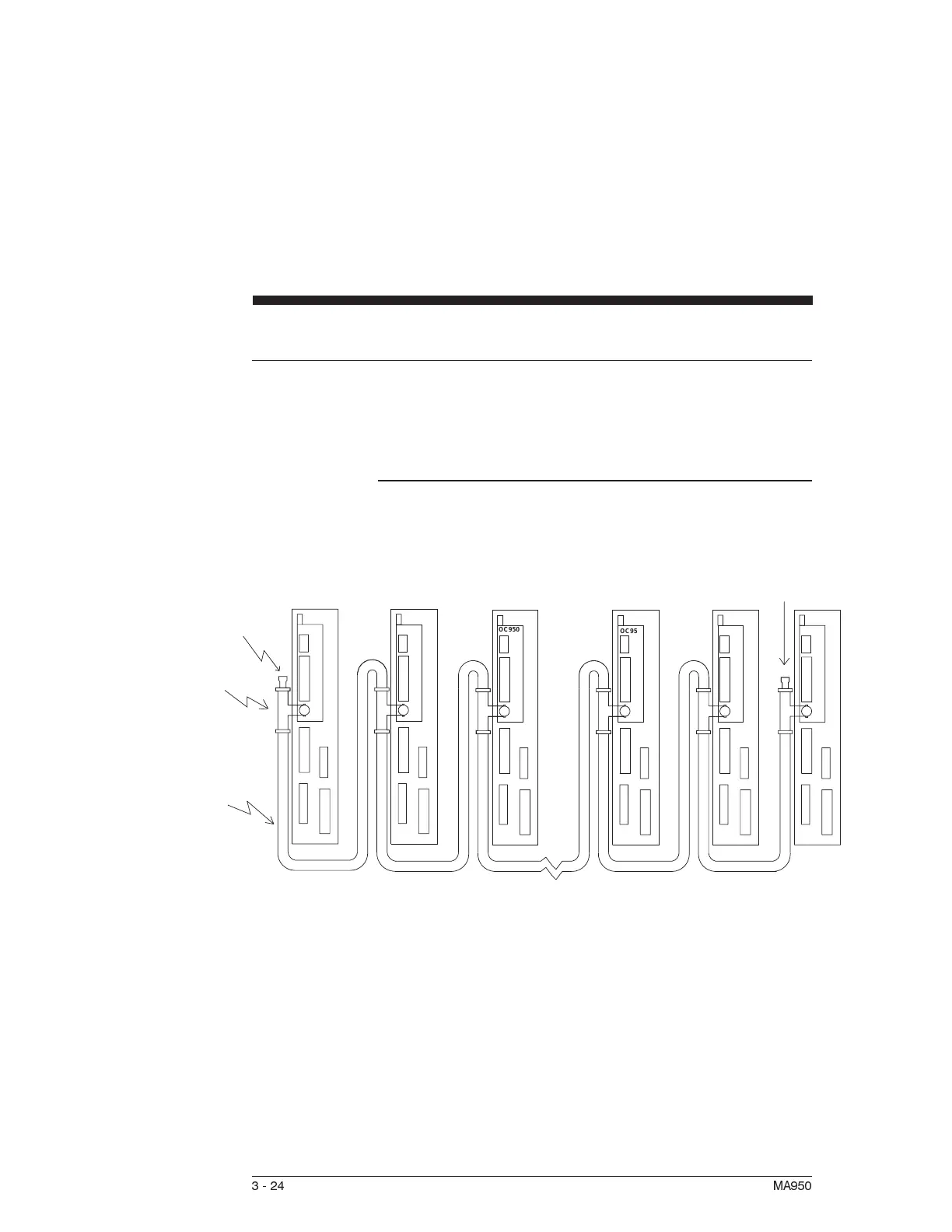

The electrical connections of the PacLAN interface between
SC950 servocontrollers is illustrated in the diagram below.
Cabling for the PacLAN interface must conform to RG62 cabling
specifications.
The most distant trunks of the cable should each be terminated in
93 ohm, 1/2 watt termination resistors. RG62 cable and 93 ohm
terminators are available from Black Box Corporation and South
Hills DataComm.
Note: PacLAN operation will be supported only if the proper
communications cabling is used.
3-24 MA950
OC950
OC950
OC950
OC950
OC950
BNC TEE
RG62U
COAXIAL
CABLE
93
TERMINATOR
Ω
93
TERMINATOR
Ω
J51
J52
J53
J51
J52
J53
J51
J52
J53
J51
J52
J53
J51
J52
J53
J51
J52
J53
OC950
To Next Page
