Section 5
LABELING UNIT
- 27 -
English
F412050100.fmIDM
version
Module 40/60/90/120

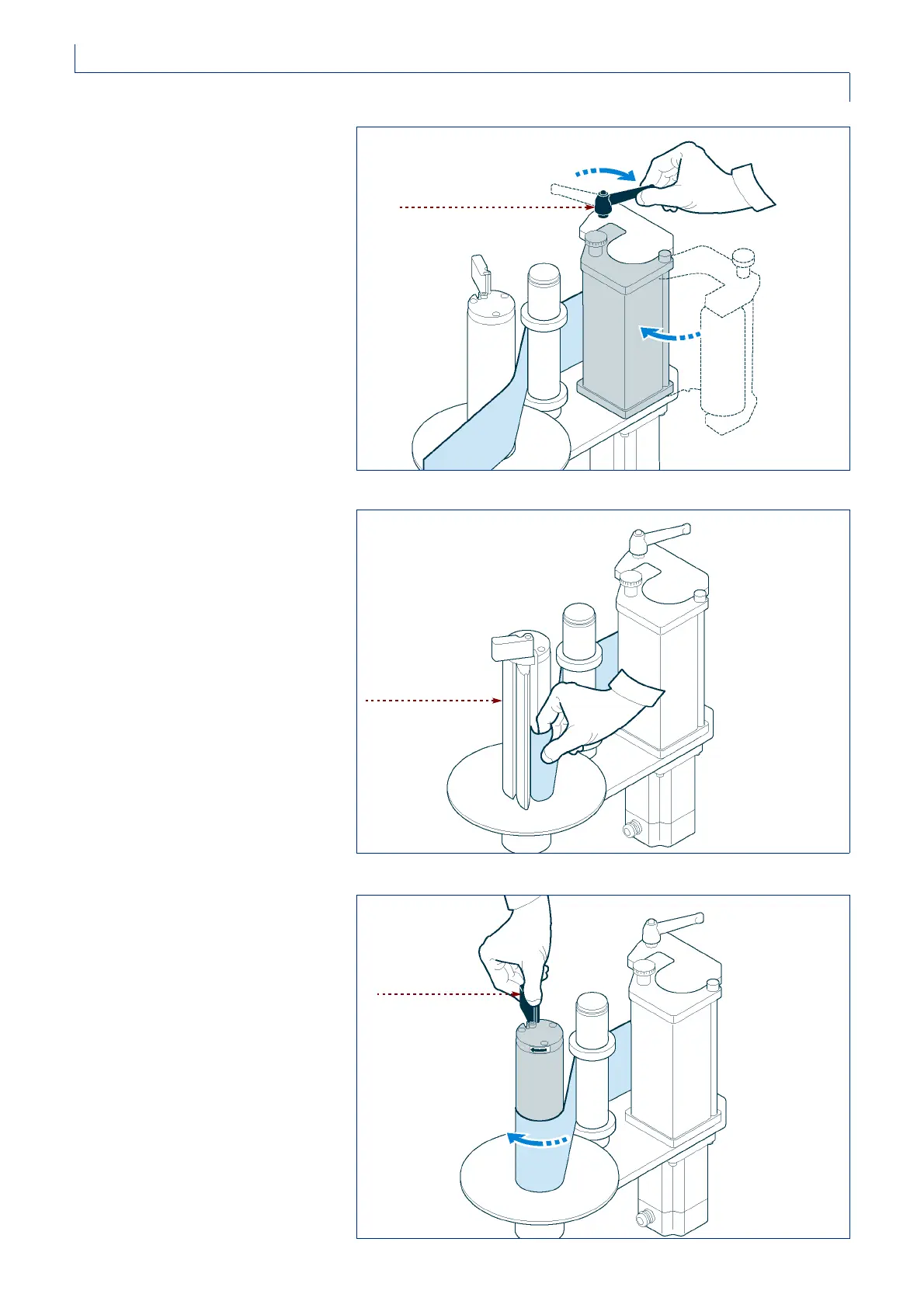

11 -Close the driving roller guard and
bring the locking handle
perpendicular to the paper braking
pad.
12 -Thread up to about 10-15 mm of
the paper into the unwinding
device. If necessary, fold the paper
over to double its thickness.
13 -Fix the end of the paper in place by
turning the lever radially outwards
and then turning in the direction
indicated by the arrow.
IDM-41200602000.tif
handle
IDM-41200602100.tif
unwinding device
IDM-41200602200.tif
lever
