Section 5
LABELING UNIT
- 26 -
English
F412050100.fmIDM
version
Module 40/60/90/120

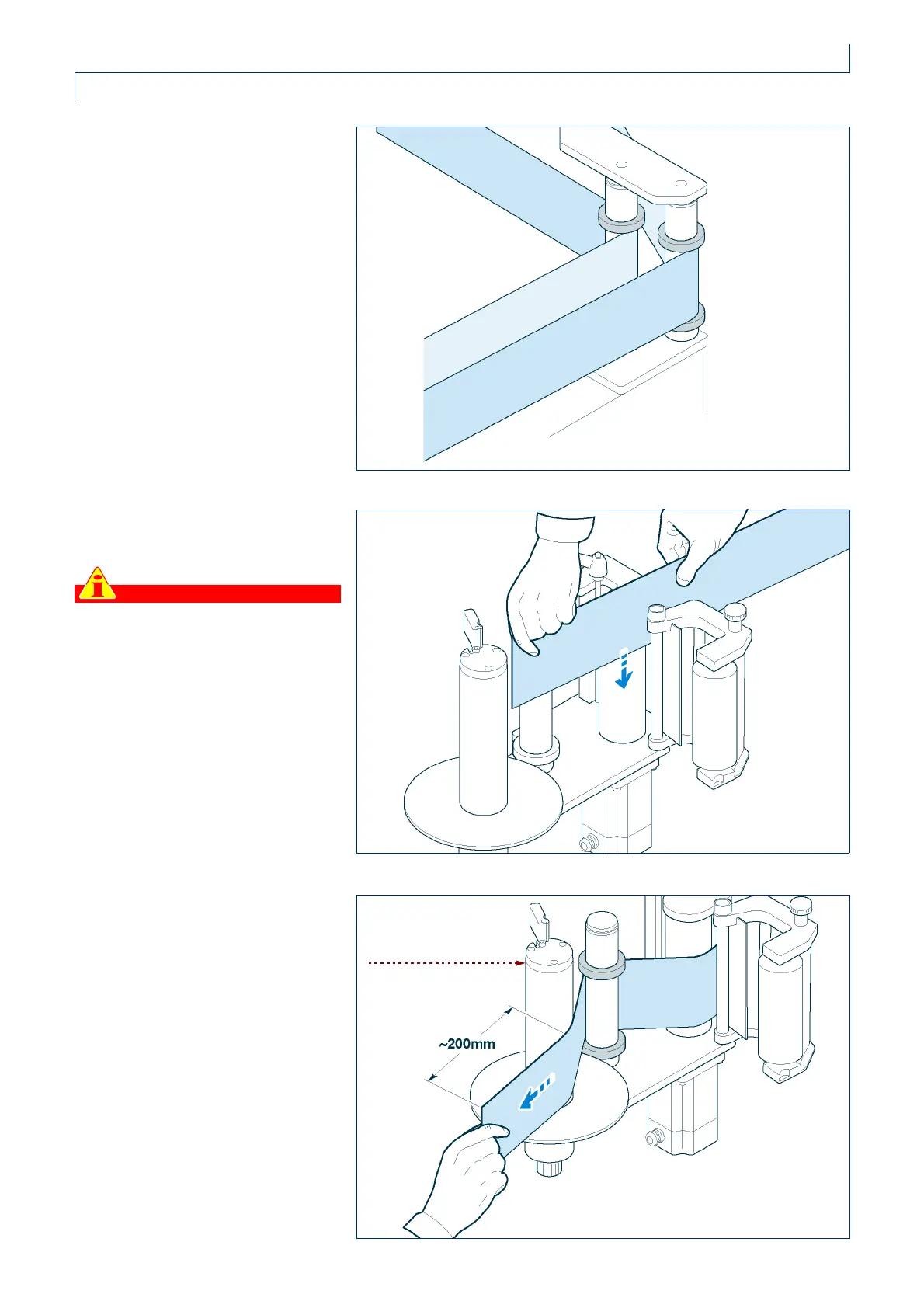

8 -Pass the paper through the label
detaching blade rollers.
9 -Thread the paper into the driving
unit from above.
Important
At this point, on versions MODULE
60 - 90 - 120, the paper passes
through a system of dandy rollers,
as indicated on the label showing
the path covered by the paper
(attached to the driving roller guard).
10 -Pull the paper about 20 centimeters
beyond the winder spool (for
Module 40 only).
IDM-41200601700.tif
IDM-41200601800.tif
IDM-41200601900.tif
winder spool
