23
With both harnesses now routed you can begin using the small 4” zip ties

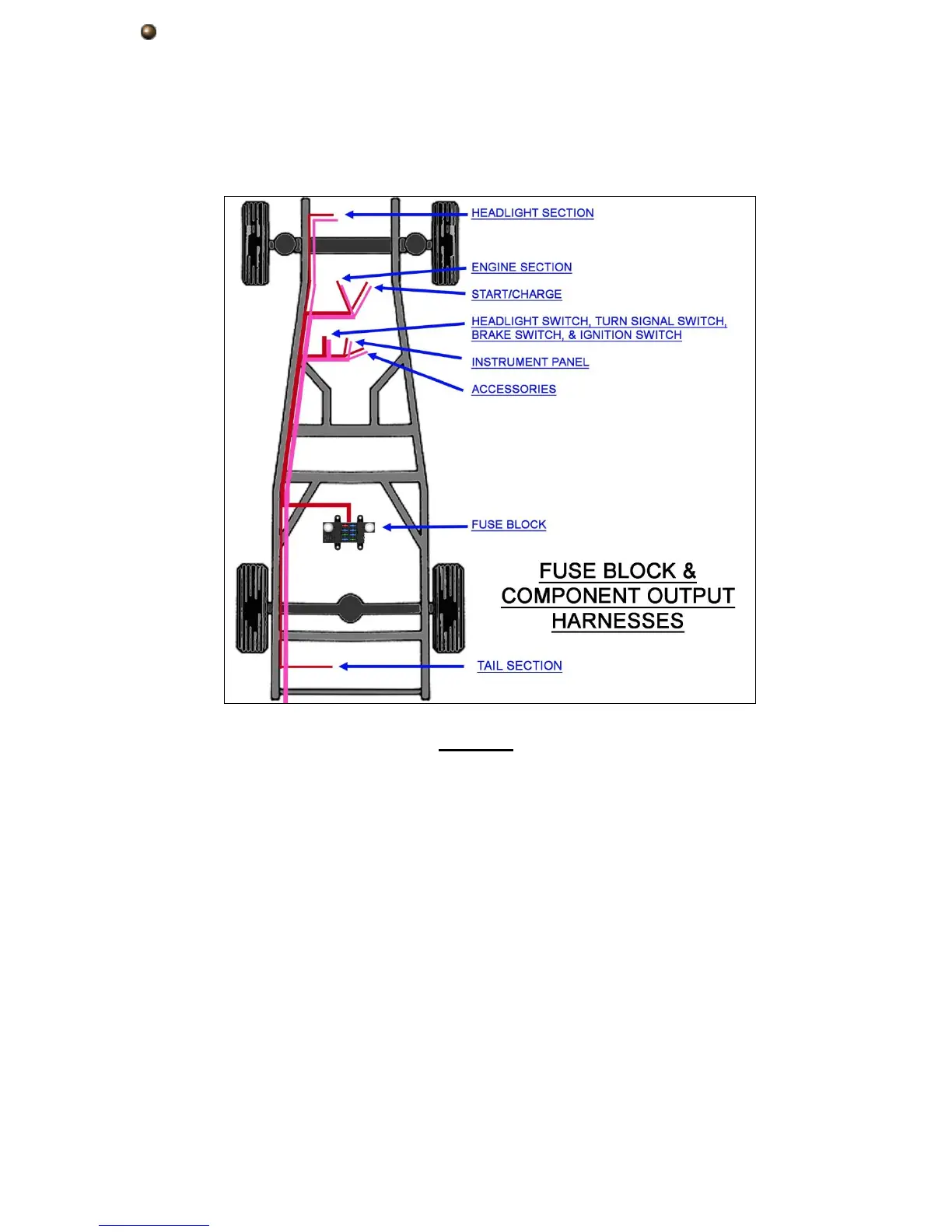

provided in the kit to tie the two harnesses together to create one harness. The
drawing below shows that if routed correctly both harnesses should be close , if
not side by side or one top of each other, making tying them together rather
easy. If your harnesses are routed on different sides of the vehicle, tie the
harnesses together where they meet at common connection points, such as the
dash mounted switches.
NOTES
