GM Headlight Switch

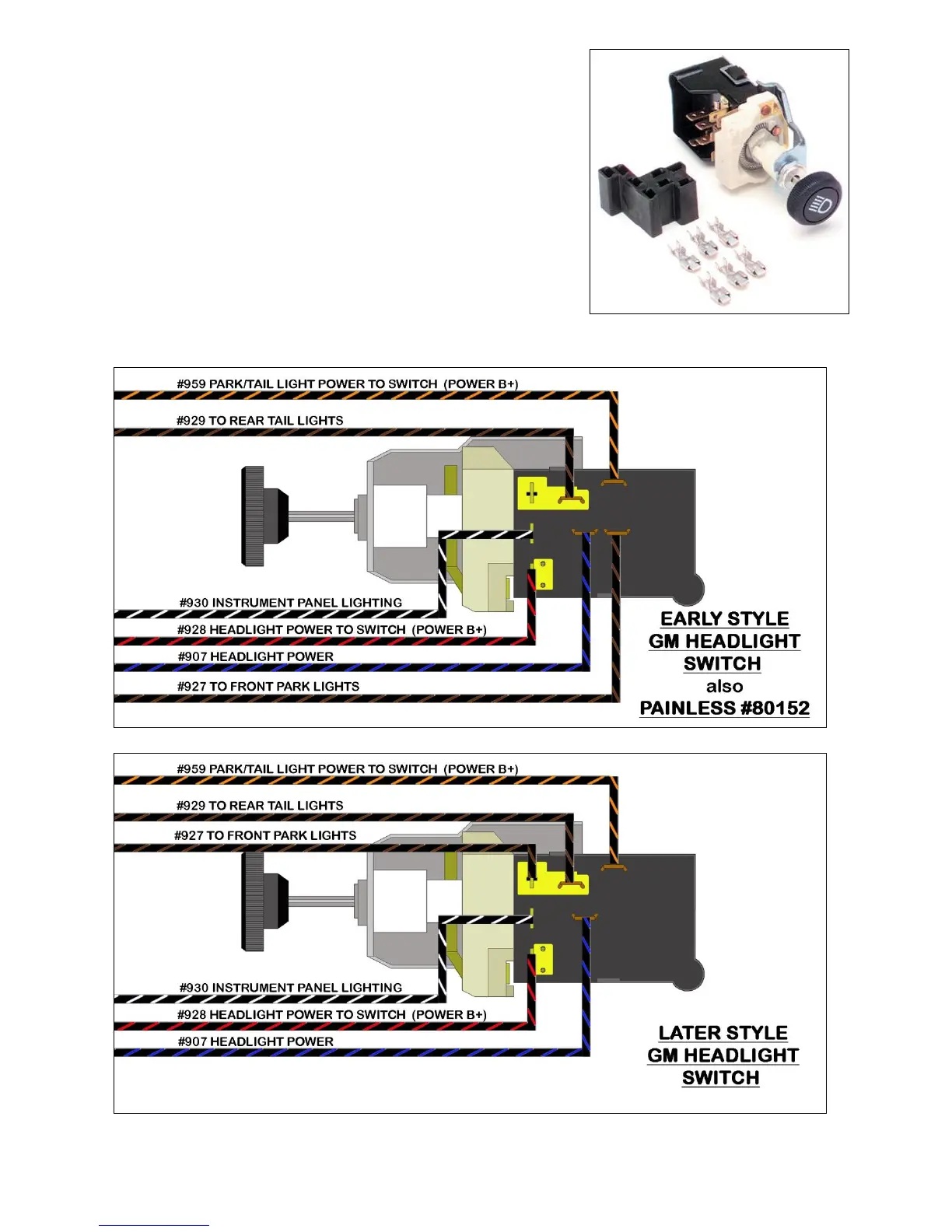

Use the following diagrams to connect to a GM
style headlight switch. GM used this style switch from
the 1960’s up through the 1980’s. There are 2 different
types of these switches, commonly referred to as early
and late styles. The only difference is the tab to which
the park lights connect, see the diagrams for this
difference. Painless offers the early style switch, with a
headlight pull, terminals and a connector as part
#80152, seen in the photo to the right.
If you do not have a connector, use the light blue
insulated terminals found in the parts kit to make these
connections.
To Next Page
