Toggle/Rocker Headlight Switch
Some vehicles such as t-buckets and others which may have a smaller narrower
dash board, may not have room or want the clutter of a bigger headlight switch.

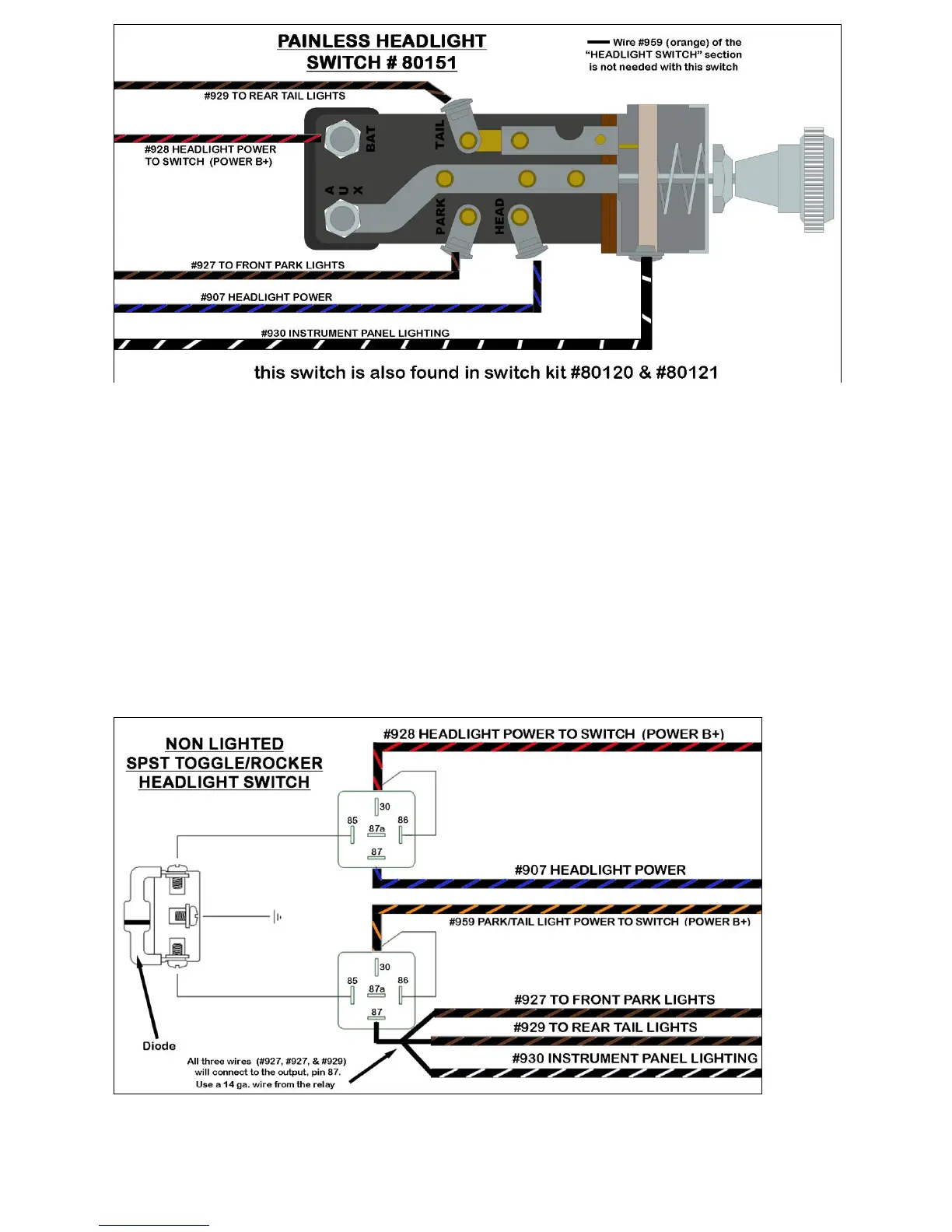

Reference the diagrams below to install a lighted or non-lighted SPST (Single Pole
Single Throw) toggle or rocker switch. This will also require the use of 2 SPST relays.
The small black and red lines and seen in the diagrams are wires that need to be
provided by the installer, these can be small 18 gauge wires since they are only
providing ground/ power for relay activation and power for the backlighting of a switch.
The diode seen in the diagram is the same as the diode provided in the alternator
bag kit, page 42 of the first manual. If you are not using the diode with your alternator it
may be used for this purpose, if you need a diode, Painless offers #30720.
