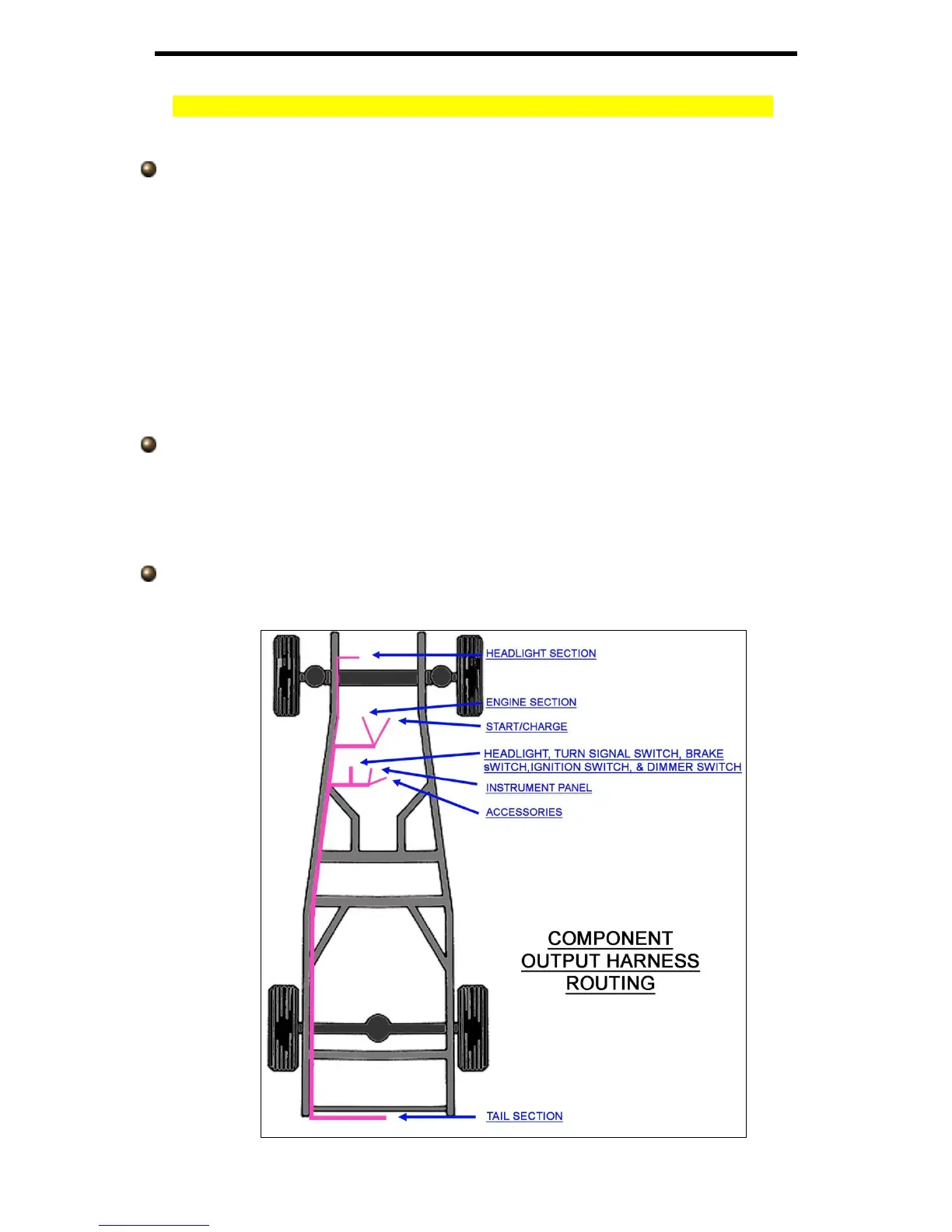

COMPONENT OUTPUT HARNESS ROUTING
Loosely route all of the following wire groups to their designated connection
points. NO CONNECTIONS OR CUTTING WILL TAKE PLACE AT THIS TIME. A
complete layout of the Component Output Harness can be found on the previous page.
On the Component Output harness, locate the area seen circled in red in the
schematic on the previous page. This area will be the portion of the Component
Output Harness that passes through the firewall/floor board towards the front of
the vehicle.
At this time route the following groups of wires towards their locations in the front
of the vehicle: “ENGINE SECTION”, START/CHARGE, and HEADLIGHT
SECTION”
If you are using a hydraulic brake switch mounted on or near the master cylinder,
the wire labeled “BRAKE SWITCH” will also be grouped and routed with these
wires.
Route the wires intended for dash mounted components/switches towards their
connection points on the dash at this time. These will be groups labeled “TURN
SIGNAL SWITCH”, “HEADLIGHT SWITCH”, “IGNITION SWITCH”,
“ACCESSORIES”, “INSTRUMENT PANEL”, AND “BRAKE SWITCH” (if it wasn’t
already routed to the engine compartment)
Route the large bundle of wires labeled “TAIL SECTION” to the rear of the
vehicle.
