Each wire, coming from the headlight bucket as well as the Painless Harness will
be cut to length and have ¼” of insulation stripped from them.

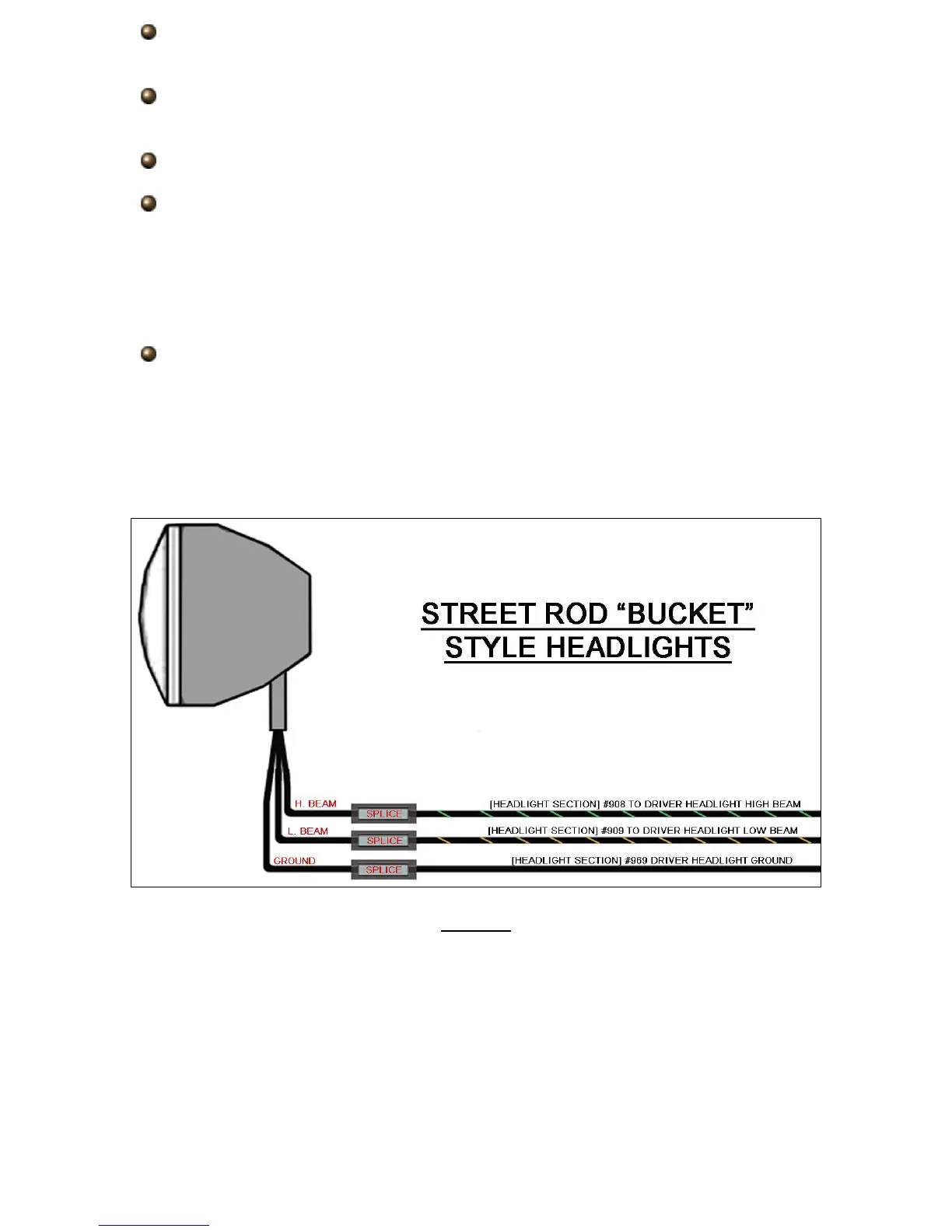

Connect the splice to each of the 3 wires on the Painless harness, taking the split
on the splice into consideration as shown on page 8.
With the splice crimped, slide a piece of heat shrink onto each wire.
Insert the wires from the headlight bucket into the splice that corresponds with
the wires function:
High Beam wire to the Painless Black/Green wire printed #908
Low Beam wire to the Painless Black/Tan wire printed #909
Ground wire to the Painless Black wire printed #969
With the wires now crimped, slide the heat shrink over the splice and apply heat
with a heat gun* to shrink it down and make a weather resistant connection.
*Some may opt to use a small soldering torch or even a cigarette lighter to
accomplish this. This is not advised as it tends to overheat the heat shrink
causing it to bubble or crack. Use caution to prevent overheating if using any kind
of flame.
