38
If you do not have an electric choke, this wire will not
be needed and can be removed from the harness.
Route this Blue #954 wire to the + terminal of
the electric choke, install the appropriate
terminal for your connection, and connect.
Ensure the choke is properly grounded, ground
wire not supplied in the Painless harness,
before continuing with the installation.

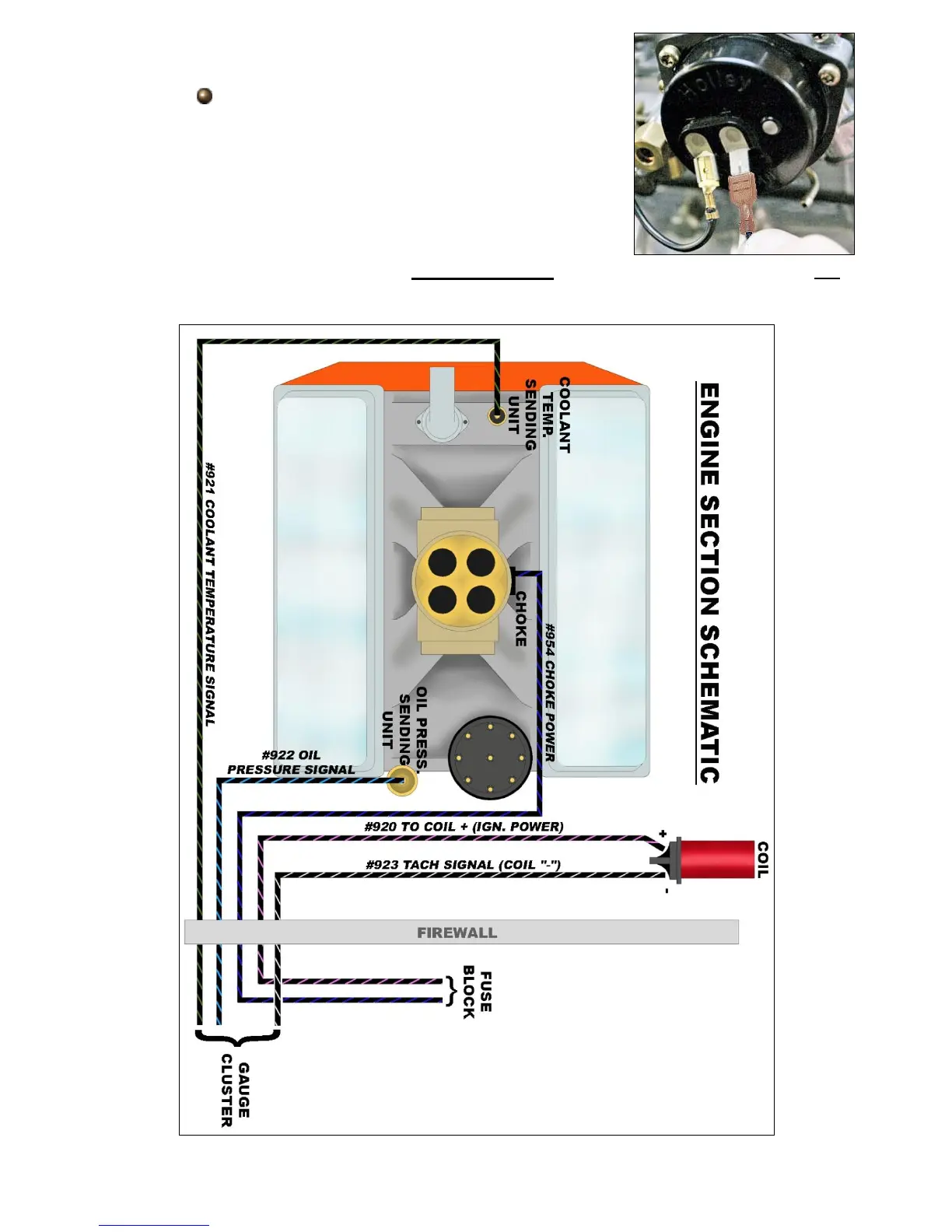

The following schematic shows the Engine Section wiring on a common chevy V8 not
using a ballast resistor.
To Next Page
