50
The two remaining wires, a 14 gauge black/red wire printed #995 REGULATOR
BATTERY POWER and a 16 gauge black/brown wire labeled #914 ALTERNATOR
EXCITER, will connect to the pigatils on the back of the alternator.
Connect the two alternator pigtails to the alternator. Route the black/brown
#914 wire and the black/red #915 wire to the 2 wires coming from the 3
wire connector pigtail, and cut to length and strip ¼” of insulation.

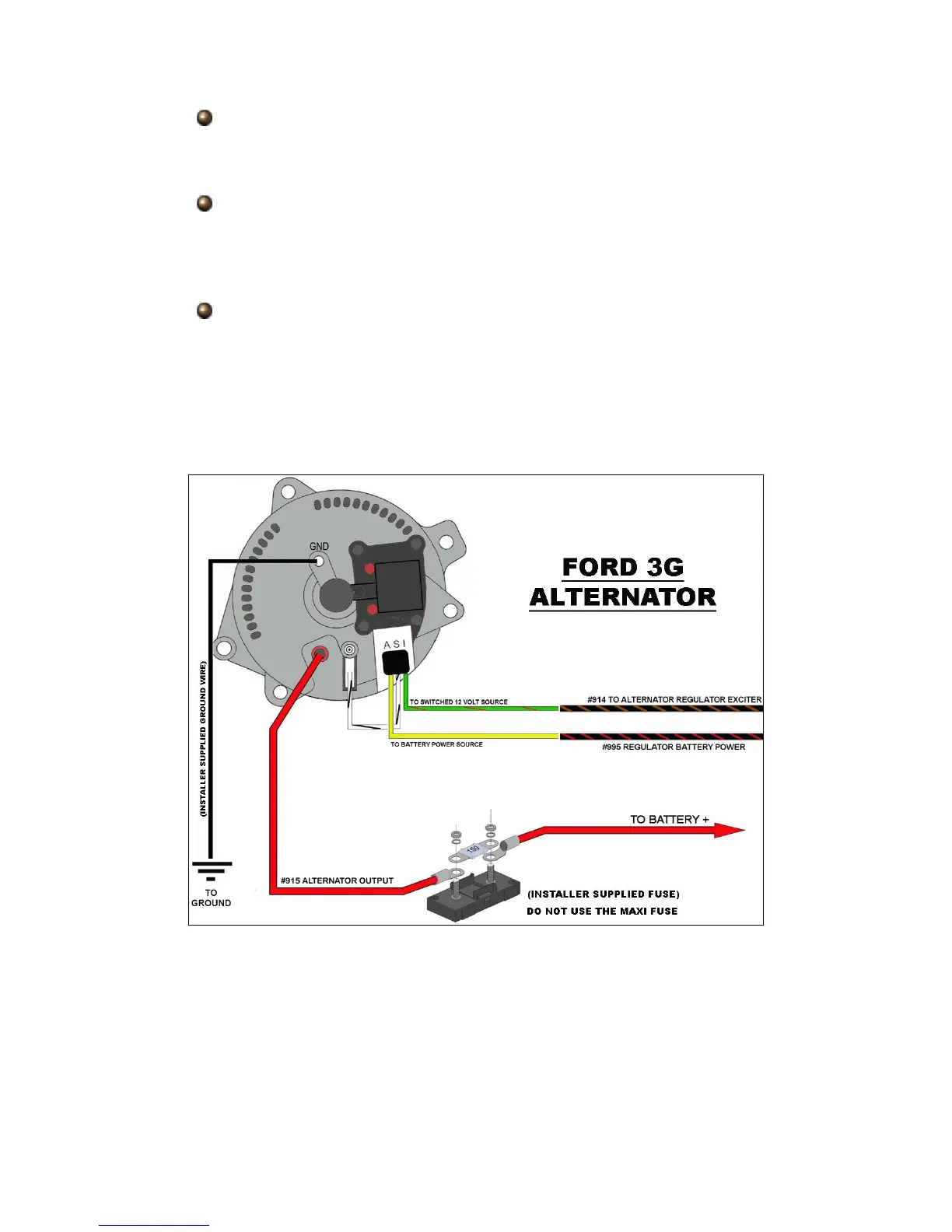

The 3G alternator requires a switched power source to pin I of the
regulator, this will be the #914 wire. Using a splice and heat shrink
provided in the “ALTERNATOR” bag kit, splice the pigtail to the
black/brown #914 wire according to the diagram below.
The 3G alternator requires a constant battery power source to pin A of the
regulator, this will be the #995 wire. Using a splice and heat shrink
provided in the “ALTERNATOR” bag kit, splice the pigtail to the black/red
#995 wire according to the diagram below.
The 2G, and 4G alternators wire up in the same manner as the 3G in regards to
the “I” and “A” terminals on the regulator.
