Wiring to the Solenoid

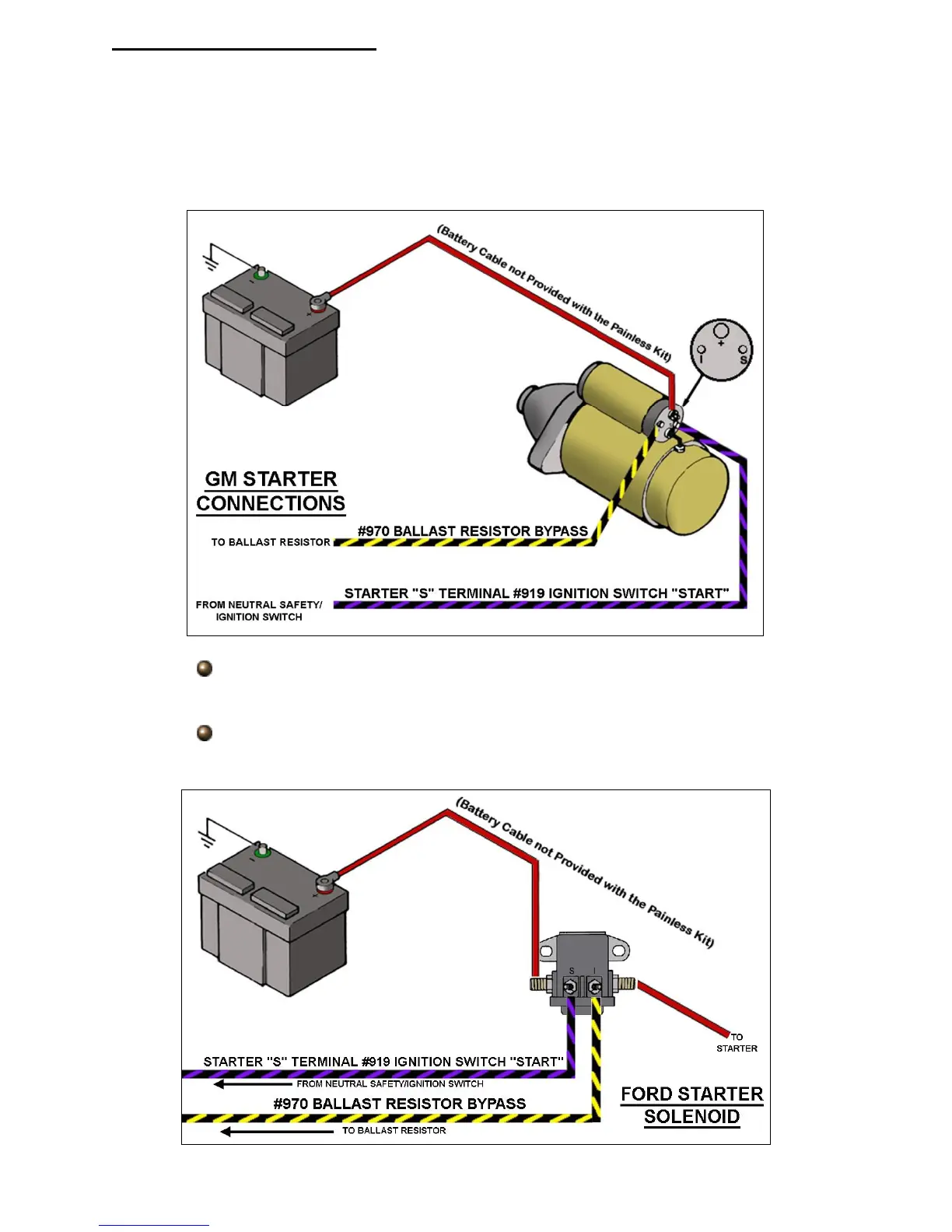

Use the following instructions and diagrams if you are wiring directly to the starter
solenoid. This applies to GM starters with the solenoid on the starter and remote
mounted solenoids like those found on ford vehicles. Locate heat shrink and ring
terminals from the parts kit that best fit the posts found on the starter solenoid, crimp
and connect.
The black/purple #919 wire will connect to the “START” or “S” post on the
solenoid
The black/yellow #970 wire will connect to the “I” or “R” post of the
solenoid, as seen in the schematic below.
