The connection point of these wires will depend on the location of the dimmer
switch. Most will have a floor mounted dimmer switch, although, those using a later
model GM column may find the dimmer switch on the side of the column.
For those with T-buckets or any other vehicle that doesn’t have room for a floor
mounted dimmer switch, another alternative is to use a dimmer switch incorporated into
a headlight switch, Painless offers this as part # 80154.
Route all 3 wires to the dimmer switch and cut to length.
If you are using a dimmer switch incorporated into the headlight switch
(Painless part #80154) skip to the next section, “HEADLIGHT
SWITCH”, on the next page.

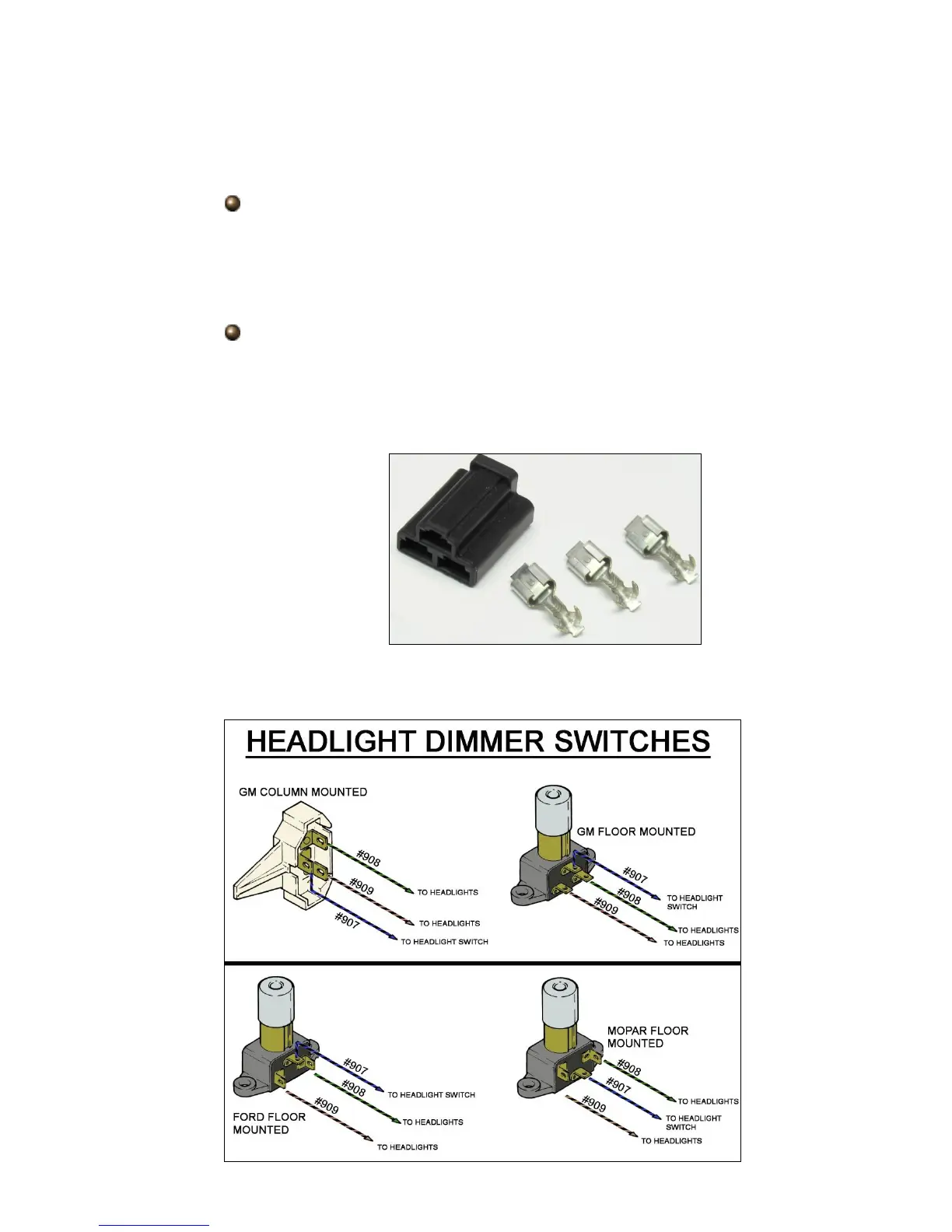

Connect the three wires do the dimmer switch as shown in the diagram
below.
Those using a GM style switch, column or a floor mounted like
Painless part #80150, a connector and terminals have been provided.
Use the light blue insulated terminals to make connections to with a
Ford/Mopar switch.
