Palfinger MiniFix - Connector Overview

Revision 1.1 26
7.3.3 Connector Overview
CIRCUIT BOARD
POWER PACK
B-13 LIFT ARM
B-16 PLATFORM
GROUND
CONTROL PANEL
CAB CUT OFF SWITCH
FOOT CONTROL
WARNING LIGHTS
CYLINDERS LIFT 15 (2 ea) TILT 14 (2ea)

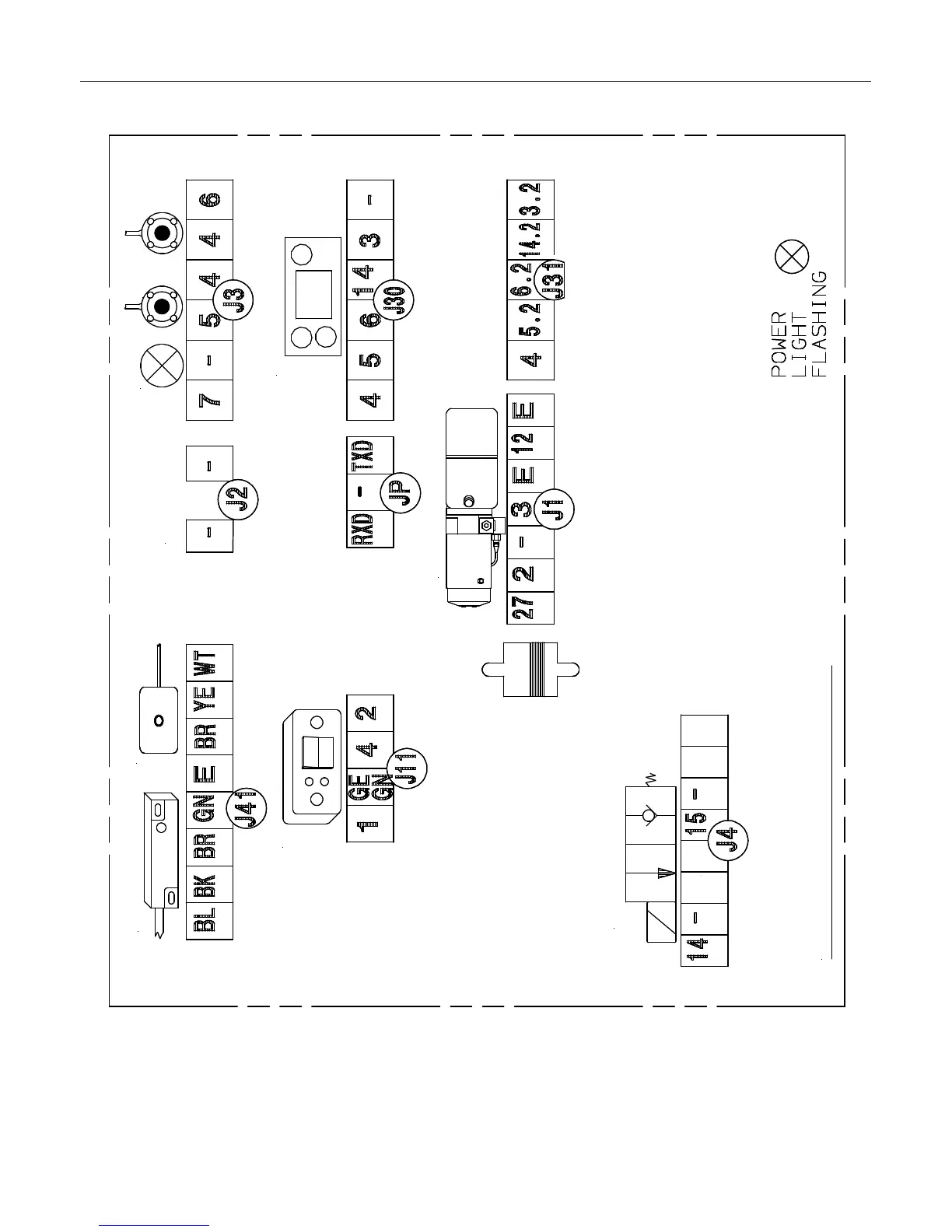

Figure 9: Connector Overview
(1 ea)
(1 ea)
