8.2. Docking of Drive Unit to Biocontainer
1. Remove the magnetic clamp from the biocontainer container assembly before coupling.
To remove the magnetic clamp, reach underneath the drive port and carefully pull the
magnetic clamp downwards until it is free from the biocontainer-tank assembly. Return the
magnetic clamp to the supplied accessories box for future use.
IMPORTANT NOTE: Do not remove the magnetic clamp before filling the biocontainer with
the minimum required volume!

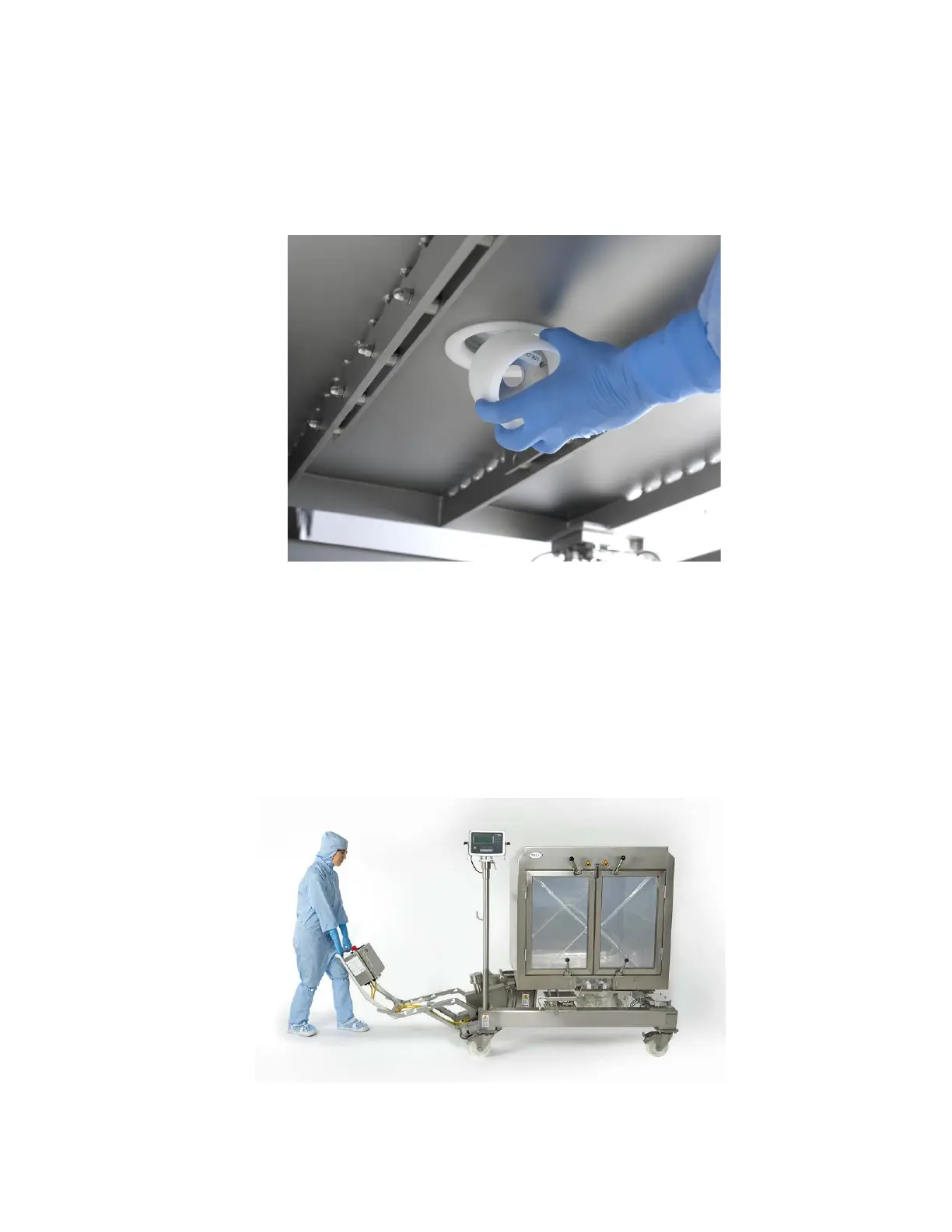

Figure 19: Removal of magnetic clamp
2. Make sure that the universal latch is installed in the correct position to match the rail port
intended for connection. See Table 4 and Figure 18 for corresponding latch and port
positions. Pull the latch back towards the handle as shown in Figure 19 step 1.
3. Position the drive unit in front of the rails of the tank.
4. Push down on the drive handle and raise the front wheels off the ground. Align the guide
bearings on the drive with the tank guide rails.
Figure 20: Aligning drive unit on tank rails
