Table 5: Latch positions/configuration round tanks
Round Tank Latch Positions
Volume
Position
Stamp on frame
Configuration
30 L
2
(23) 15
standard
50 L
2
(23) 15
standard
100 L
2
(23) 15
standard
200 L
2
(23) 15
standard
350 L
2
(23) 15
standard
500 L
2
(23) 15
standard
1000 L
2
(23) 15
standard
2000 L
3
(20)
extended
2500 L
3
(20)
extended
Adjust the universal latch by following the steps shown in Figure 19.

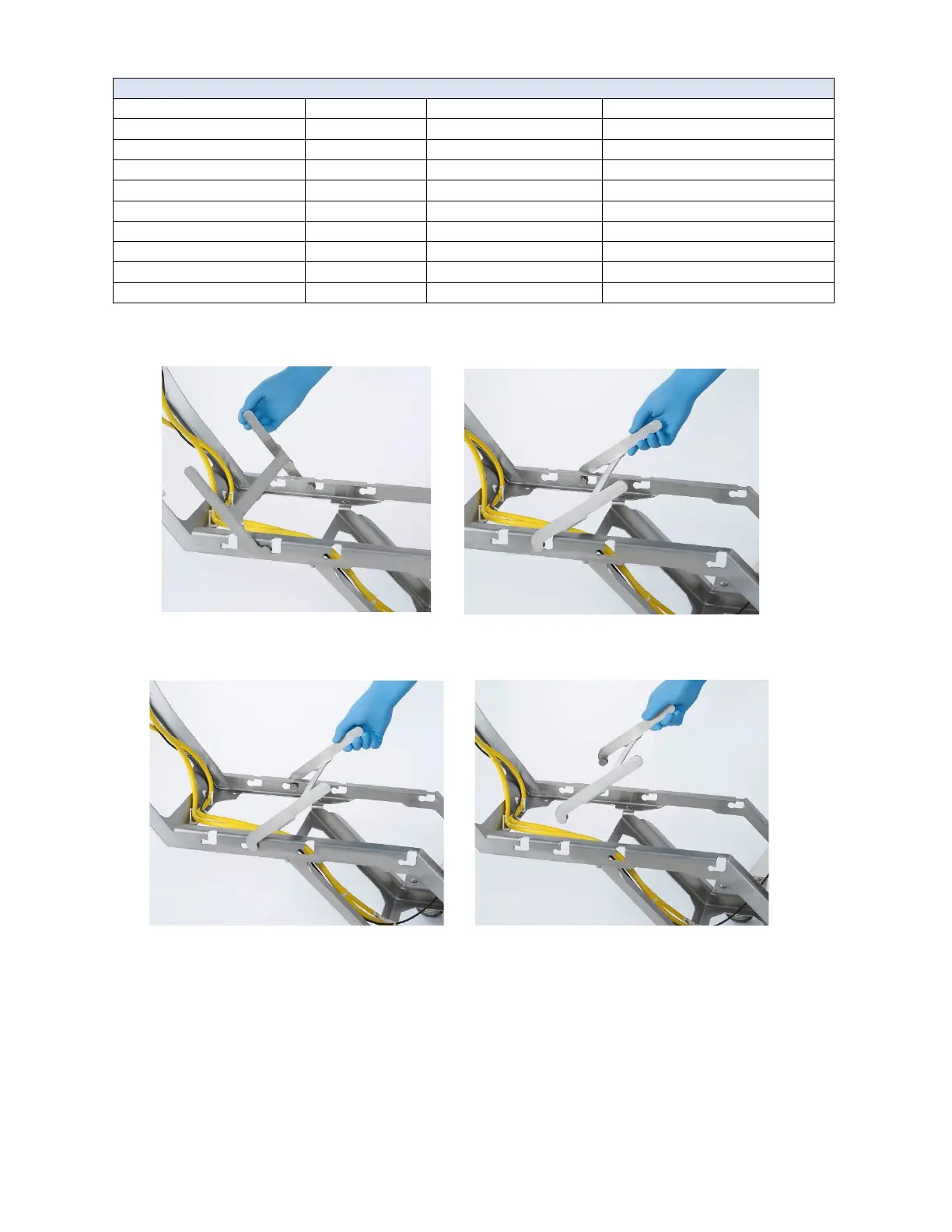

Figure 18: Procedure to change position of latch
4. Pull up to remove the latch.
2. Rotate the latch clockwise until the axle
flats are aligned with the horizontal slots.
1. Initial latch position before removal
3. Slide the latch toward the drive head.
