25
7. Press Pause to set the length of time the magnetic mixer should pause for that
instruction. When the keypad opens, type the length of time to pause and then press
Enter.
8. Press Run to set the length of time the magnetic mixer should run for that instruction.
When the keypad opens, type the length of time to run the mixer and then press Enter.
9. Press Speed to set the RPM set point at which the mixer should run for that instruction.
When the keypad opens, type the RPM set point and then press Enter.
10. Press Save to save your changes to the recipe. To return to the automatic mode screen
without saving your changes to the recipe, press Cancel.

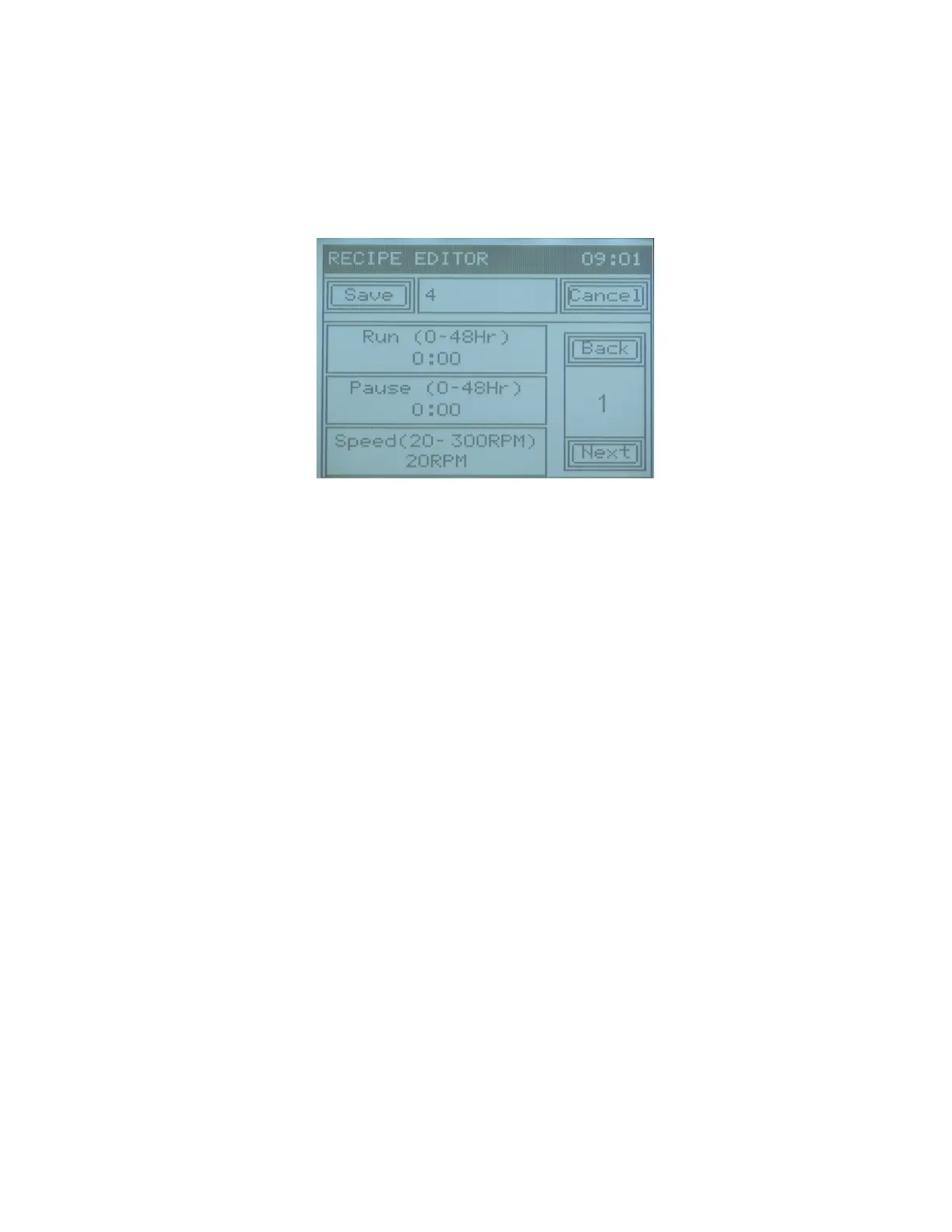

Figure 27: Recipe editor screen
To edit the name under which a recipe is stored, follow these steps:
11. Press Select on the automatic mode screen. The recipe selector screen opens.
12. Use the arrow buttons at the top of the screen to scroll through the list of recipes until you
find the name you want to edit.
13. Press Edit. The Recipe Editor screen opens.
14. If needed, press the Back and Next buttons on the right side of the screen to scroll
through the list of instructions for that recipe.
15. Press the button with the recipe name in it. An entry screen opens.
16. Use the onscreen keyboard and arrows to change the name of the recipe then press
enter.
17. Press Save to save your changes. To return to the automatic mode screen without saving
your changes to the recipe, press Cancel
9.5. Manual Mode
Use the manual mode to run the mixer either continuously or for a specific amount of time at a
given RPM. The manual mode is ideal for mixing jobs that have no additional parameters. If the
job requires mixing at different speeds use automatic mode instead.
To use the manual mode press Manual Mode on the main menu. The manual mode screen will
open. The status bar will display ‘MANUAL MODE’ (See Figure 29).
