B. Ensure the locating plate on the outlet port is aligned with the channel at the front of
the mixer tote (Figure 13).

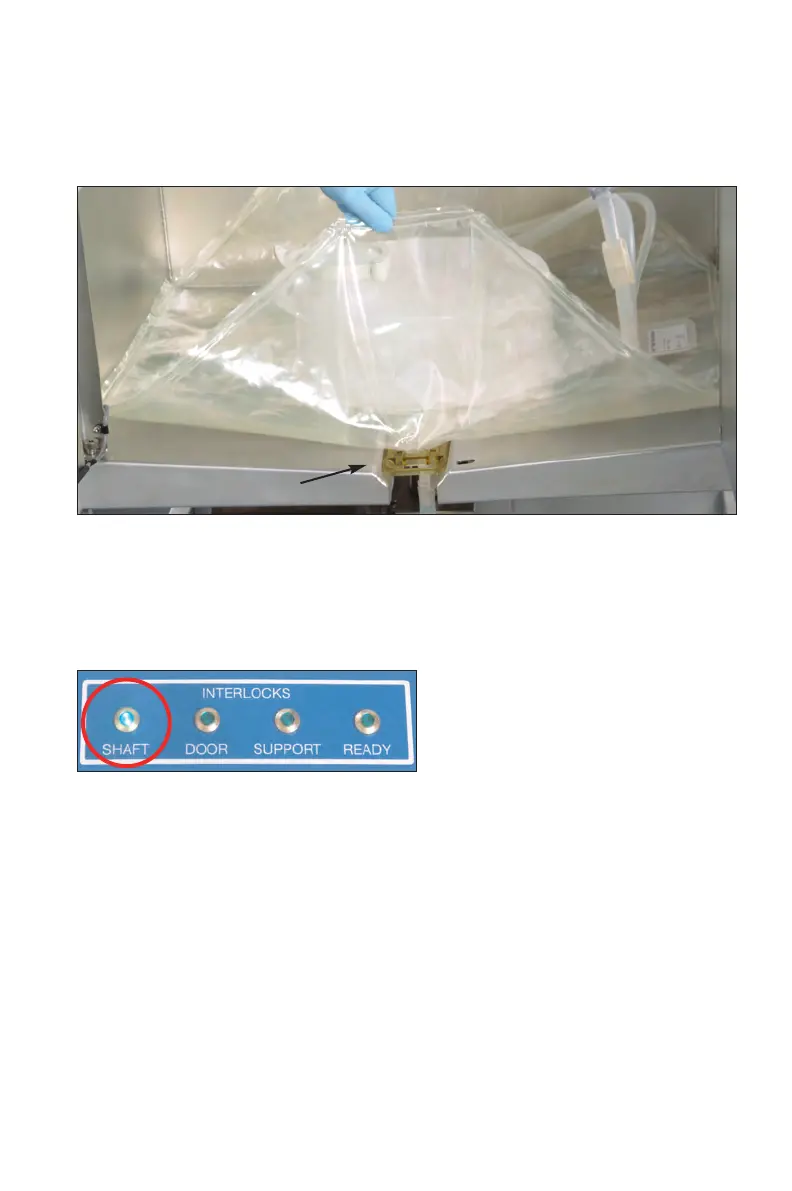

Figure 13
Carefully lifting the mixer biocontainer to ensure the locating plate on the outlet port is
in correct location
2. Check that the appropriate LED (labelled ‘SHAFT’) on the UCI is illuminated green as
shown in Figure 14 below. If the ‘SHAFT’ LED is not illuminated green at this stage,
please refer to ‘Troubleshooting’ (Section 7).
Figure 14
‘SHAFT’ interlock illuminated indicating correct location of shaft
11
