3. Before closing the doors attach the inflation and exhaust tubing to the UCI and secure
with cable ties. The ¼ inch line (Gas Inlet on Figure 2) connects to the ‘IN’ hosebarb on the
UCI and the ½ inch tubing (Gas Return on Figure 2) connects to the ‘OUT’ line on the UCI
as shown in Figure 15 below.

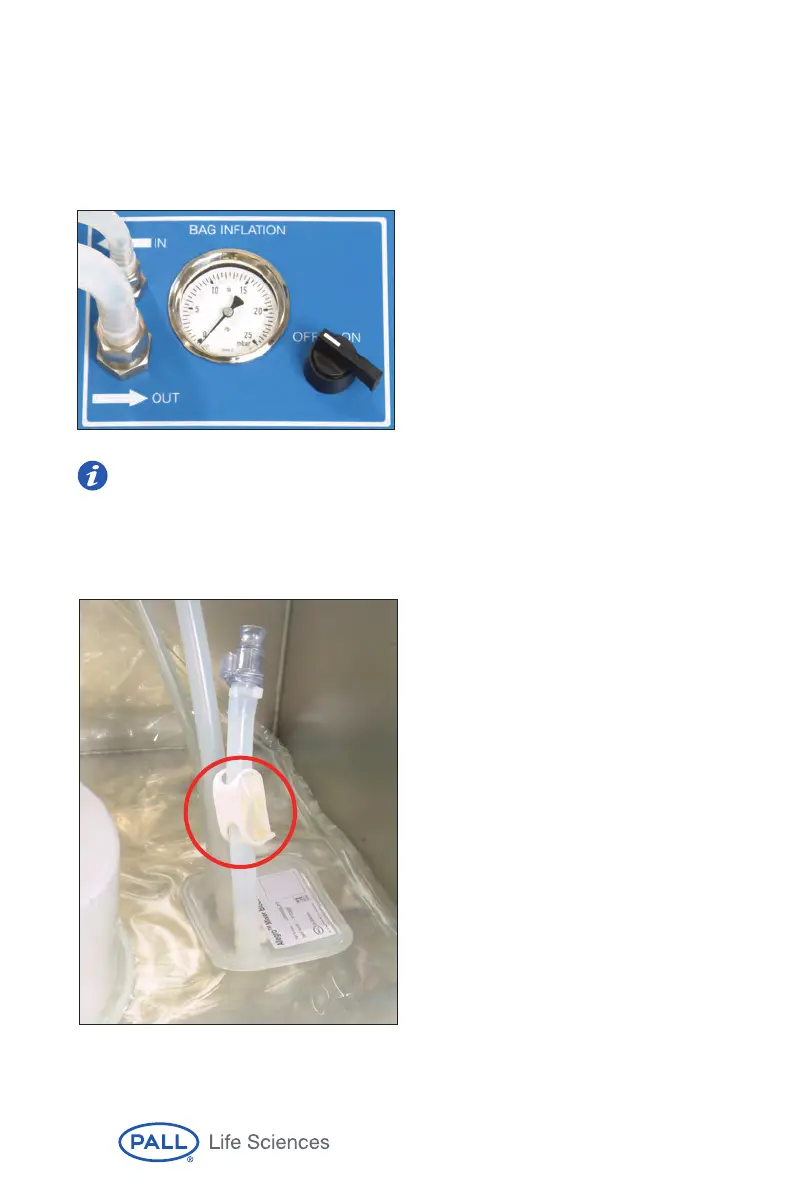

Figure 15
Inflation (IN) and exhaust (OUT) lines connected to the UCI
Note: Depending on system design it may be necessary to cut the ends of the inflation
and exhaust lines in order to allow fitment over the hose barbs on the UCI.
4. Check that the tubing on the fluid inlet line (see Figure 16) is securely clamped shut.
Figure 16
Check fluid inlet port is closed
