REMARKS
B : BLUE
BR : BROWN
BL : BLACK
W : WHITE
R : RED
O : ORANGE
P : PINK
Y/G : YELLOW/GREEN
Resistance of Indoor Fan Motor Windings
MODEL CS-A75KE CS-A95KE CS-A125KE
CONNECTION CWA921033 CWA921032 CWA921031
YELLOW-BLUE 707.1 Ω 451.2 Ω 450.7 Ω
YELLOW-BROWN 71.1 Ω 86.7 Ω 68.2 Ω
BROWN-ORANGE 64.7 Ω 98.4 Ω 56.7 Ω
ORANGE-WHITE 15.7 Ω 51.5 Ω 56.9 Ω
WHITE-RED 116.2 Ω 240.8 Ω 102.0 Ω
Resistance of Outdoor Fan Motor Windings
MODEL CU-A75KE CU-A95KE CU-A125KE
CONNECTION CWA95245
←
CWA95381
BLUE-YELLOW 260.5 Ω
←
174.5 Ω
YELLOW-RED 446.0 Ω
←
331.0 Ω
Resistance of Compressor Windings
MODEL CU-A75KE CU-A95KE CU-A125KE
CONNECTION 2RS127D3CA04 2PS174D3AA02 2KS224D5CA02
C-R 4.023 Ω 2.796 Ω 2.211 Ω
C-S 8.803 Ω 5.432 Ω 2.924 Ω

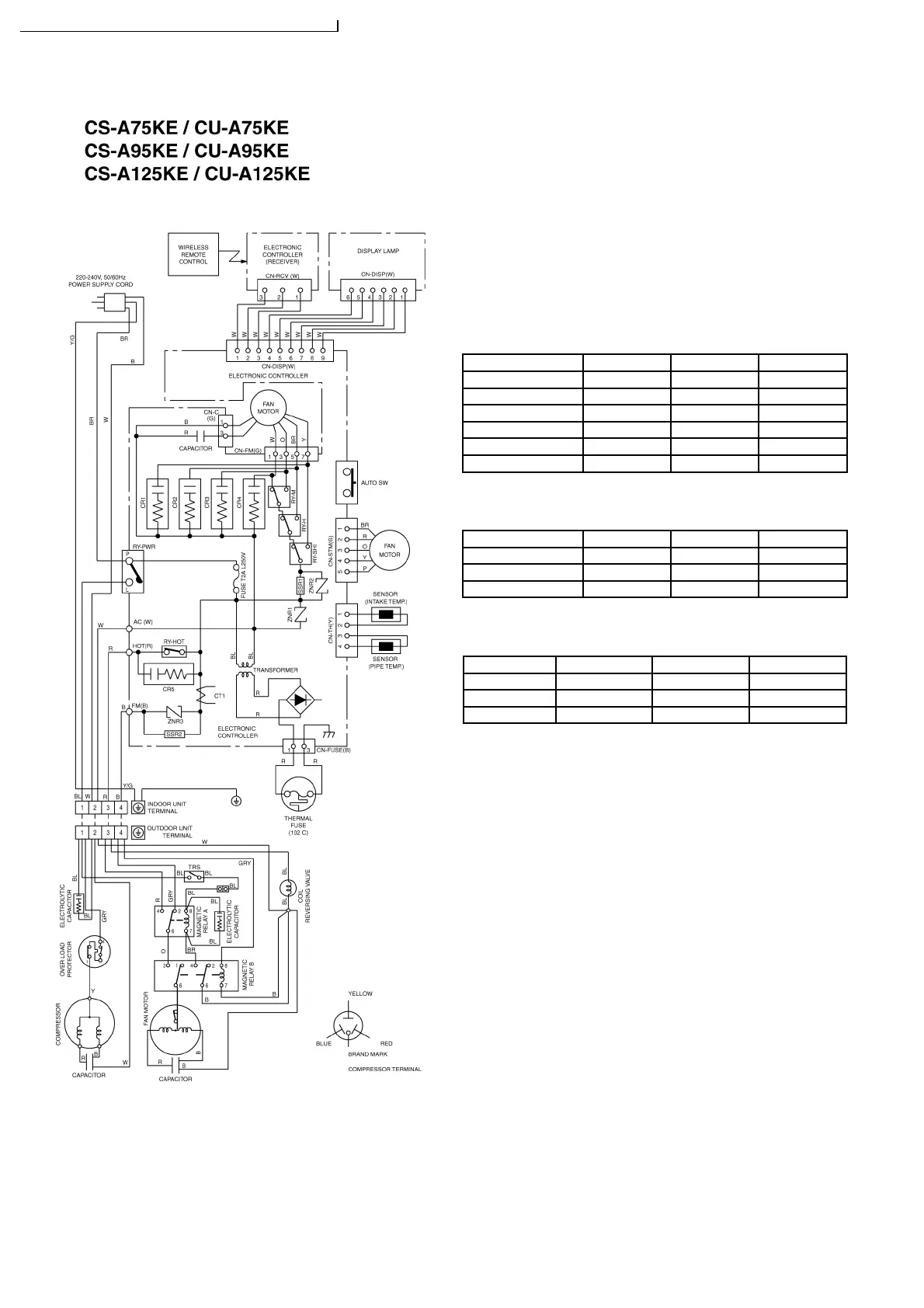

7 Wiring Diagram
16
S-A75KE CU-A75KE / CS-A95KE CU-A95KE / CS-A125KE CU-A125KE
