Automatic Fan Speed Mode

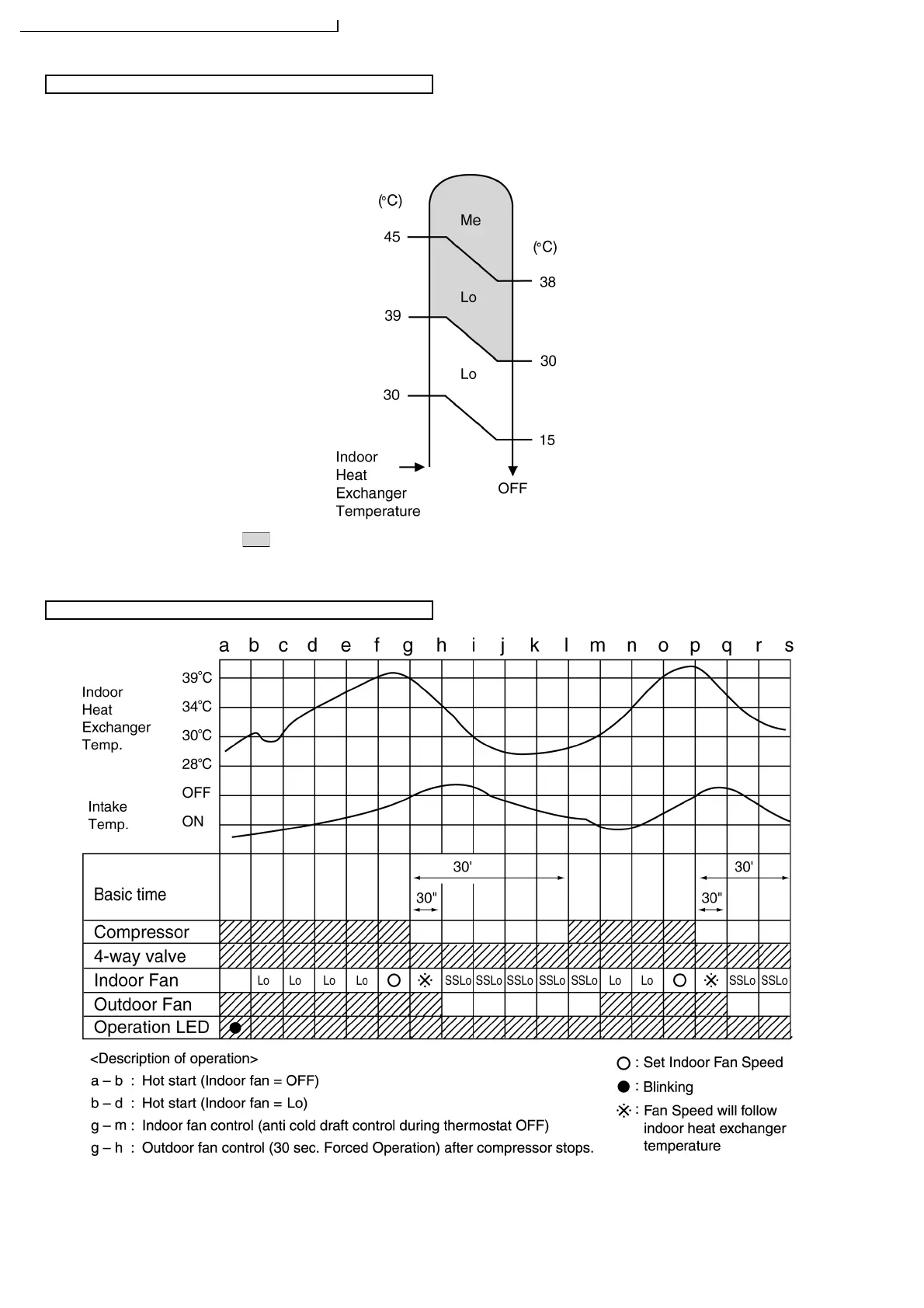

Heating Operating Time Diagram

When Automatic Fan Speed is selected at Remote Control during heating operation.

•

Fan speed rotates in the range of Me

→

Lo according to the heat exchanger temperature.

•

If use Manual Fan Speed,

at above diagram will operate with setting Fan Speed.

S-A75KE CU-A75KE / CS-A95KE CU-A95KE / CS-A125KE CU-A125KE
