Panasonic CS-C75KE User Manual

REMARKS
B : BLUE
BR : BROWN
BL : BLACK
W : WHITE
R : RED
O : ORANGE
P : PINK
Y/G : YELLOW/GREEN
Resistance of Indoor Fan Motor Windings
MODEL CS-C75KE CS-C95KE CS-C125KE
CONNECTION CWA921033 CWA921034 CWA921031
YELLOW-BLUE 536.5 Ω 461.1 Ω 457.4 Ω
YELLOW-BROWN 77.1 Ω 94.6 Ω 56.1 Ω
BROWN-ORANGE 43.9 Ω 49.3 Ω 61.2 Ω
ORANGE-WHITE 42.7 Ω 19.7 Ω 25.3 Ω
WHITE-RED 111.4 Ω 115.3 Ω 142.5 Ω
Resistance of Outdoor Fan Motor Windings
MODEL CU-C75KE CU-C95KE CU-C125KE
CONNECTION CWA951040
←
CWA951071
BLUE-YELLOW 363.7 Ω
←
258.0 Ω
YELLOW-RED 529.6 Ω
←
363.7 Ω
Resistance of Compressor Windings
MODEL CU-C75KE CU-C95KE CU-C125KE
CONNECTION 2RS110D5CA04 2PS146D5BA04 2KS224D5CA02
C-R 5.382 Ω 3.941 Ω 2.211 Ω
C-S 5.328 Ω 3.499 Ω 2.924 Ω

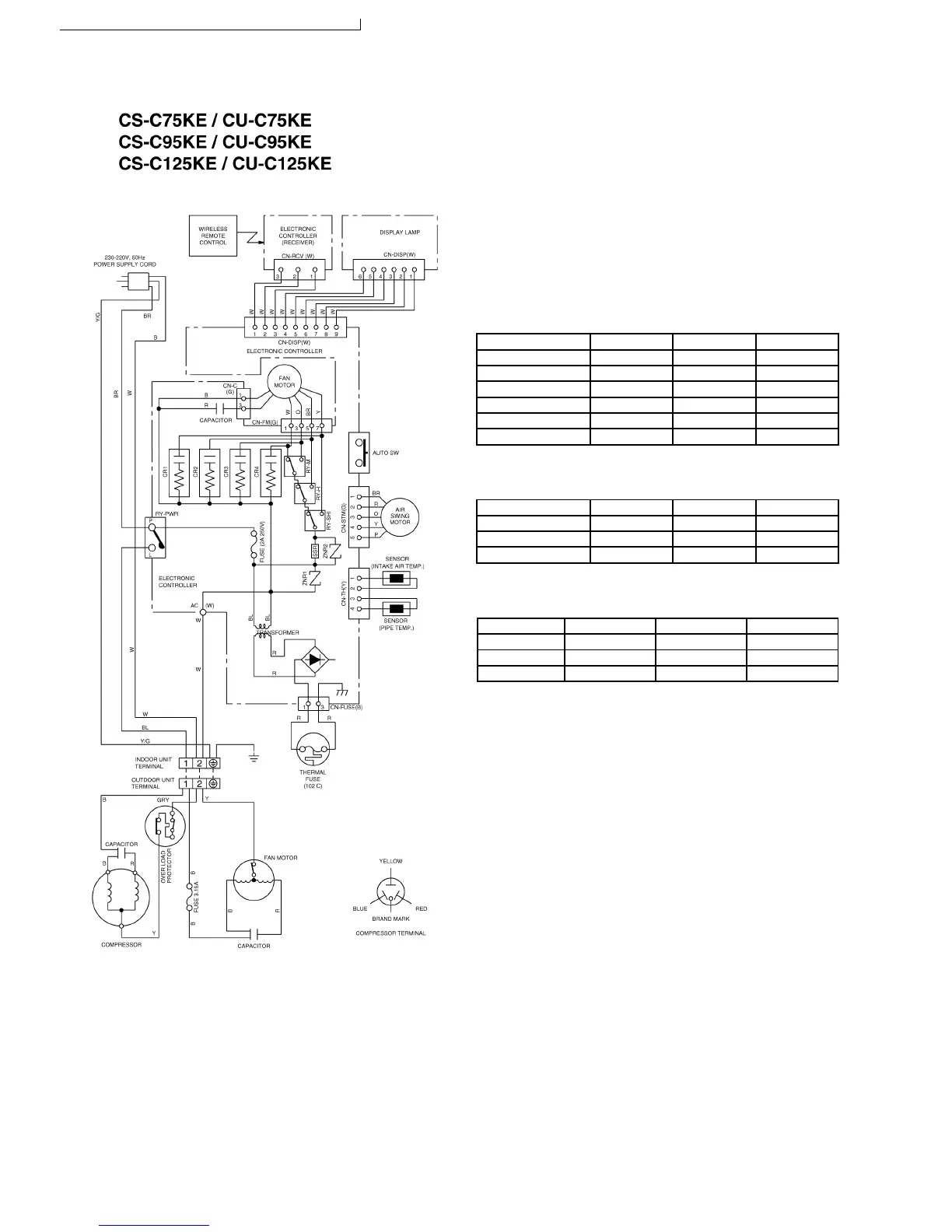

7 Wiring Diagram
16
S-C75KE CU-C75KE / CS-C95KE CU-C95KE / CS-C125KE CU-C125KE
