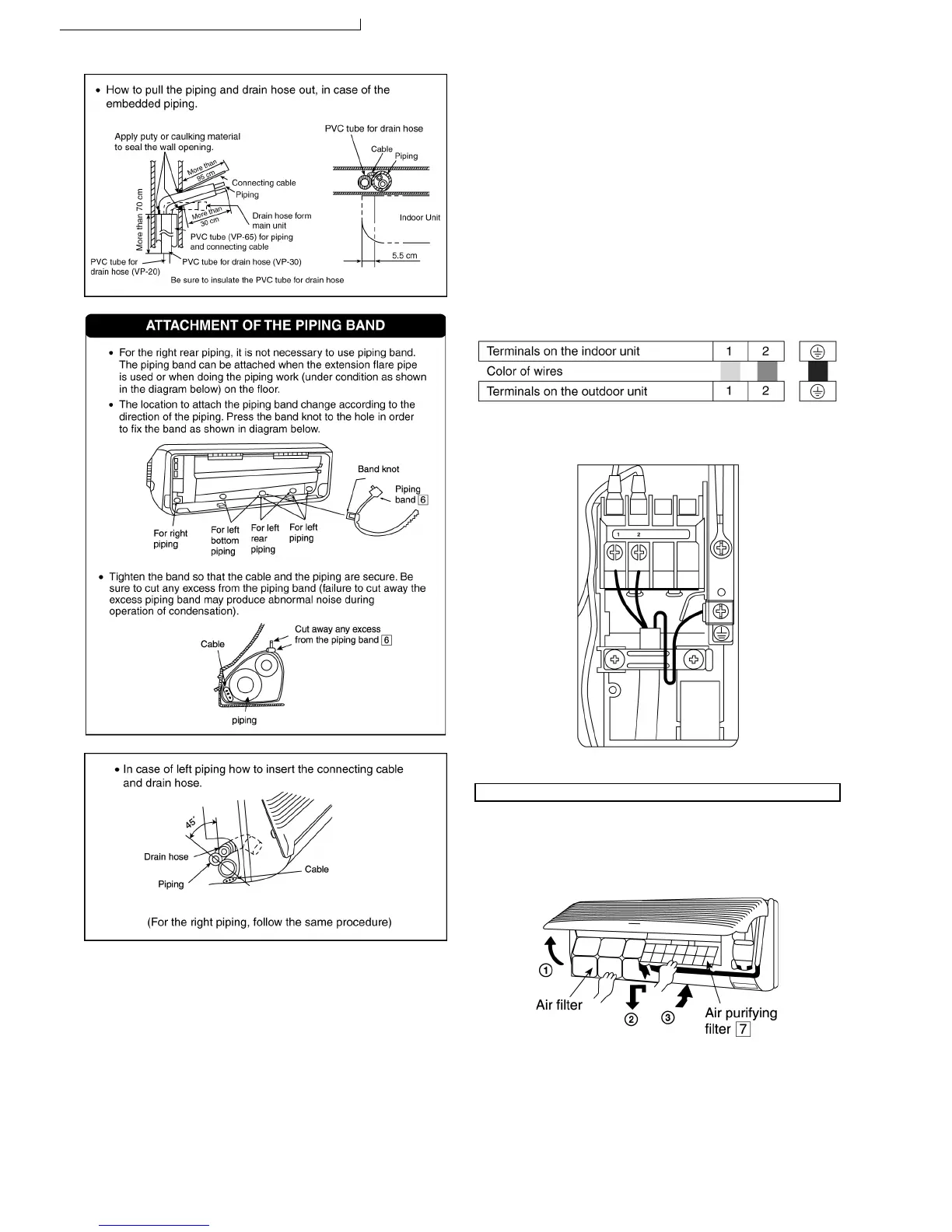

10.2.5. CONNECT THE CABLE TO THE
INDOOR UNIT
1. The inside and outside connecting cable can be connected
without removing the front grille.
2. Connecting cable between indoor unit and outdoor unit
shall be approved polychloroprene sheathed 3 × 1.5 mm
2
flexible cord, type designation H05 RN-F or heavier cord.
•
Ensure the color of wires of outdoor unit and the
terminal Nos. are the same to the Indoor’s respectively.
•
Earth lead wire shall be longer than the other lead wires
as shown in the figure for the electrical safety in case of
the slipping out of the cord from the anchorage.
•
Secure the cable onto the control board with the holder
(clamper).
INSTALLATION OF AIR PURIFYING FILTERS
1. Open the front panel.
2. Remove the air filters.
3. Hold the purifying filters by their tabs and install as shown in
the illustration at below.
54
S-C75KE CU-C75KE / CS-C95KE CU-C95KE / CS-C125KE CU-C125KE
