CAUTION
• Check before hand the height from the ceiling to the unit.
• The front grille fitting direction is determined by the unit
direction.
• Only use the screws with the length of 35mm which is
provided, to fix the decorative panel.
• Do not use other screw which is longer it may cause
damage to the drain-pan and other components.

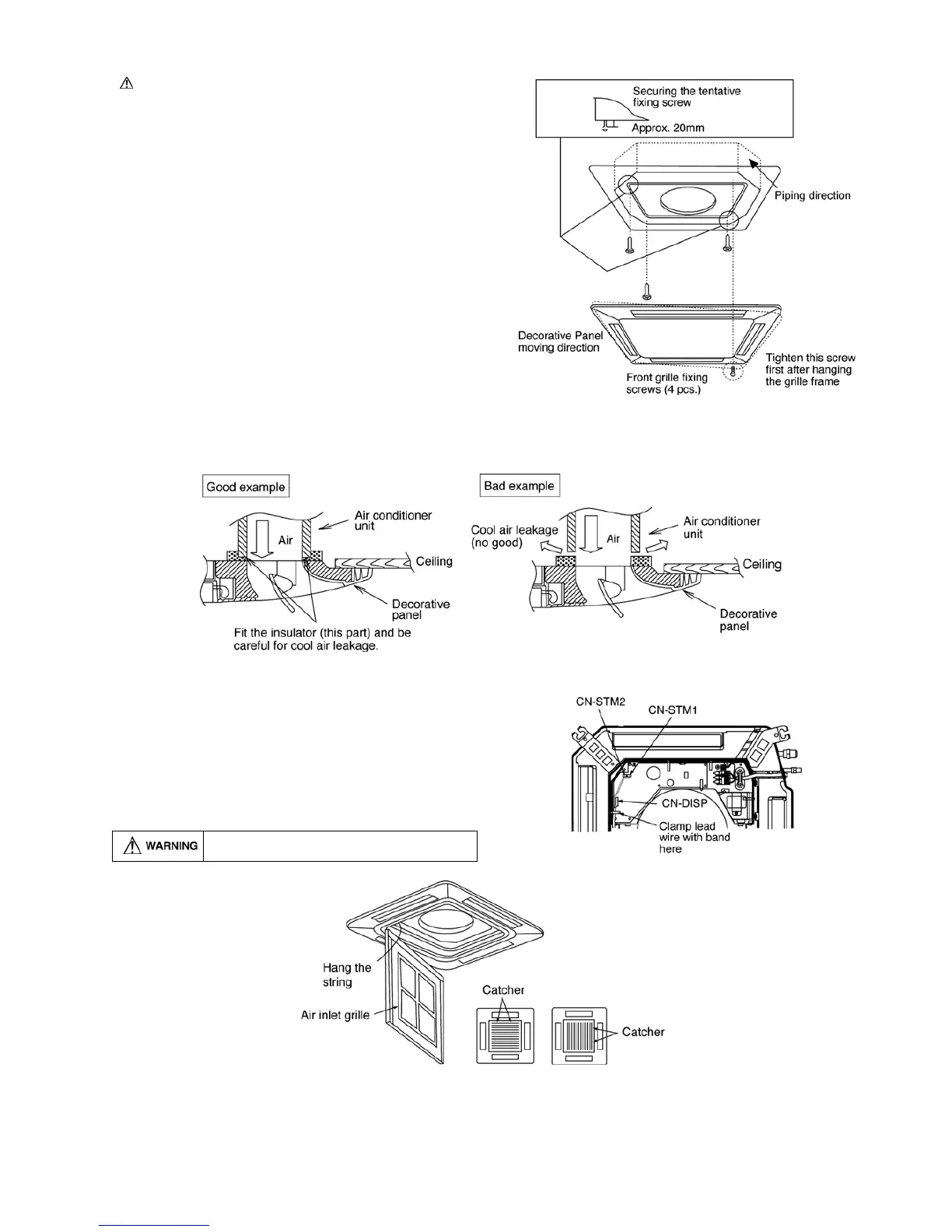

3. Fit the decorative panel and ceiling wall together and confirm no gap in between. Readjust indoor unit height, if there is a gap
between ceiling wall and decorative panel.
4. Open the indoor control box cover. (2 pcs)
5. Insert firmly the connector of cosmetic louver to indoor
pcb CN-STM1, CN-STM2 and CN-DISP.
Be caution not to clamp the cord in between control board
and control board cover.
6. After complete, install back removed part follow opposite
procedure.
Be sure to hook the air inlet grill string, to prevent
grill from falling and causing injury from it.
