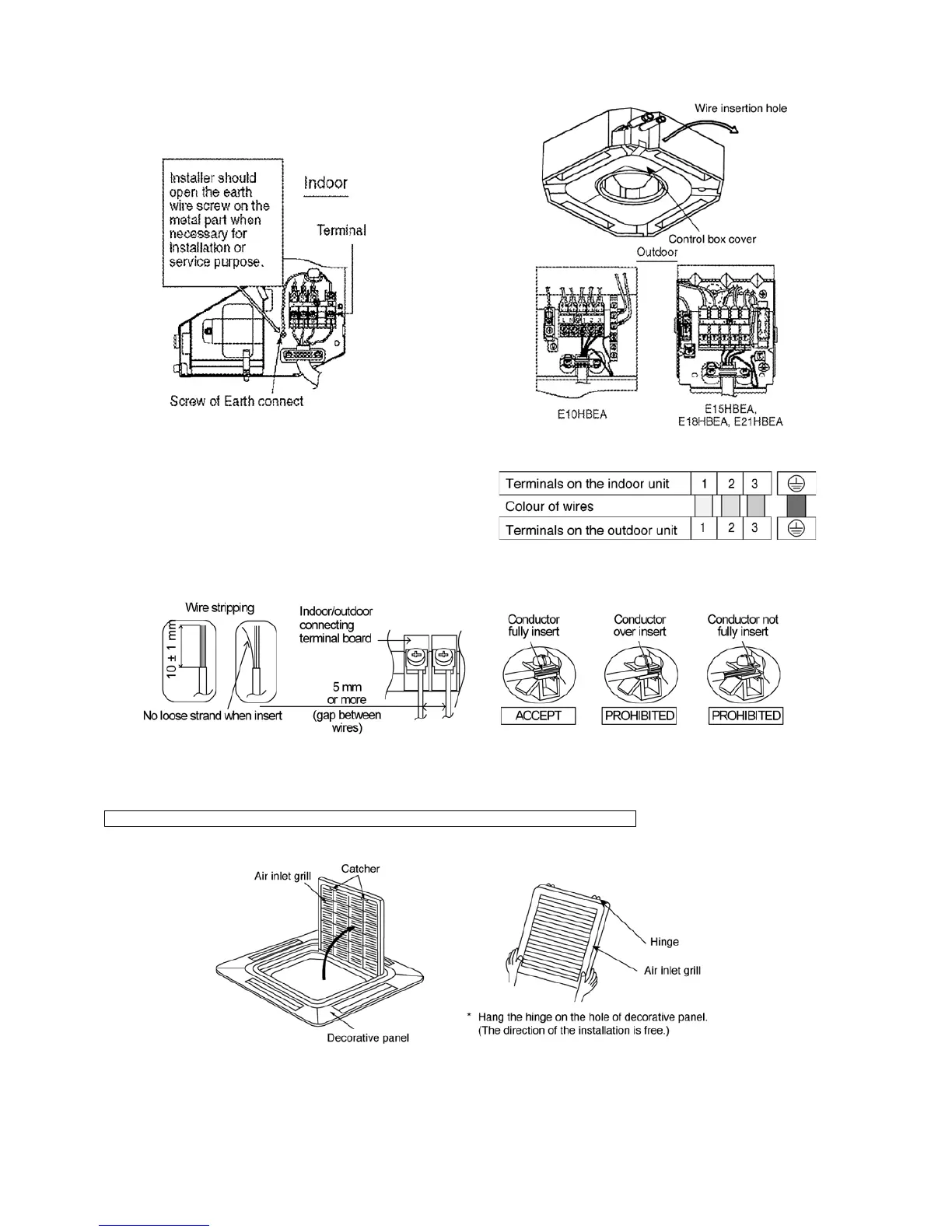

11.3.6. CONNECTING THE CABLE TO THE INDOOR
• Remove the mounting screw, remove the control box cover,
and then connect the wires by following the procedure given
in the illustration.
Earth lead wire shall be longer than other wires as shown in
the figure for the electrical safety in case of the slipping out of
the cord from anchorage.
11.3.6.1. WIRE STRIPPING AND CONNECTING REQUIREMENT
11.3.7. INSTALLATION OF DECORATIVE PANEL
1. Remove the air inlet grille by moving the catchers to center.
2. Fitting the decorative panel
• Temporarily secure the fixing screws (3 pcs.) before
fitting the decorative panel. (For temporarily securing the
front grille.)
• Place decorative panel on the screws (3 pcs.) before
fitting, move decorative panel as illustrated and tighten
all the screws (4 pcs.).
The decorative panel has its installation direction. Confirm the direction by displaying the piping side.
