13.14.2.2 Judge Sunlight Intensity
• Based on sunlight sensor output voltage, the sunlight intensity value will be computed and logged to sunlight
intensity database.

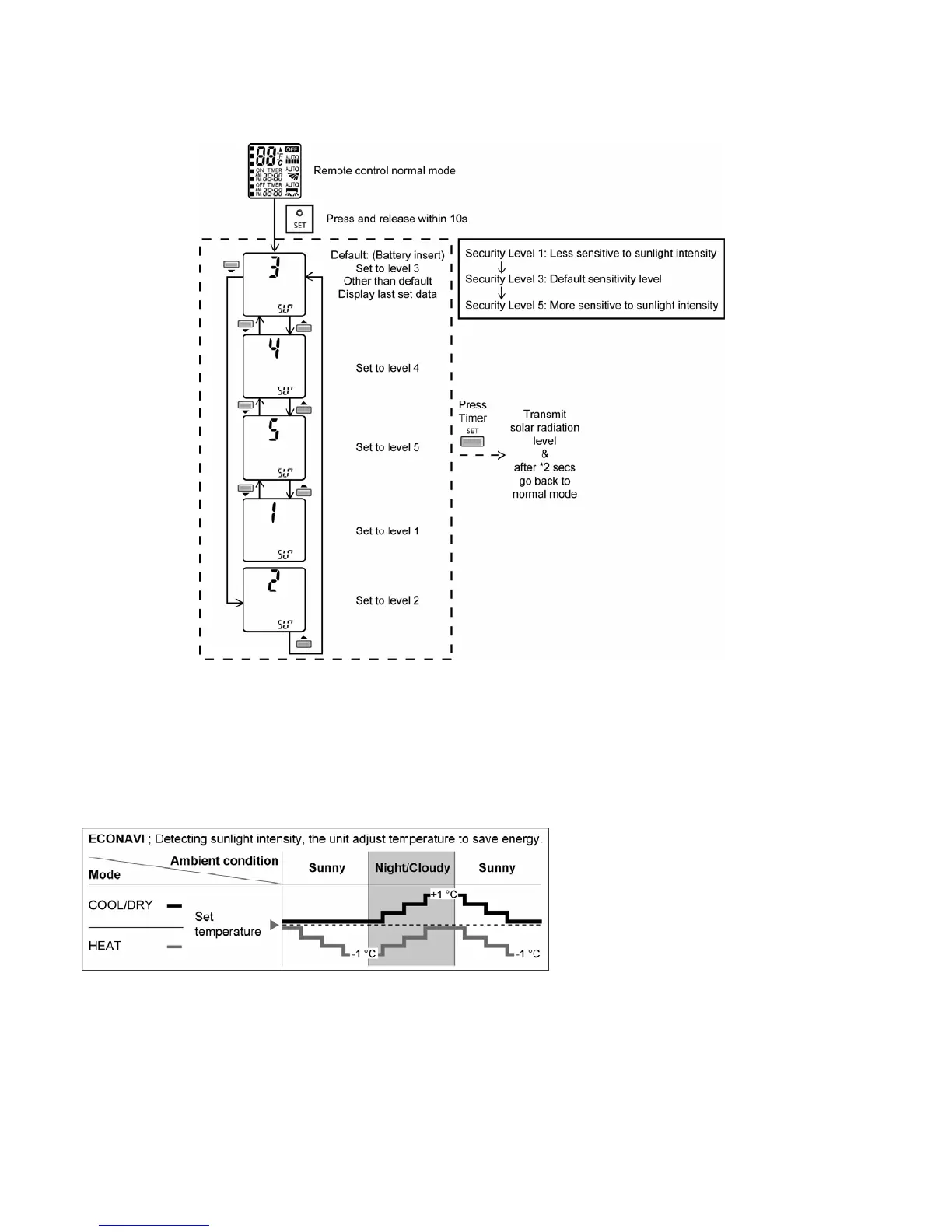

• The sunlight sensor sensitivity could be adjusted:
13.14.2.3 Judge Ambient Condition
• According to sunlight intensity over a period of time, the system will analyze the ambient condition is sunny,
cloudy or night.
13.14.2.4 Temperature Shift
• In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night.
