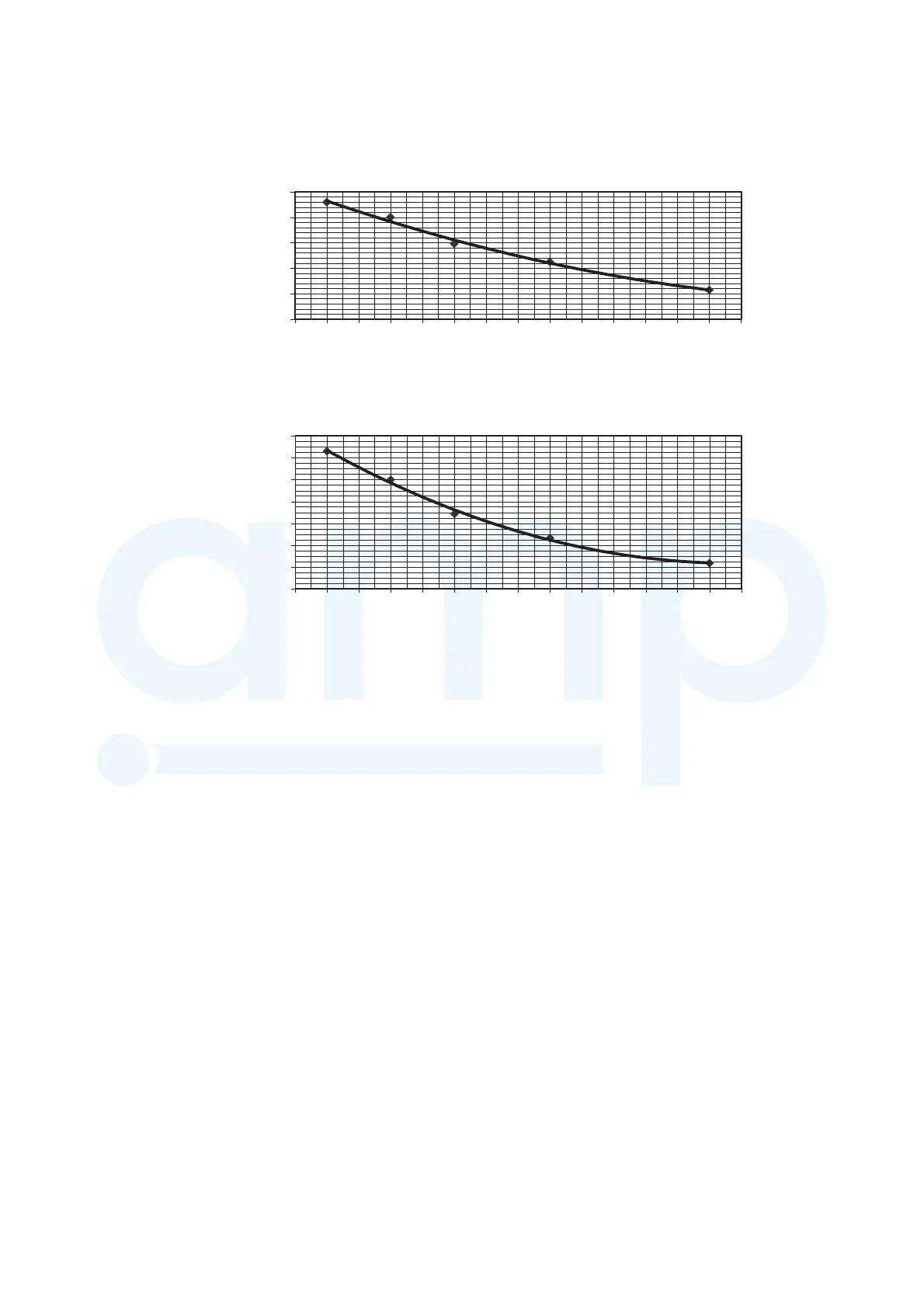

21.3 Piping Length Correction Factor
The characteristic of the unit has to be corrected in accordance with the piping length.
21.3.1 CS-TZ20TKEW CU-TZ20TKE CS-TZ25TKEW CU-TZ25TKE
CS-TZ35TKEW CU-TZ35TKE CS-TZ42TKEW CU-TZ42TKE
Cooling Capacity
Correction Factor
Heating Capacity
Correction Factor
Pipe Length (m)
Pipe Length (m)
0.92
0.94
0.96
0.98
1.00
1.02
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
0.90
0.92
0.94
0.96
0.98
1.00
1.02
1.04
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Note: The graphs show the factor after added right amount of additional refrigerant.
