Panasonic CS-TZ25TKEW Service Manual

78

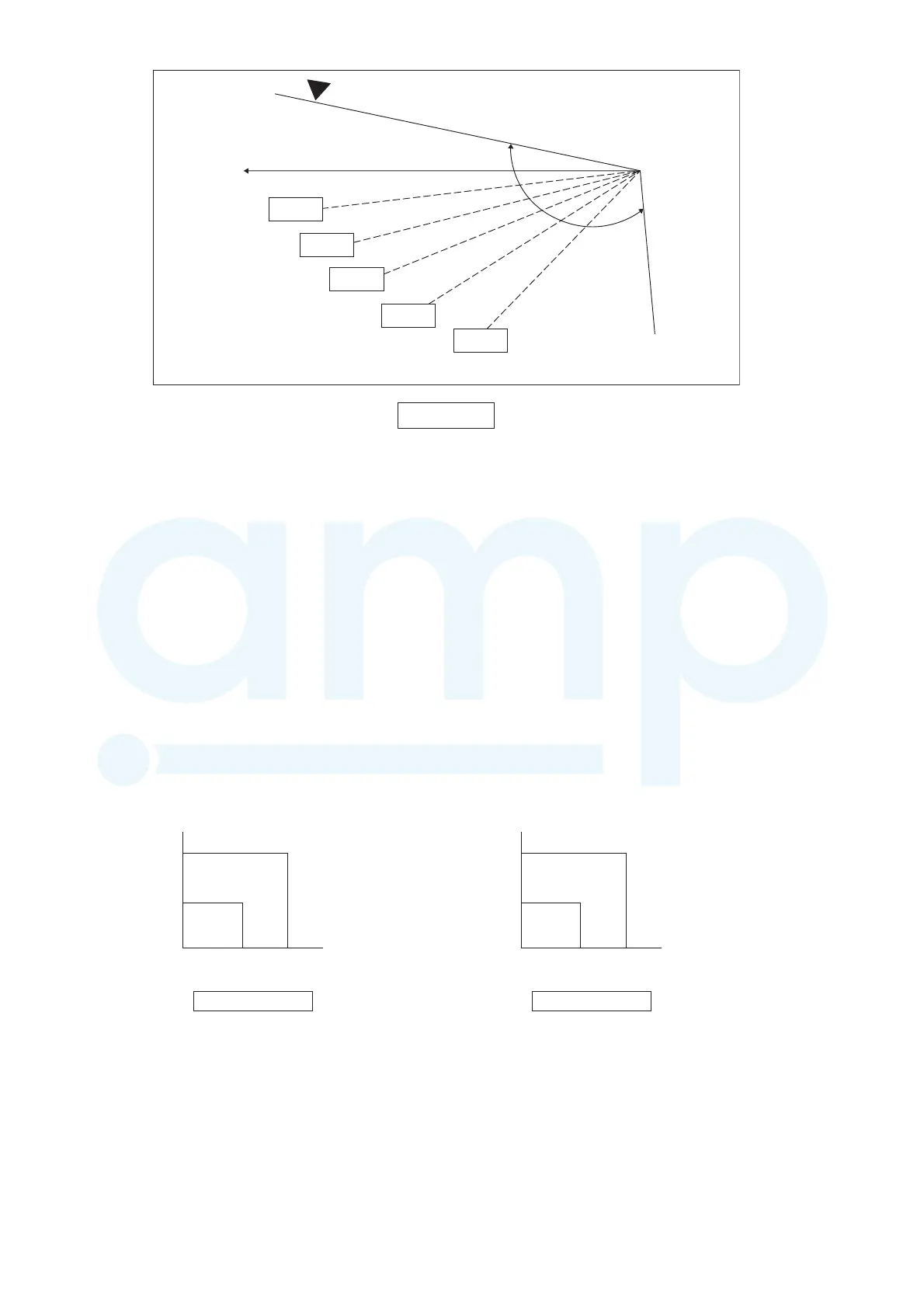

Side View (Outer Vane)
Stopper
Closed
Position
Step 1
Step 2
Step 3
Step 4
Step 5
Reference point
Figure 2
135º
* The horizontal vane angle tolerance is within +/- 5 degree.
14.4.2 Horizontal Airflow
 The horizontal airflow direction louver can be adjusted manually by hand.
14.5 Timer Control
 There are 2 sets of ON and OFF timer available to turn the unit ON or OFF at different preset time.
 If more than one timer had been set, the upcoming timer will be displayed and will activate in sequence.
14.5.1 ON Timer Control
 ON timer 1 and ON timer 2 can be set using remote control, the unit with timer set will start operate earlier than
the setting time.
This is to provide a comfortable environment when reaching the set ON time.
 60 minutes before the set time, indoor (at fan speed of Lo-) and outdoor fan motor start operate for 30 seconds to
determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting
time.
 From the above judgment, the decided operation will start operate earlier than the set time as shown below.
Indoor intake air
temperature (
o
C)
Outdoor air
temperature (
o
C)
30
30 35
Cooling/Soft Dry
(
o
C)
10 min
15 min
5 min
25
Indoor intake air
temperature (
o
C)
Outdoor air
temperature (
o
C)
15
05
Heating
(
o
C)
30 min
25 min
35 min
5
14.5.2 OFF Timer Control
OFF timer 1 and OFF timer 2 can be set using remote control, the unit with timer set will stop operate at set time.
