Panasonic CS-TZ25ZKEW

107

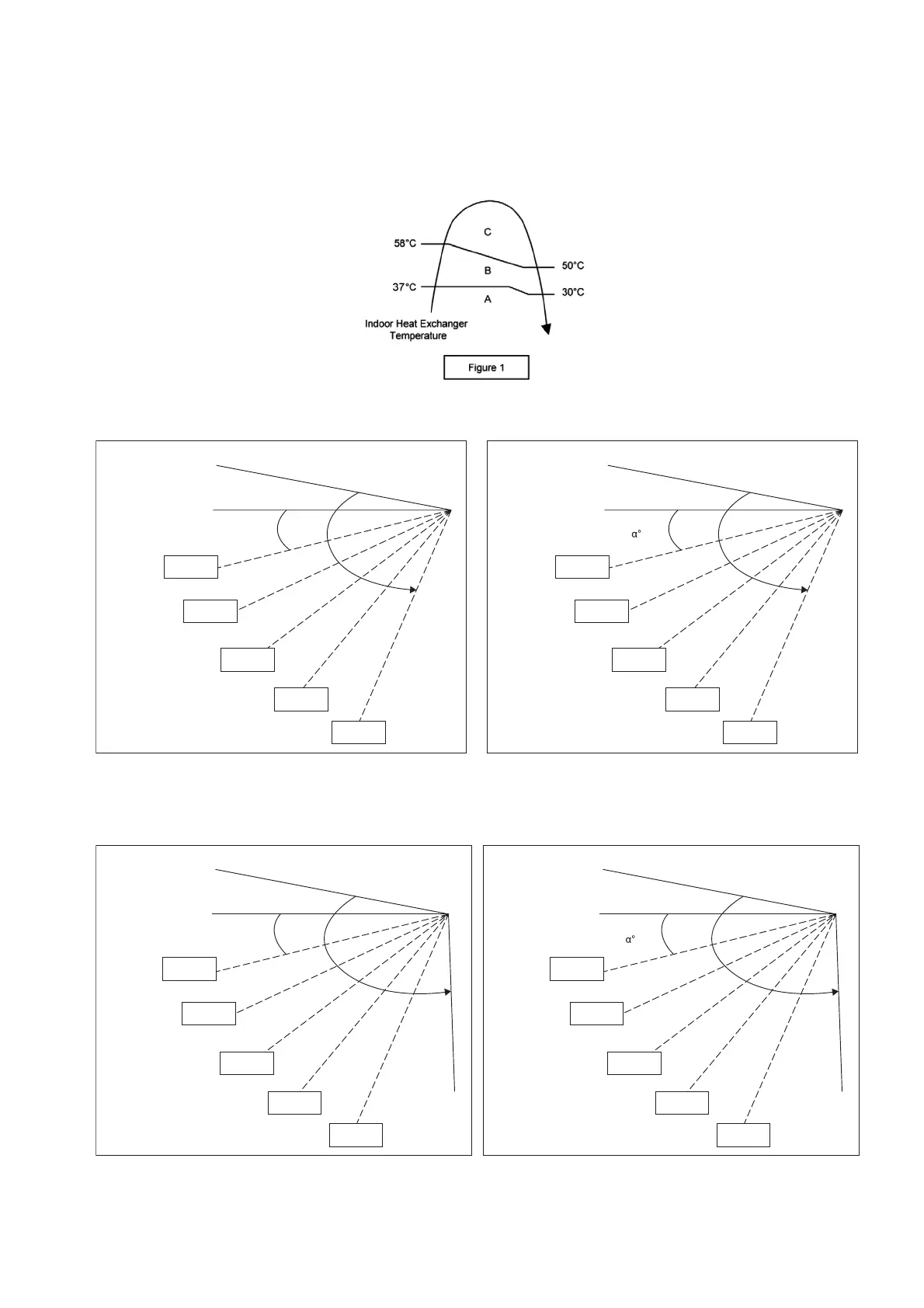

1 Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the
angles as stated above. For heating mode operation, the angle of the vane depends on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop. When the air conditioner
is stopped using remote control, the vane will shift to close position.
2 Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above
and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control,
the vane will shift to close position.
(TZ20/25/35/42/50ZK RZ25/35/50ZK)
* The horizontal vane angle tolerance is within +/- 5 degree.
(TZ60/71ZZK)
* The horizontal vane angle tolerance is within +/- 5 degree.
Closed position/reference position
Reference datum
(Horizontal)
β°
Step 5
Step 4
Step 3
Step 2
Step 1
Closed position/reference position
Reference datum
(Horizontal)
Step 5
Step 4
Step 3
Step 2
Step 1
Reset position
Closed position
Reference datum
(Horizontal)
Step 5
Step 4
Step 3
Step 2
Step 1
β°
Reset position
Closed position
Reference datum
(Horizontal)
Step 5
Step 4
Step 3
Step 2
Step 1
