12.4 Indoor Unit

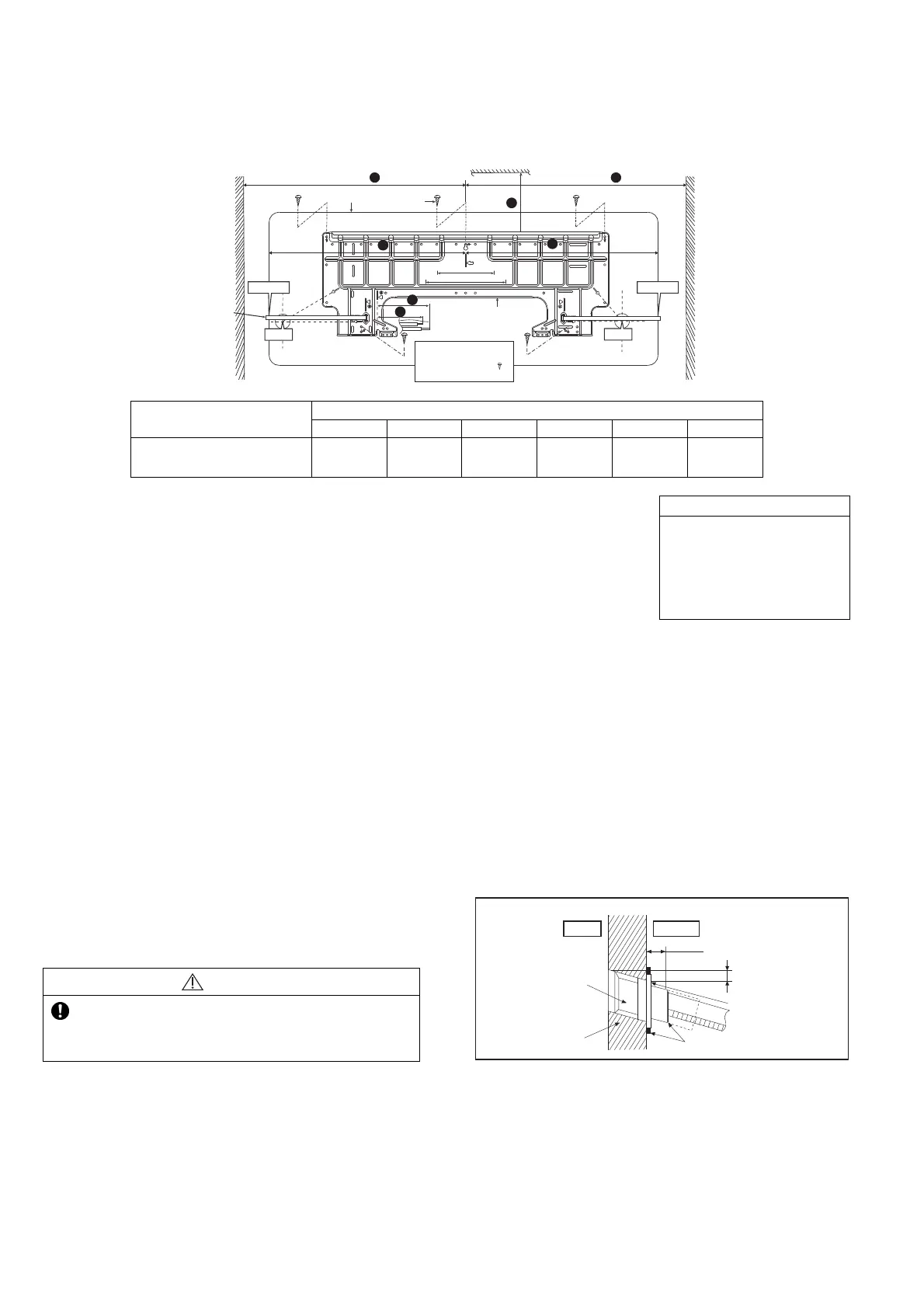

12.4.1 How to Fix Installation Plate
The mounting wall shall be strong and solid enough to prevent it from vibration.
Model
Dimension
1 2 3 4 5 6
TZ60***, TZ71*** 587 mm 70 mm ( * ) 537 mm 503 mm 226 mm 278 mm
The center of installation plate should be at more than 1 at right and left of the wall.
The distance from installation plate edge to ceiling should more than 2.
From installation plate center to unit’s left side is 3.
From installation plate center to unit’s right side is 4.
○
B
: For left side piping, piping connection for liquid should be about 5 from this line.
: For left side piping, piping connection for gas should be about 6 from this line.
Dimension 2
(*) :-
If holder at the rear of chassis
(Refer column “12.4.3 Indoor
Unit Installation”) need to be
used to prop up the unit, this
distance shall be 85 mm or
more.
1 Mount the installation plate on the wall with 5 screws or more (at least 5 screws).
(If mounting the unit on the concrete wall, consider using anchor bolts.)
o Always mount the installation plate horizontally by aligning the marking-off line with the thread and using
a level gauge.
2 Drill the piping plate hole with ø70 mm hole-core drill.
o Line according to the left and right side of the installation plate.
The meeting point of the extended line is the center of the hole.
Another method is by putting measuring tape at position as shown in the diagram above.
The hole center is obtained by measuring the distance namely 210 mm for left hole and 150 mm for right
hole.
o Drill the piping hole at either the right or the left and the hole should be slightly slanting to the outdoor
side.
12.4.2 To Drill a Hole in the Wall and Install a Sleeve of Piping
1 Insert the piping sleeve to the hole.
2 Fix the bushing to the sleeve.
3 Cut the sleeve until it extrudes about 15 mm
from the wall.
CAUTION
When the wall is hollow, please be sure to use
the sleeve for tube assembly to prevent dangers
caused by mice biting the connection cable.
4 Finish by sealing the sleeve with putty or
caulking compound at the final stage.
PIPE HOLE
CENTER
PIPE HOLE
CENTER
4
210mm
TO HOLE
CENTER
150mm
TO HOLE
CENTER
Ceiling
Wall Wall
Installation plate
1
2
screw
More than
1
More than
1
Measuring
Tape
Indoor unit
276 mm
150 mm
210 mm
247 mm
150 mm
More
than
2
For best strength of INDOOR
unit installation, it is highly
recommended to locate “
”
at 5 position as shown.
3
5
6
4
210 mm
15 mm
Putty or caulking compound
ø70 mm
through hole
Indoor
Outdoor
Sleeve for tube
assembly
Approx. 5 - 7 mm
Bushing for
tube assembly
Wall
