174
WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.

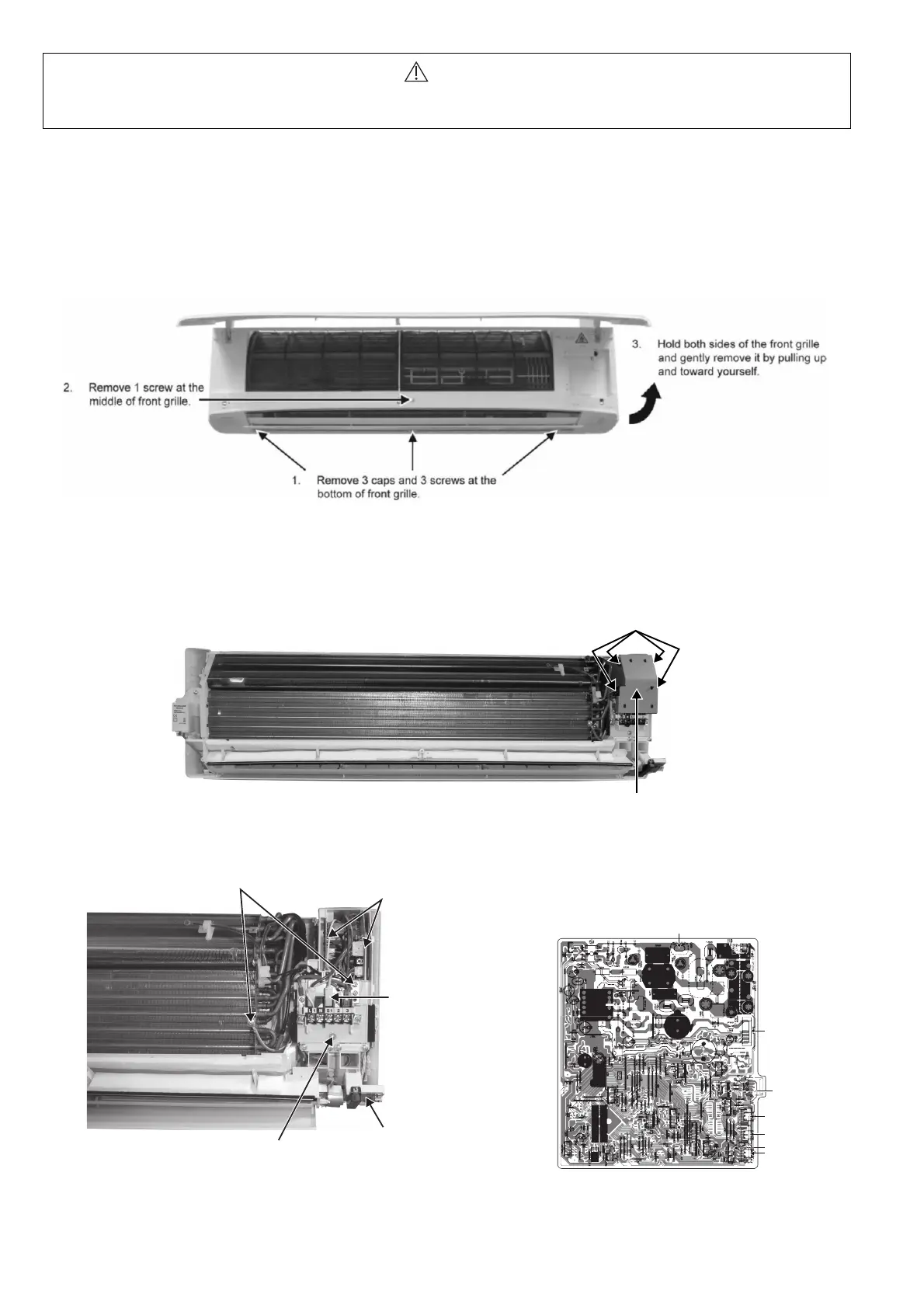

19.2 CS-TZ60ZKEW CS-TZ71ZKEW
19.2.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures
19.2.1.1 To Remove Front Grille
Figure 1
19.2.1.2 To Remove Electronic Controller
Figure 2
Figure 3 Figure 4
4 Hooks (left and
right hand side)
4. Remove control board
cover by releasing 4 hooks.
5. Remove earth wires 2 screws. 10. Detach all connectors as labelled from the
electronic controller. Then pull out the main
and sub electronic controller gently.
9. Pull out the main and
sub electronic controller
halfway.
6. Detach lead wires
ACL501 (Brown),
AC302 (Yellow)
and AC304 (Red)
from the terminal
board.
7. Detach CN-DISP connectors
from indicator complete.
8. Remove screw to remove
terminal board complete.
AC303
CN-FM
CN-STM2
CN-STM3
CN-STM1
CN-TH
CN-WLAN
To Next Page
