21. Service Data
Service data provided are based on the air conditioner running under rated frequency during forced cooling / forced
heating mode.
21.1 Cool Mode Outdoor Air Temperature Characteristic
Condition
- Indoor room temperature: 27°C Dry Bulb/19°C Wet Bulb
- Unit setting: Standard piping length, forced cooling at 16°C, Hi fan
- Compressor frequency: Rated for cooling operation
- Piping length: 5m
- Voltage: 230V

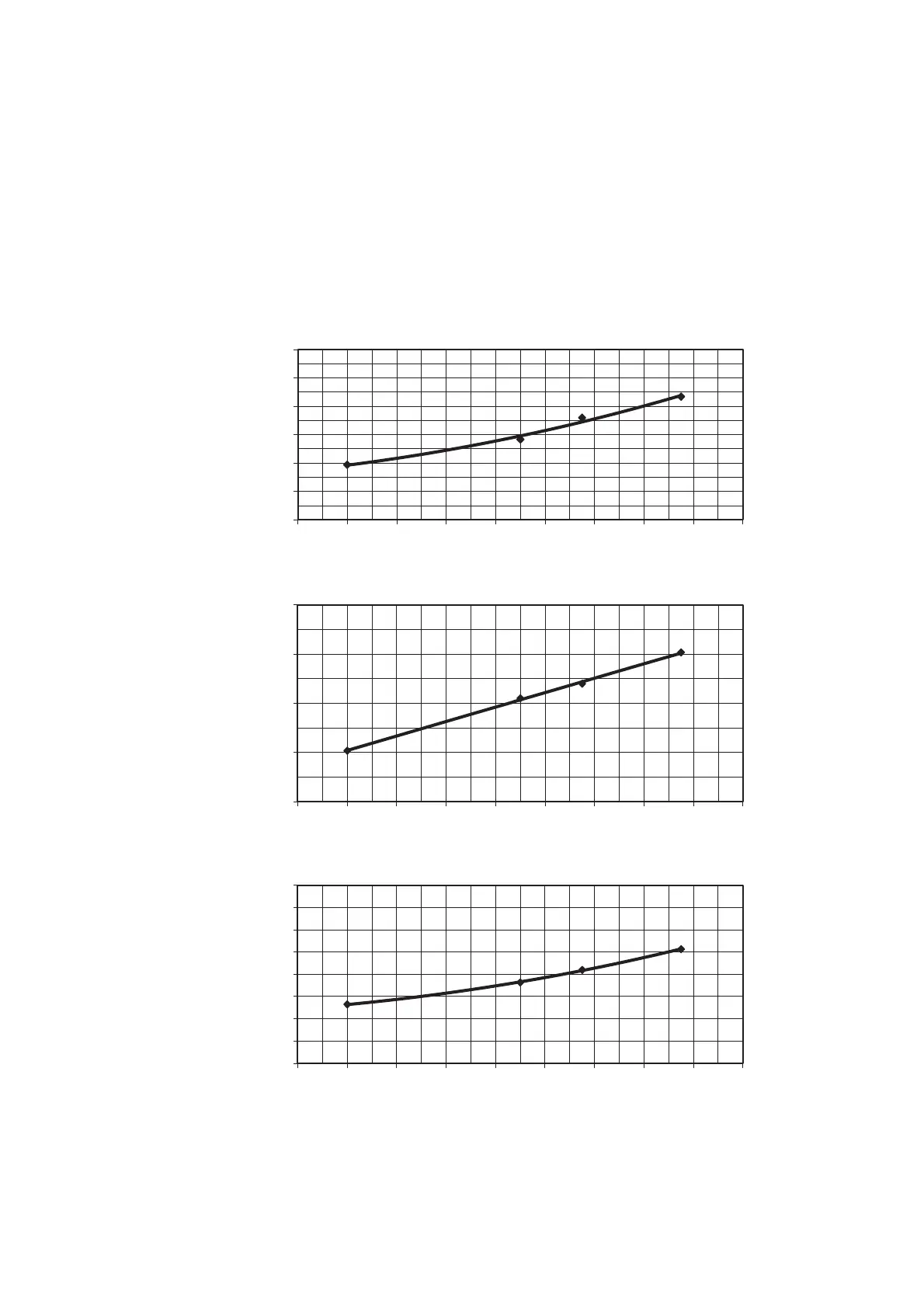

21.1.1 CS-TZ20ZKEW CU-TZ20ZKE
Indoor Discharge
Air Temperature (°C)
Outdoor Air Temperature (°C)
Low Pressure (MPa)
Outdoor Air Temperature (°C)
Current (A)
Outdoor Air Temperature (°C)
12 16 20 24 28 32 36 40 44 48
12 16 20 24 28 32 36 40 44 48
12 16 20 24 28 32 36 40 44 48
1.00
1.50
2.00
2.50
3.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
0.90
0.95
1.00
1.05
1.10
1.15
1.20
1.25
1.30
