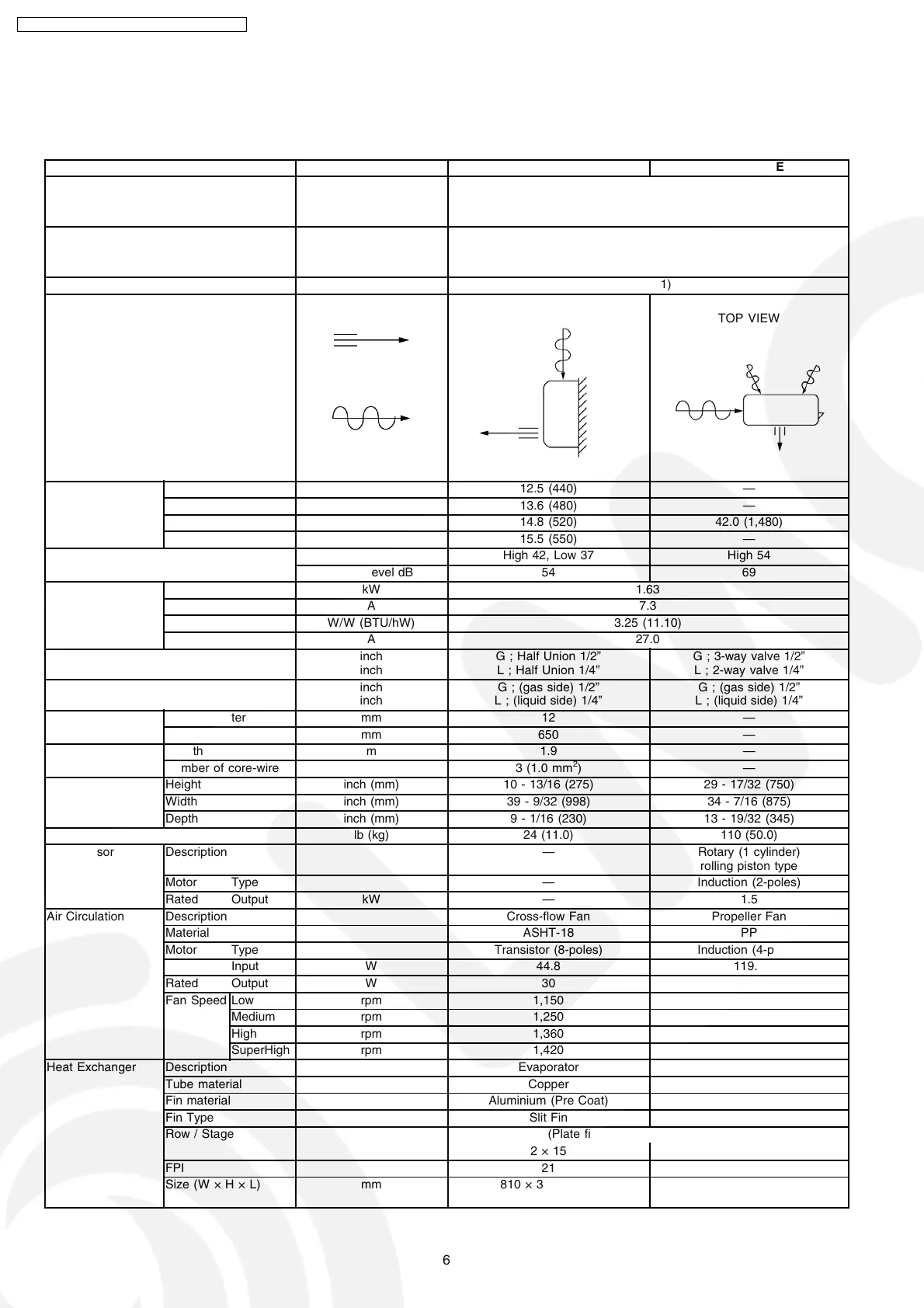

3 Product Specifications
3.1. CS-V18DKE CU-V18DKE
Unit CS-V18DKE CU-V18DKE
Power Source (Phase, Voltage, Cycle) ø,V,Hz Single, 230, 50
Cooling Capacity kW (BTU/h) 5.30 (18,100)
Moisture Removal l/h (Pint/h) 2.9 (6.1)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) 12.5 (440)
Me m
3
/min (cfm) 13.6 (480)
Hi m
3
/min (cfm) 14.8 (520) 42.0 (1,480)
SHi m
3
/min (cfm) 15.5 (550)
Noise Level dB (A) High 42, Low 37 High 54
Power level dB 54 69
Electrical Data Input Power kW 1.63
Running Current A 7.3
EER W/W (BTU/hW) 3.25 (11.10)
Starting Current A 27.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2
L ; Half Union 1/4
G ; 3-way valve 1/2
L ; 2-way valve 1/4
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2
L ; (liquid side) 1/4
G ; (gas side) 1/2
L ; (liquid side) 1/4
Drain
Hose
Inner diameter mm 12
Length mm 650
Power Cord Length m 1.9
Number of core-wire 3 (1.0 mm
2
)
Dimensions Height inch (mm) 10 - 13/16 (275) 29 - 17/32 (750)
Width inch (mm) 39 - 9/32 (998) 34 - 7/16 (875)
Depth inch (mm) 9 - 1/16 (230) 13 - 19/32 (345)
Net Weight lb (kg) 24 (11.0) 110 (50.0)
Compressor Description Rotary (1 cylinder)
rolling piston type
Motor Type Induction (2-poles)
Rated Output kW 1.5
Air Circulation Description Cross-flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-poles) Induction (4-poles)
Input W 44.8 119.6
Rated Output W 30 50
Fan Speed Low rpm 1,150
Medium rpm 1,250
High rpm 1,360 720
SuperHigh rpm 1,420
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 2×34
FPI 21 16
Size (W × H × L) mm 810 × 315 × 25.4 850.5
870.5
× 714.0 × 25.4
6
CS-V18DKE CU-V18DKE / CS-V24DKE CU-V24DKE
