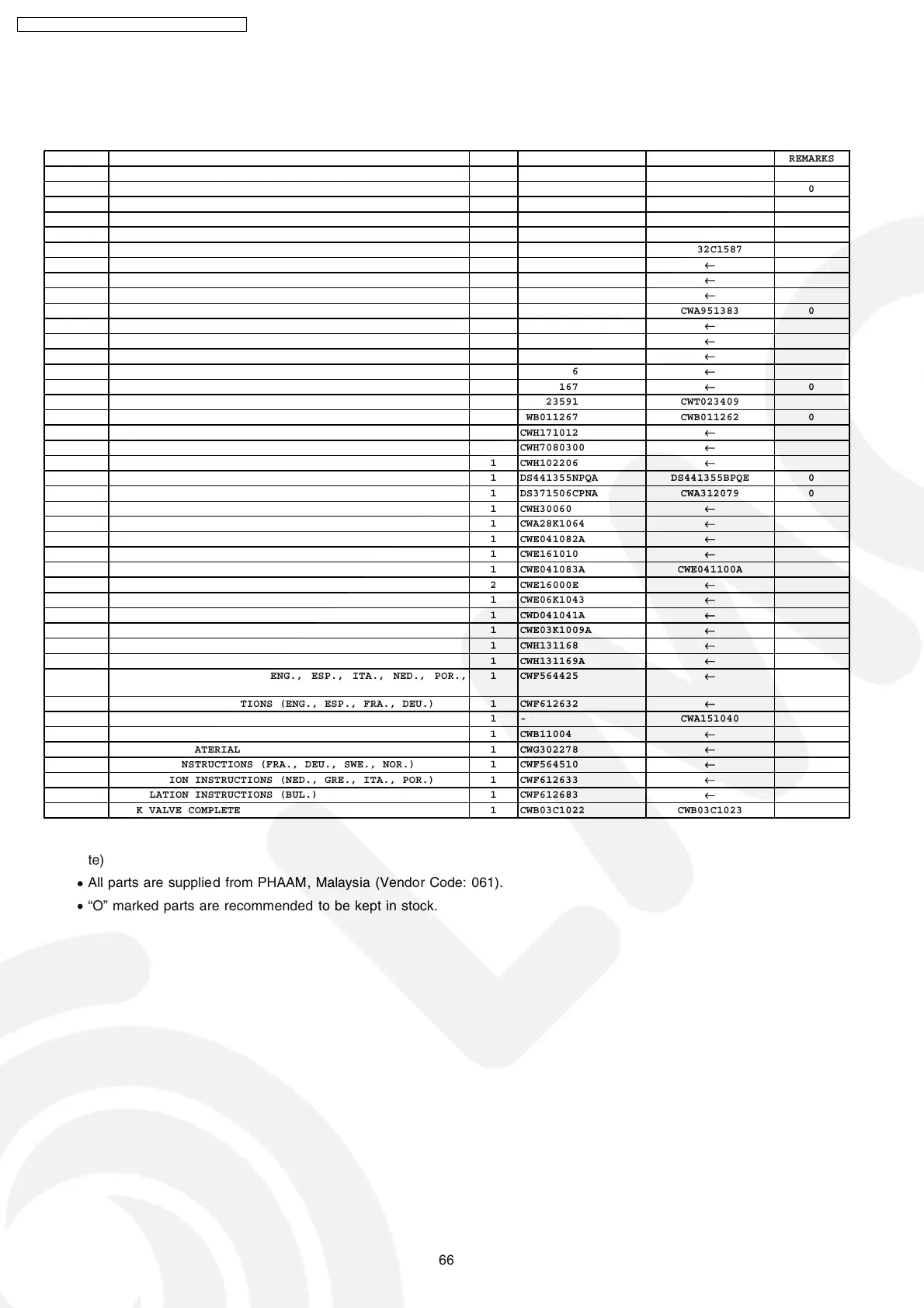

18 Replacement Parts List (Outdoor Unit)
18.1. CU-V18DKE CU-V24DKE
REF. NO. PART NAME & DESCRIPTION QTY. CU-V18DKE CU-V24DKE REMARKS
1 CHASSY ASS’Y 1 CWD50K2115 CWD50K2100
2 COMPRESSOR 1 5KS205DAH21 5JS315DAA21 0
3 ANTI - VIBRATION BUSHING 3 CWH50055
←
4 NUT - COMPRESSOR MOUNT 3 CWH4582065
←
5 PACKING 3 CWB81043
←
6 CONDENSER 1 CWB32C1588 CWB32C1587
7 SOUND PROOF BOARD ASS’Y 1 CWH151051
←
8 FAN MOTOR BRACKET 1 CWD541065
←
9 SCREW - FAN MOTOR BRACKET 2 CWH551060
←
10 FAN MOTOR 1 CWA951360 CWA951383 0
11 SCREW - FAN MOTOR MOUNT 3 CWH55252
←
12 PROPELLER FAN ASS’Y 1 CWH03K1017
←
13 NUT - PROPELLER FAN 1 CWH561038
←
14 HOLDER COUPLING ASS’Y 1 CWH351036
←
15 2-WAY VALVE (LIQUID) 1 CWB021167
←
0
16 TUBE ASS’Y (CAPILLARY TUBE & STRAINER) 1 CWT023591 CWT023409
17 3-WAY VALVE (GAS) 1 CWB011267 CWB011262 0
18 TERMINAL COVER 1 CWH171012
←
19 NUT - TERMINAL COVER 1 CWH7080300
←
20 CONTROL BOARD CASING 1 CWH102206
←
21 CAPACITOR - FAN MOTOR 1 DS441355NPQA DS441355BPQE 0
22 CAPACITOR - COMPRESSOR 1 DS371506CPNA CWA312079 0
23 HOLDER CAPACITOR 1 CWH30060
←
24 TERMINAL BOARD ASS’Y 1 CWA28K1064
←
25 CABINET SIDE PLATE (L) 1 CWE041082A
←
26 HANDLE 1 CWE161010
←
27 CABINET SIDE PLATE (R) 1 CWE041083A CWE041100A
28 HANDLE 2 CWE16000E
←
29 CABINET FRONT PLATE 1 CWE06K1043
←
30 WIRE NET 1 CWD041041A
←
31 CABINET TOP PLATE ASS’Y 1 CWE03K1009A
←
32 CONTROL BOARD COVER 1 CWH131168
←
33 CONTROL BOARD COVER 1 CWH131169A
←
34 OPERATION INSTRUCTIONS (ENG., ESP., ITA., NED., POR.,
GRE., BUL.)
1 CWF564425
←
35 INSTALLATION INSTRUCTIONS (ENG., ESP., FRA., DEU.) 1 CWF612632
←
36 THERMOSTAT 1 - CWA151040
37 STRAINER 1 CWB11004
←
38 SOUND PROOF MATERIAL 1 CWG302278
←
39 OPERATION INSTRUCTIONS (FRA., DEU., SWE., NOR.) 1 CWF564510
←
40 INSTALLATION INSTRUCTIONS (NED., GRE., ITA., POR.) 1 CWF612633
←
41 INSTALLATION INSTRUCTIONS (BUL.) 1 CWF612683
←
42 CHECK VALVE COMPLETE 1 CWB03C1022 CWB03C1023
(Note)
•
All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).
•
“O” marked parts are recommended to be kept in stock.
66
CS-V18DKE CU-V18DKE / CS-V24DKE CU-V24DKE
