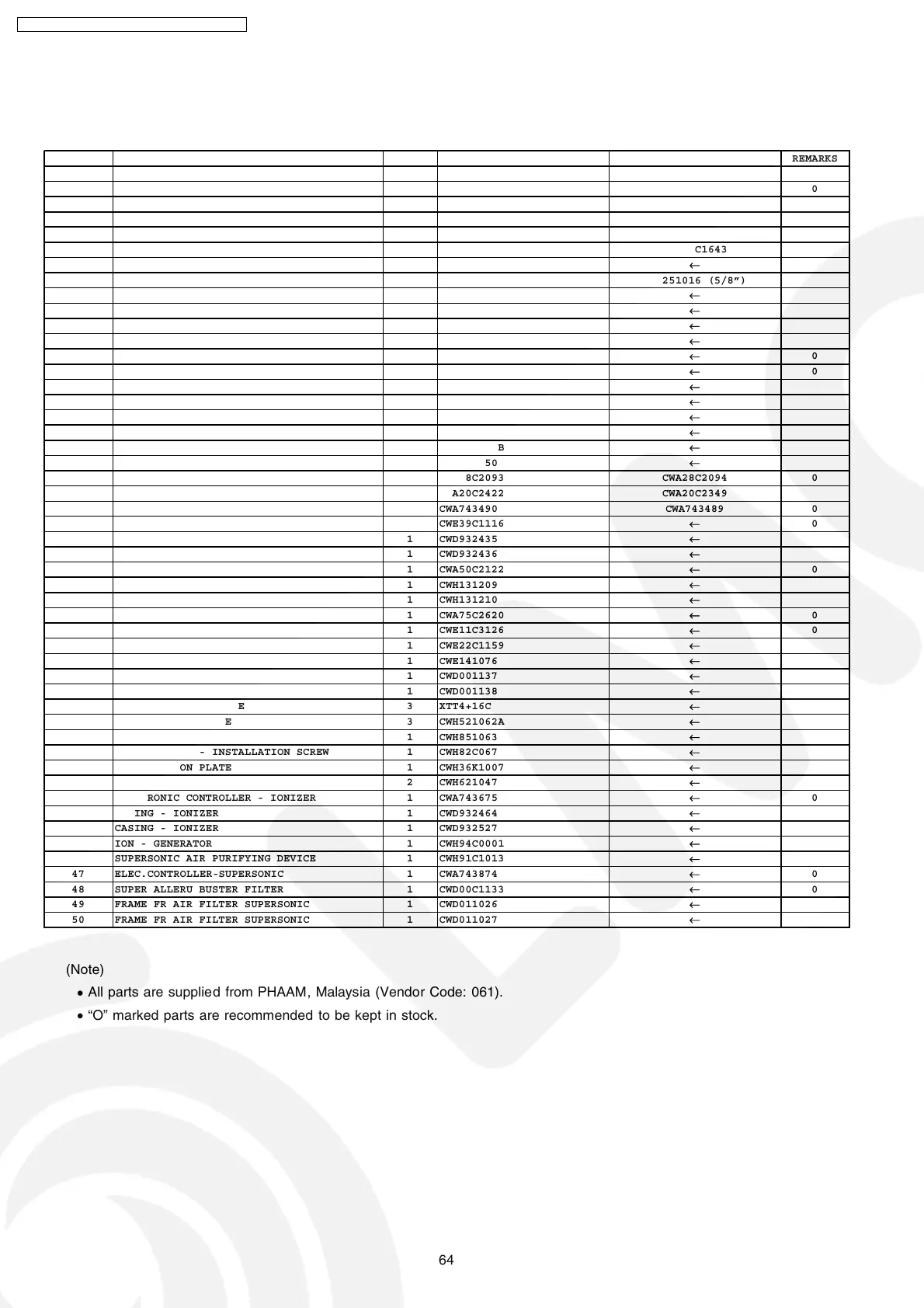

16 Replacement Parts List (Indoor Unit)
16.1. CS-V18DKE CS-V24DKE
REF. NO. PART NAME & DESCRIPTION QTY. CS-V18DKE CS-V24DKE REMARKS
1 CHASSY COMPLETE 1 CWD50C1382
←
2 FAN MOTOR 1 CWA981149
←
0
3 CROSS FLOW FAN COMPLETE 1 CWH02C1010
←
4 SCREW - CROSS FLOW FAN 1 CWH4580304
←
5 BEARING ASS’Y 1 CWH64K007
←
6 EVAPORATOR 1 CWB30C1641 CWB30C1643
7 FLARE NUT 1 CWT25086 (1/4”)
←
8 FLARE NUT 1 CWT25096 (1/2”) CWT251016 (5/8”)
9 HOLDER SENSOR 1 CWH32143
←
10 DISCHARGE GRILLE COMPLETE 1 CWE20C2345
←
11 VERTICAL VANE 15 CWE241088
←
12 CONNECTING BAR 1 CWE261025
←
13 AIR SWING MOTOR 1 CWA98260
←
0
14 AIR SWING MOTOR 1 CWA98K1008
←
0
15 LEAD WIRE - FAN MOTOR 2 CWA67C3731
←
16 HORIZONTAL VANE 1 CWE241152A
←
17 HORIZONTAL VANE 1 CWE241153A
←
18 CAP - DRAIN TRAY 1 CWH52C1001
←
19 BACK COVER CHASSIS 1 CWD932162B
←
20 CONTROL BOARD CASING 1 CWH102250
←
21 TERMINAL BOARD COMPLETE 1 CWA28C2093 CWA28C2094 0
22 POWER SUPPLY CORD 1 CWA20C2422 CWA20C2349
23 ELECTRONIC CONTROLLER - MAIN 1 CWA743490 CWA743489 0
24 INDICATOR & RECEIVER COMPLETE 1 CWE39C1116
←
0
25 INDICATOR HOLDER 1 CWD932435
←
26 INDICATOR HOLDER 1 CWD932436
←
27 SENSOR COMPLETE 1 CWA50C2122
←
0
28 CONTROL BOARD TOP COVER 1 CWH131209
←
29 CONTROL BOARD FRONT COVER 1 CWH131210
←
30 REMOTE CONTROL COMPLETE 1 CWA75C2620
←
0
31 FRONT GRILLE COMPLETE 1 CWE11C3126
←
0
32 INTAKE GRILLE COMPLETE 1 CWE22C1159
←
33 GRILLE DOOR 1 CWE141076
←
34 AIR FILTER (L) 1 CWD001137
←
35 AIR FILTER (R) 1 CWD001138
←
36 SCREW - FRONT GRILLE 3 XTT4+16C
←
37 CAP - FRONT GRILLE 3 CWH521062A
←
38 DRAIN HOSE 1 CWH851063
←
39 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C067
←
40 INSTALLATION PLATE 1 CWH36K1007
←
41 FULCRUM 2 CWH621047
←
42 ELECTRONIC CONTROLLER - IONIZER 1 CWA743675
←
0
43 CASING - IONIZER 1 CWD932464
←
44 CASING - IONIZER 1 CWD932527
←
45 ION - GENERATOR 1 CWH94C0001
←
46 SUPERSONIC AIR PURIFYING DEVICE 1 CWH91C1013
←
47 ELEC.CONTROLLER-SUPERSONIC 1 CWA743874
←
0
48 SUPER ALLERU BUSTER FILTER 1 CWD00C1133
←
0
49 FRAME FR AIR FILTER SUPERSONIC 1 CWD011026
←
50 FRAME FR AIR FILTER SUPERSONIC 1 CWD011027
←
(Note)
•
All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).
•
“O” marked parts are recommended to be kept in stock.
64
CS-V18DKE CU-V18DKE / CS-V24DKE CU-V24DKE
