– 5 –
AIR SWING
MANUAL
TEMP
MED
FAN
FAN
SPEED
OPE-
RATION
C
LOCAL
TIMER
OFF/ON
OPERATION
FILTER RESET
AUTO
MANUAL
TEST RUN
CLOCK
RESET ADDRESS SET
AIR SWING
FAN SPEED
OPERATION
AUTO
TIMER
ADDRESS
COOL
SELECT
Outdoor unit

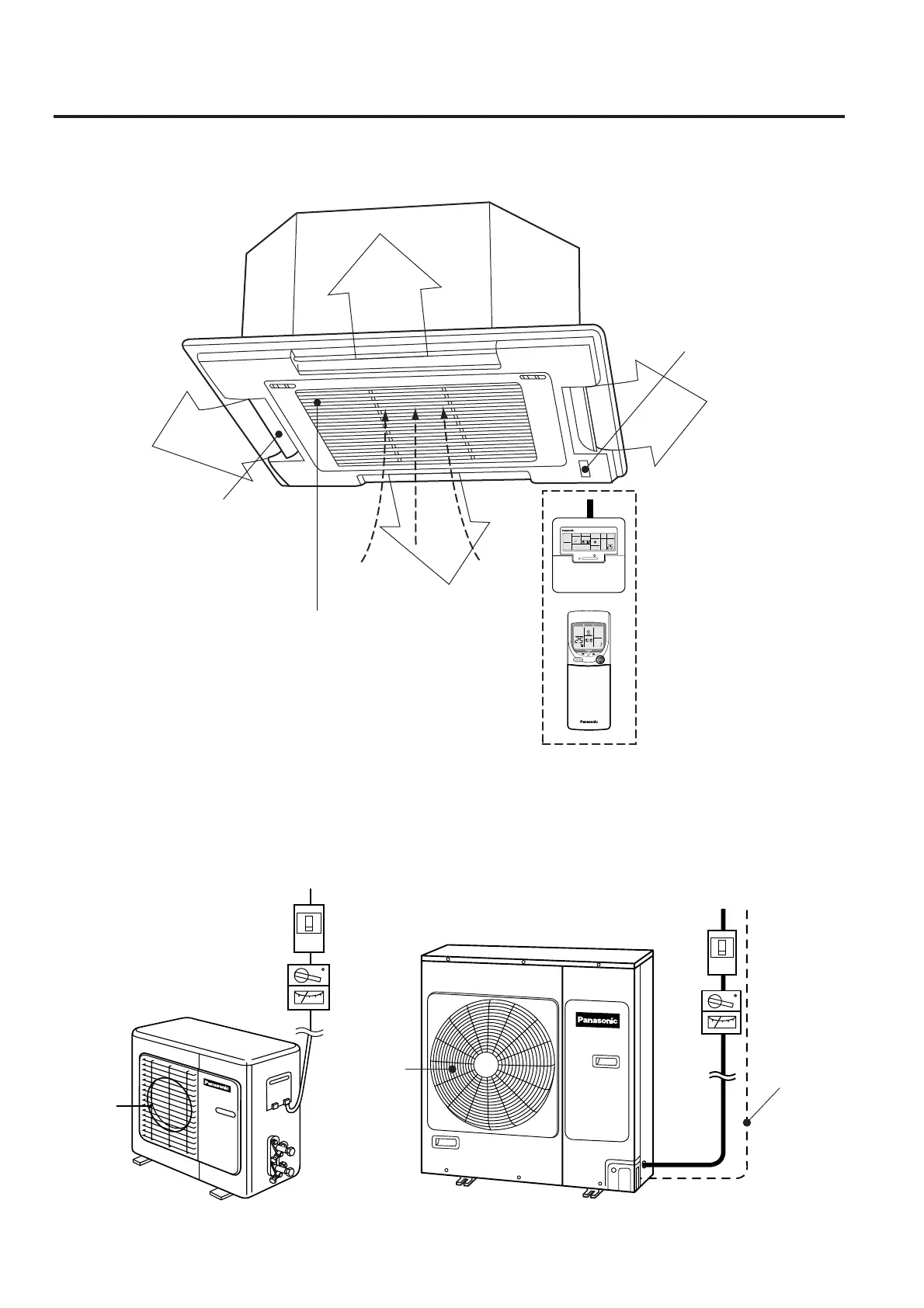

3. NAME OF EACH PART (MAIN UNIT)
Indoor unit
Earth
Circuit
breaker
Current leakage
breaker
Power supply
Fan guard
(air outlet)
Rear
(air inlet)
Position for mounting
of ray receiver
Wired remote control
(Refer to page 6 for operation
details.)
Wireless remote control
(Refer to page 10 for
operation details.)
NOTE : Either one of the remote control can be
used.
OR
Outlet grille (4 places)
Air is discharged from here.
(Refer to page 9 or 14 for
details on adjustment
methods.)
Inlet grille
Air is drawn into the indoor unit from here.
Air filter (attached to the inlet grille)
The filter helps to clean the air by
capturing dust and other particles from the
surrounding. (Refer to page 16 for details
on cleaning.)
The illustration above shows an example of outdoor unit
of model CU-W24BBP5.
The illustration above shows an example of outdoor unit
of model CU-W14BBP5.
Fan guard
(air outlet)
Circuit
breaker
Current leakage
breaker
Power supply
